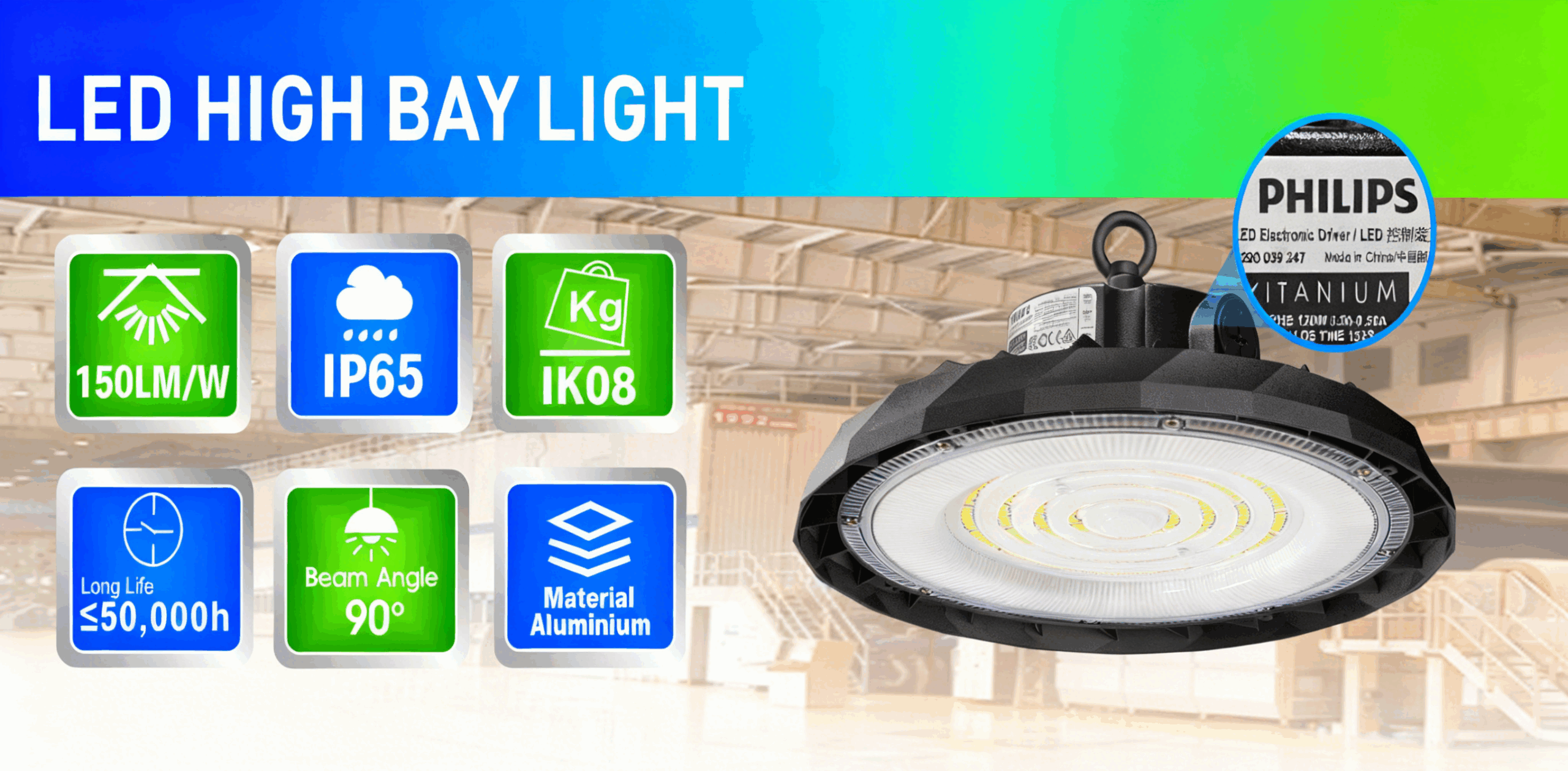

LED High Bay Light

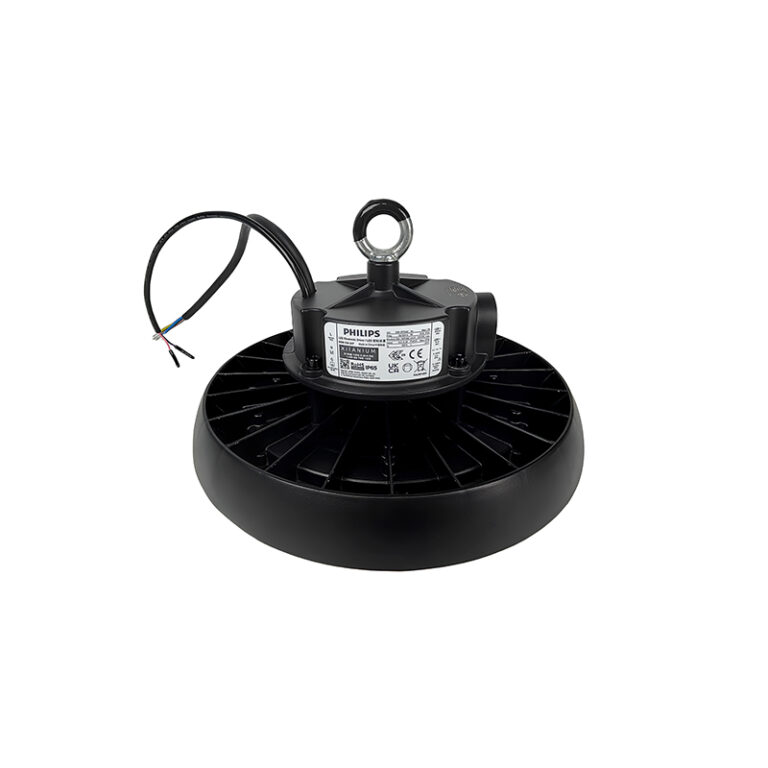

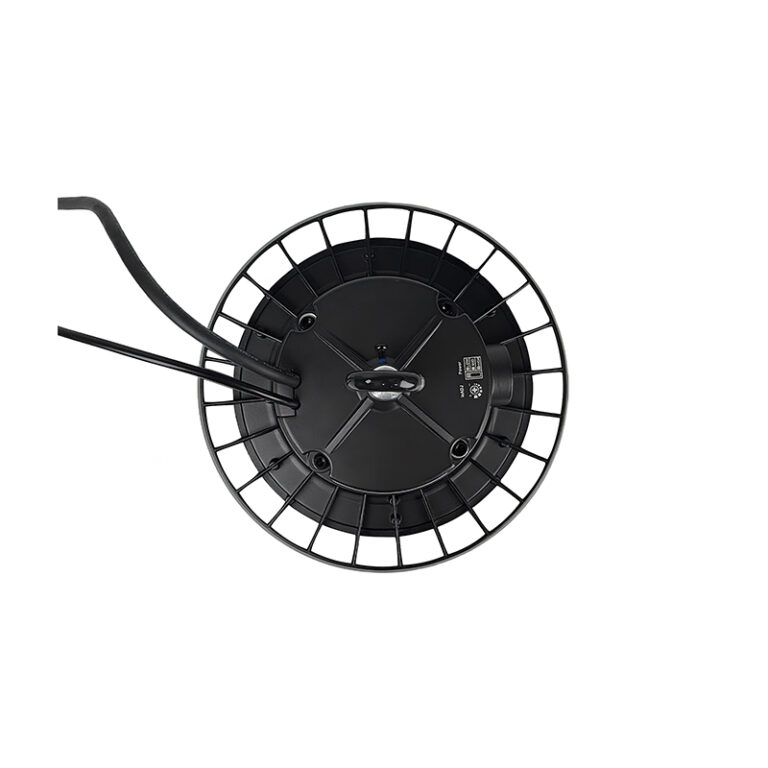

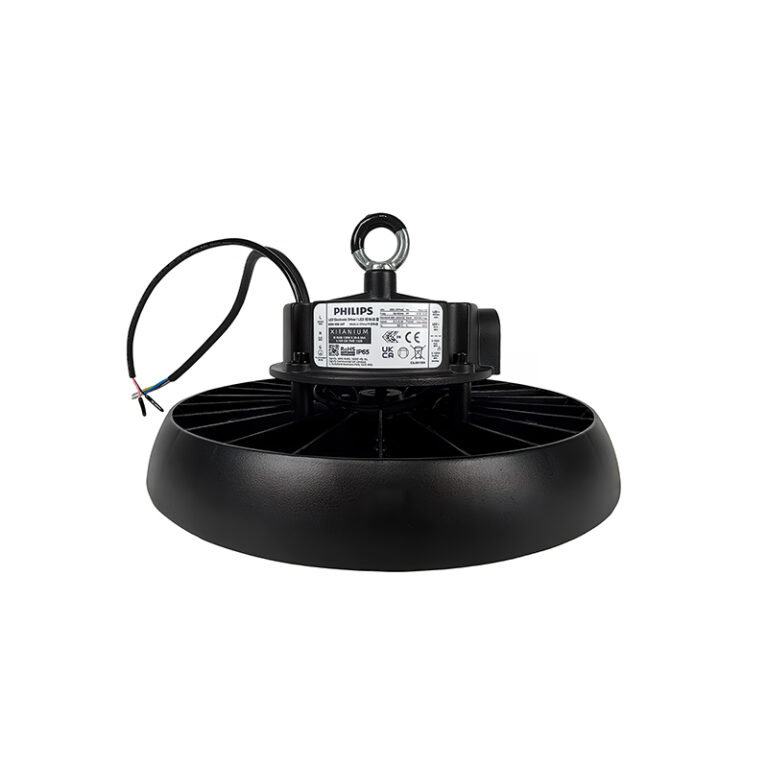

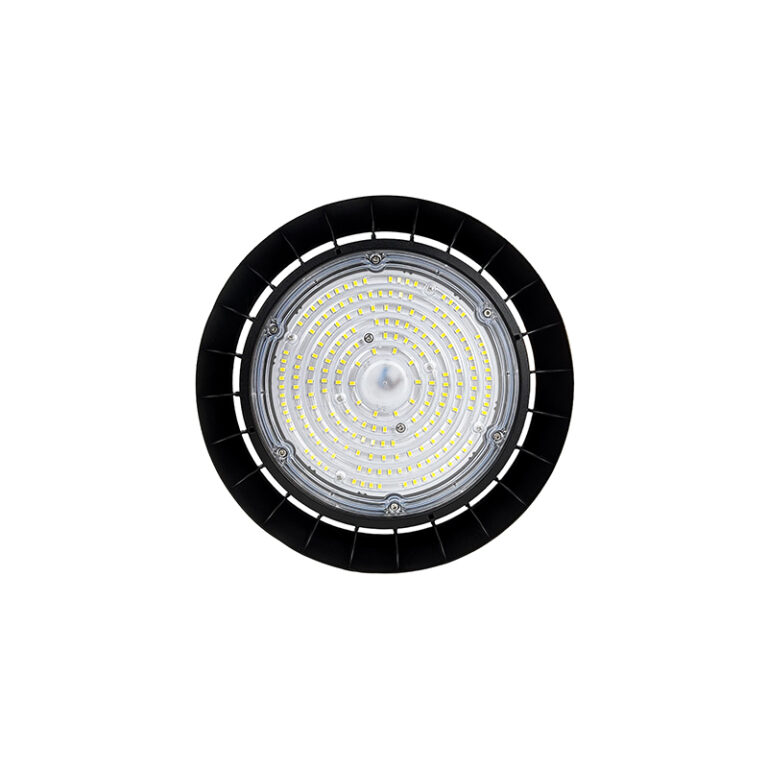

ARES LED High Bay Light A Slim / Low-profile UFO 100W/200W Solution

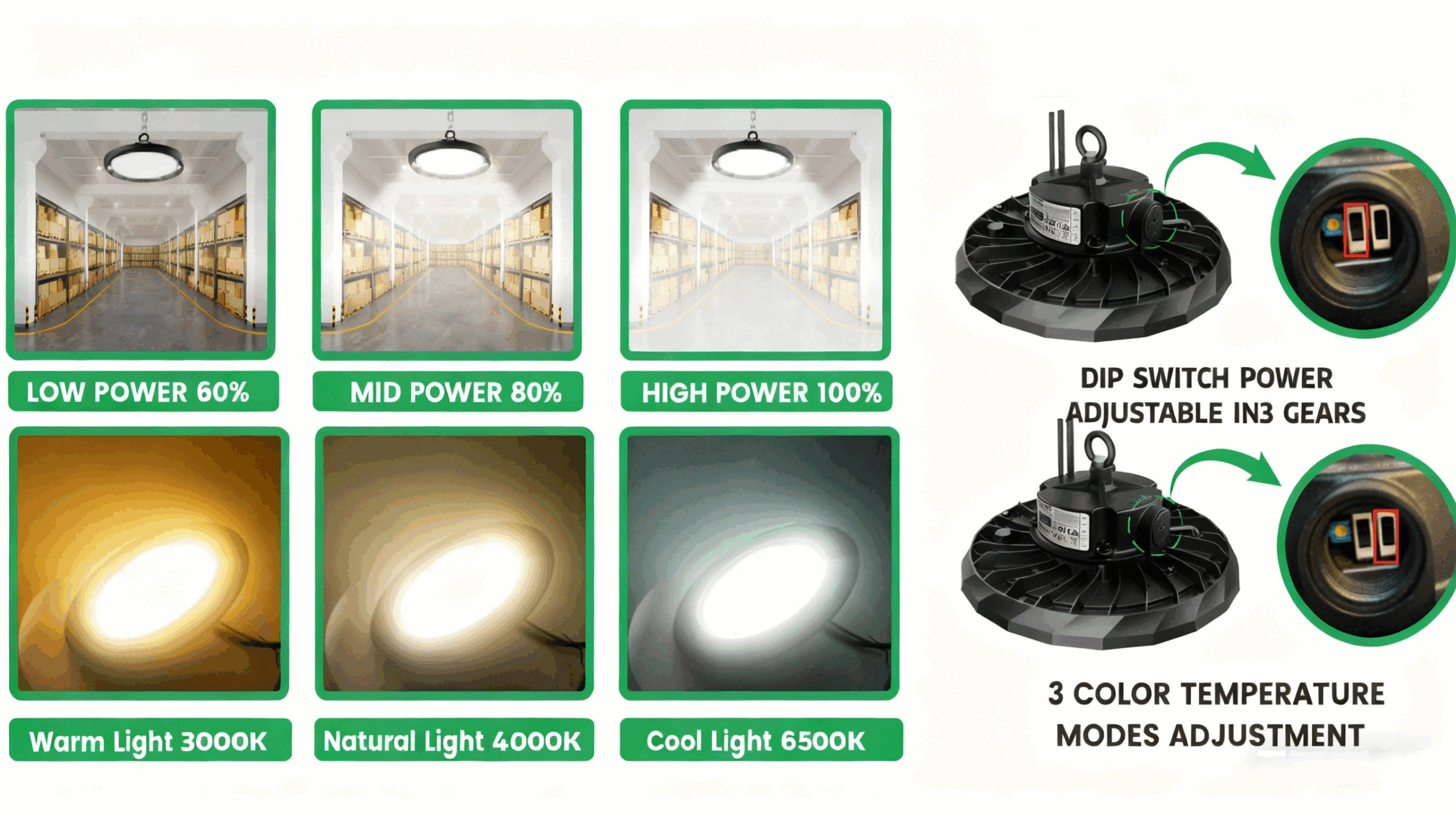

■ Premium high bay light with dual adjustable functions: CCT tuning & power regulation (60%/80%/100%).

■ Two power options available: 100W (252 LEDs) & 200W (588 LEDs) to meet different brightness needs.

■ Multiple beam angle choices: 60°/90°/120° for flexible light coverage in various spaces.

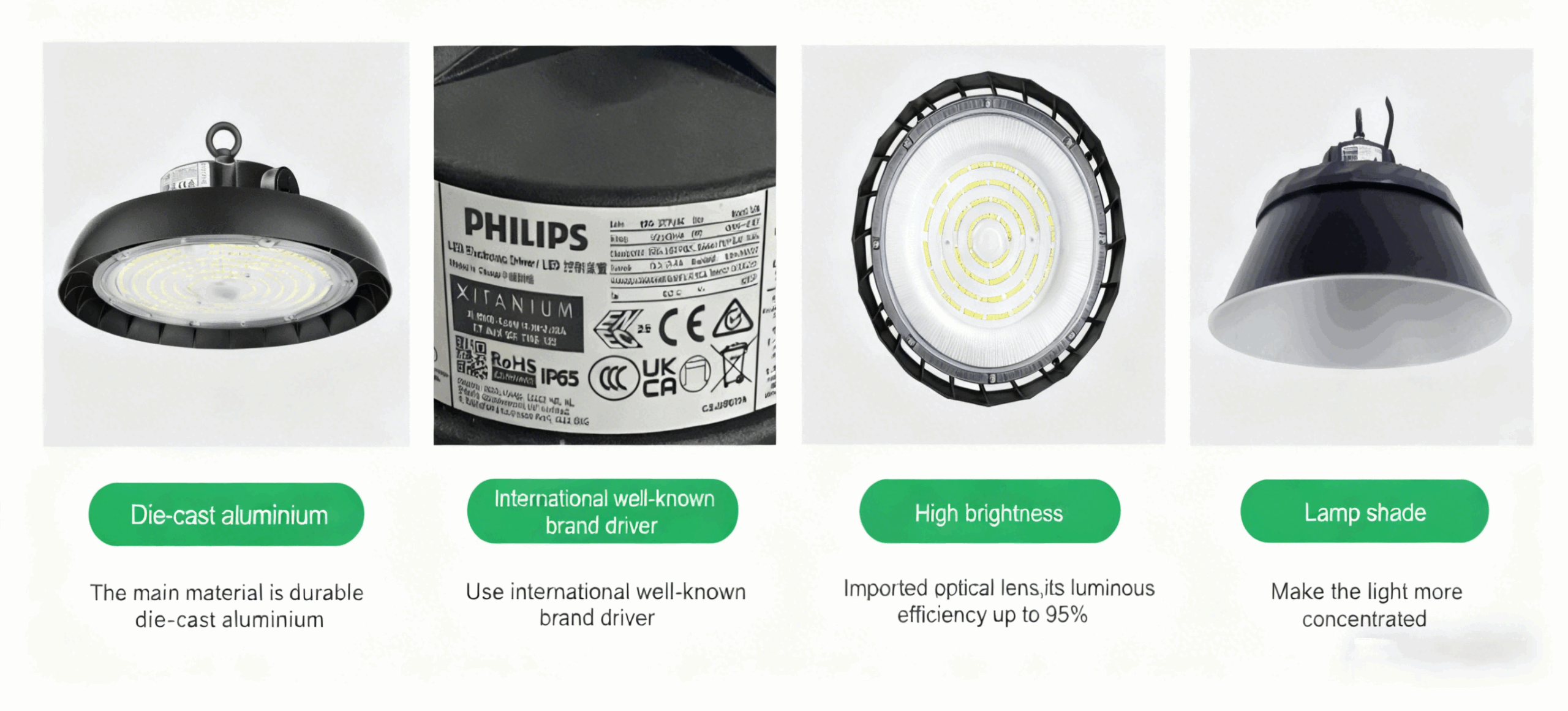

■ Durable satin black finish with Aluminum+PC material, corrosion-resistant (24-hour salt spray test passed).

■Class I electrical equipment with reliable grounding (Resistance ＜500mΩ) and insulation protection (Test Voltage 500V, Resistance ≥2MΩ).

■ 3CCT adjustable (3000K-4000K-6000K) to match different application scenarios (industrial, commercial, etc.).

■ High luminous efficacy up to 160LM/W for energy-saving and long-term cost reduction.

■ Suspension mounting design for stable installation in warehouses, factories, and large indoor spaces.

Live Chat

Product Parameters

Model No.	Power	LED（PCS）	Voltage	Angel	Color/Material	Lumen	Color Temperature	Size	Weight
ARES-A-100W Adjustable power and Adjustable color temperature	100W	252	AC 100-277V	60°/90°/120°	Black Aluminum + PC”	160LM/W	3CCT 3000K-4000K-6000K	Φ250*H147 mm	1.3KG
ARES-A-200W Adjustable power and Adjustable color temperature	200W	588	AC 100-277V	60°/90°/120°	Black Aluminum + PC”	160LM/W	3CCT 3000K-4000K-6000K	Φ320*H147 mm	1.67KG

Independent modular design of light source and driver, standardized interface, configurable multi-lamp linkage system, enhancing solution flexibility and adaptability.
Intelligent trunking, free positioning of driver, adaptable to various layouts, forward-looking wiring (supports upgrade and expansion), strong compatibility and scalability.
Easy assembly/disassembly + quick-lock suspension chain/rod, no complex tools required, safe high-altitude operation, reducing construction and maintenance costs.
Wide beam angle 60°-120°, uniform lighting covering shelves/workbenches; compatible with track spotlights, suitable for high-space scenarios such as factories/warehouses/venues, efficient and multi-functional.
Hidden wire trough, dust and oil resistant, simplified wiring, improving installation and operation/maintenance convenience.

Why choose ARES LED High Bay Light?

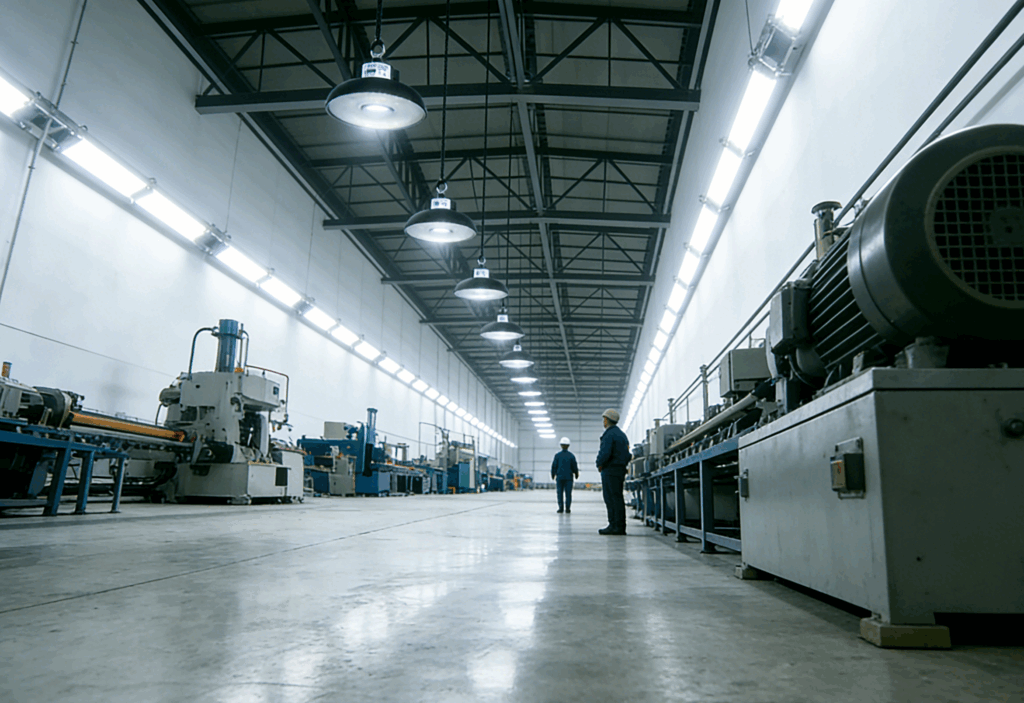

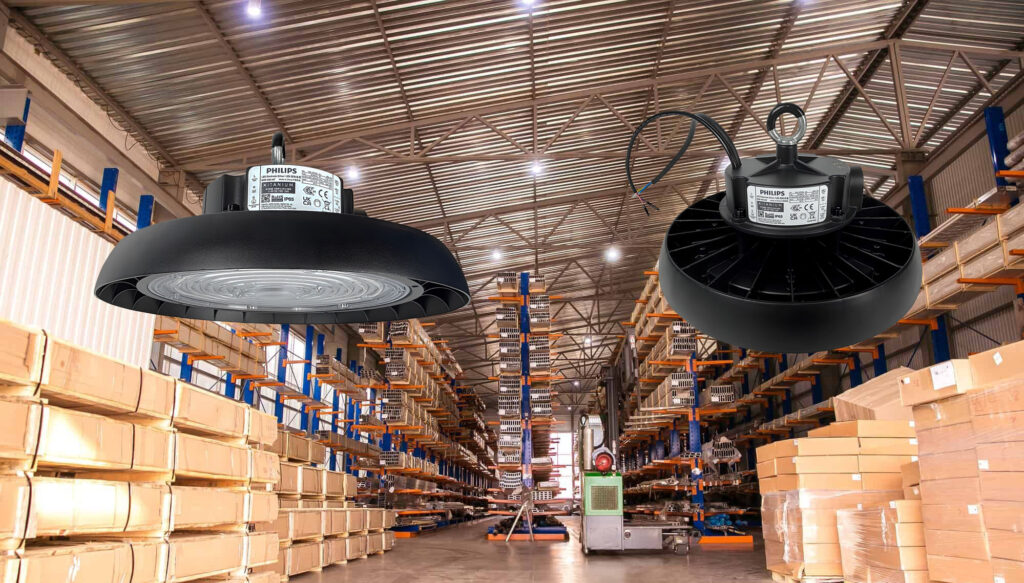

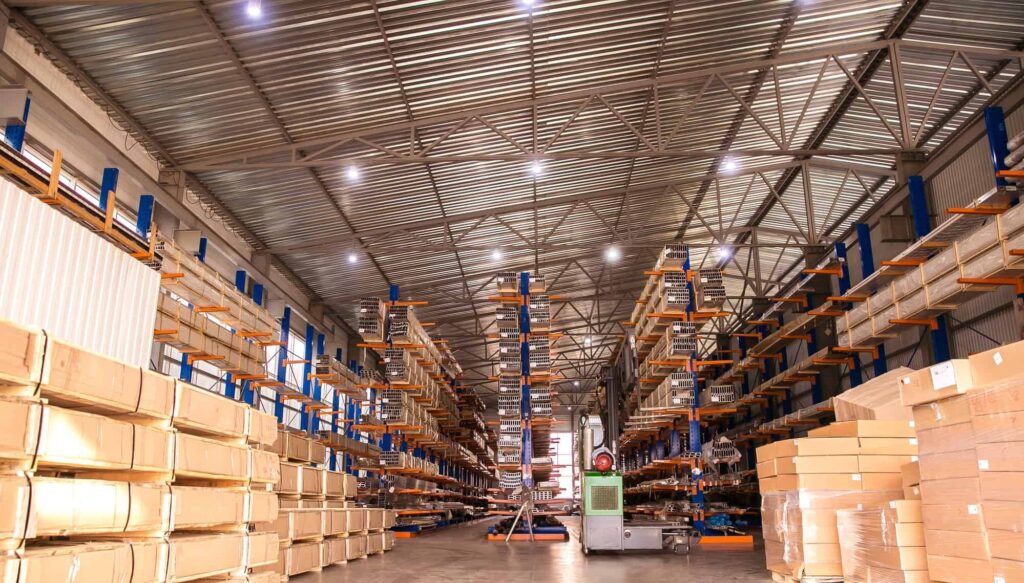

ARES LED High Bay Light are designed as a highly efficient lighting solution for large warehouses, industrial factories, sports venues, and logistics centers. Featuring high brightness output and uniform light distribution, they are suitable for the lighting needs of different spaces. Compliant with industrial lighting standards and fully compatible with mainstream mounting systems, they ensure easy installation and maintenance, and support adjustable power and color temperature (CCT).

FAQ

Q1: Is the power of this LED High Bay Light adjustable?

A1: Yes, it is available in three power options: 65W, 93W, and 120W.

Q2: Is the color temperature (CCT) of this LED High Bay Light selectable?

A2: Yes, it offers three color temperature options: 3000K, 4000K, and 6000K.

Q3: Are there optional beam angles for this LED High Bay Light?

A3: Yes, three beam angle options are available: 60°, 90°, and 120°.
