A highly efficient, modular lighting solution that combines tool-free installation with seamless,
glare-reduced illumination for demanding large-scale commercial and industrial environments.
| Light source | LED |
| Colour temperature | 3000k/4000k/5000k by DIP switch |
| Mounting version | Supendend |
| Dimensions(mm) | 1198/66/66,1498/66/66 |
| Application | Industrial, commrcial |
    |
|
Specification
A modular continuous trunking system designed for professional lighting applications. The NEVA system delivers high efficiency, flexible configuration, and fast installation for retail, warehouse, and industrial environments.
Options
| Model No. | Size (A*B*Cmm) |
Power (W) |
Flux (lm) |
Efficiency (lm/w) |
Voltage (V) |
PF | IP | CRI | Beam Angel | Energy Class |
Code |
| NV12-42C3K3W | 1198*66*66 | 42 | 6720/8400 | 160/200 | 220-240 | ≥0.9 | IP20 | 80 | 90° | D/B | 112342 |
| NV15-50C3K3W | 1498*66*66 | 50 | 8000/10000 | 160/200 | 220-240 | ≥0.9 | IP20 | 80 | 90° | D/B | 113350 |
| NV15-75C3K3W | 1496*66*66 | 75 | 12000/15000 | 160/200 | 220-240 | ≥0.9 | IP20 | 80 | 90° | D/B | 113375 |
Accessories

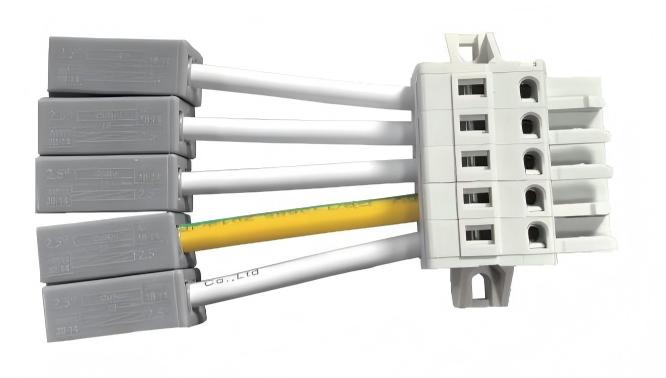

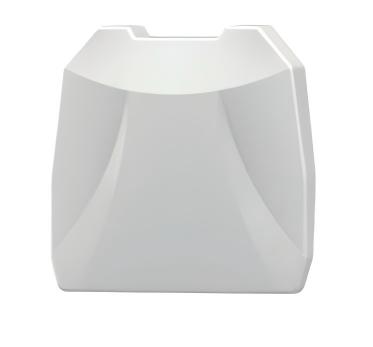

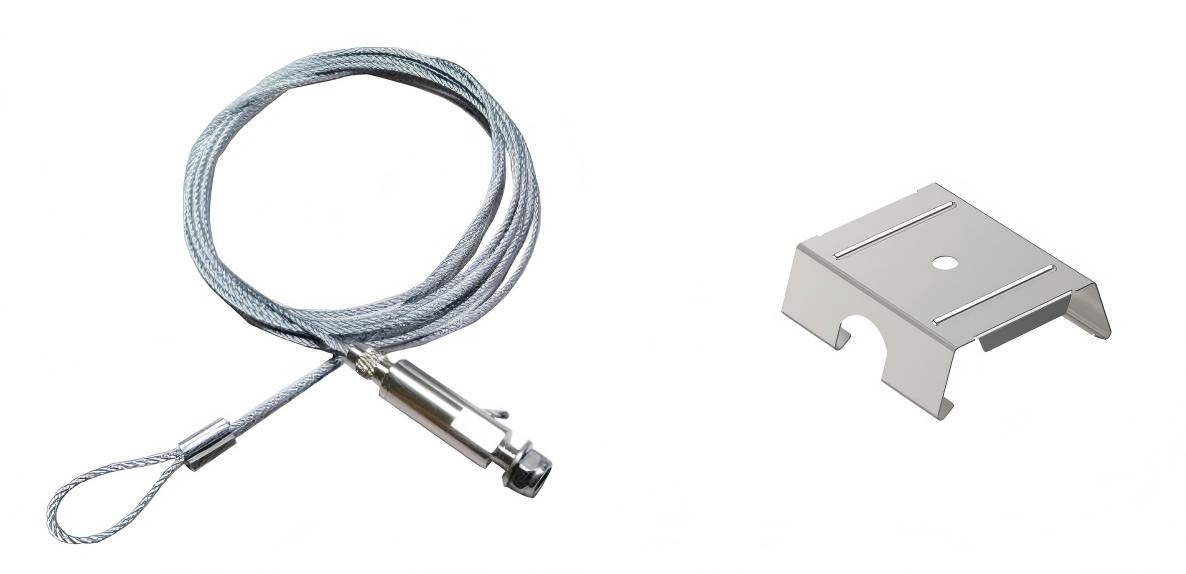

| Items | Feed In Connector | End Cap | Suspension Cord |
| Code | 123456 | 123456 | 123456 |
| Pictures |  |
 |
 |
This is placeholder information This is placeholder information This is placeholder information This is placeholder information
This is placeholder information This is placeholder information This is placeholder information This is placeholder information
Supermarket, Retail Store, Car Showroom, Grocery Store and other indoor lighting projects
