CLEO Edge-lit LED Panel Light 120lm/W,150lm/W, 3000K+4000K+6000K CCT Adjustable

Product  Type: Edge-lit

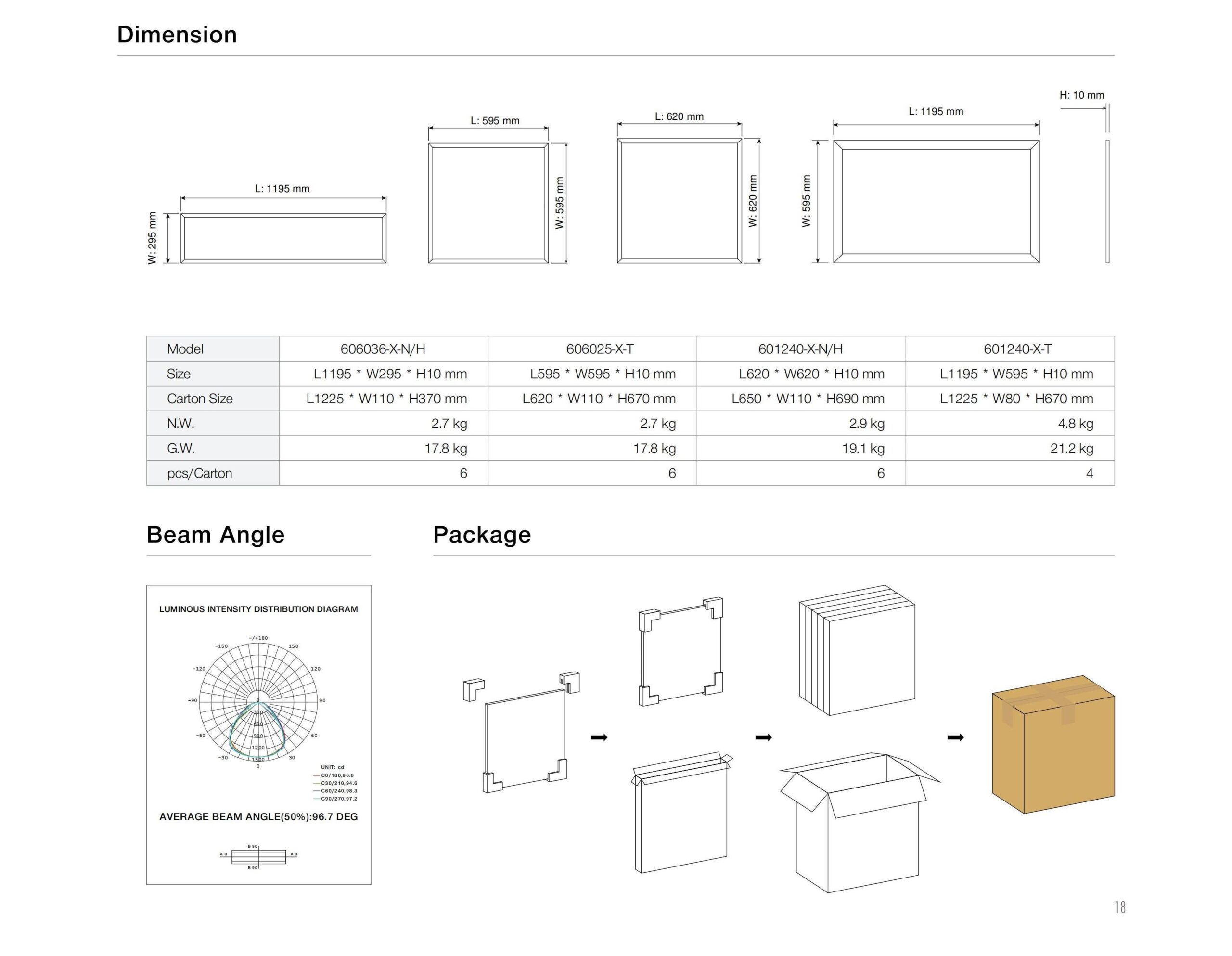

Dimension:595×595×10mm, 615×615×10mm,295×1195×10mm

Lumen: 120LM/W, 150LM/W

CCT: 4000K, 3000K+4000K+6000K

Power Factor: PF>0.9

CRI: Ra>80

Material: PMMA

UGR<19, UGR<22

Power: 30W, 18/25W(Power Switchable)

Driver: Flicker Free, AC220-240V

Warranty: 5 years warranty

Certification: CE ROHS

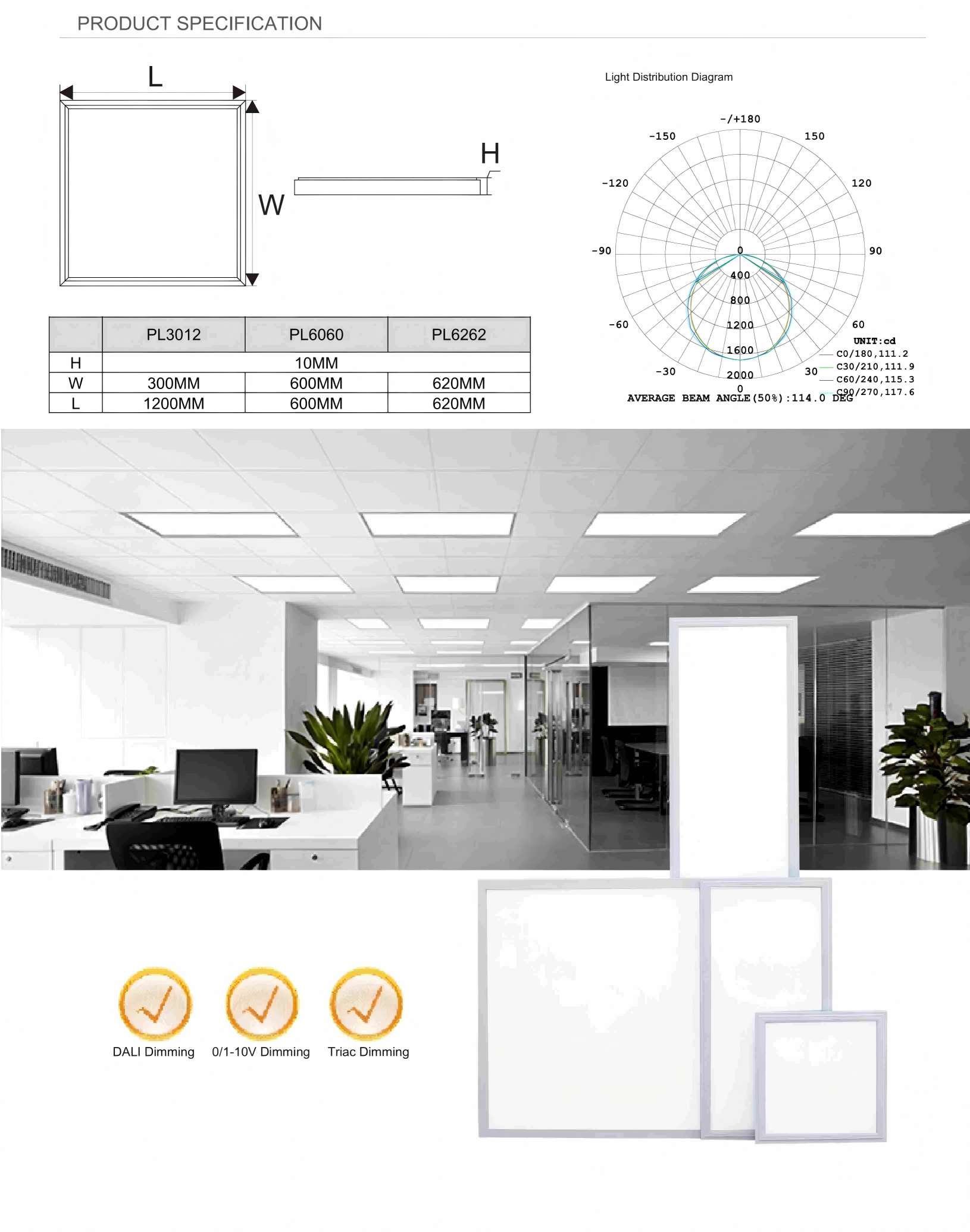

Product Parameters

Edge-lit  LED Panel Light
Item Model Product Type Driver Brand Dimension Power CCT LM/W Specification Packaging Dimension
11 CLEO-606036-4K LED PANEL Lifud 595*595 36W 4000K 120LM/W ¨Size: 595×595×10mm
¨Power Factor: PF>0.9
¨CRI: Ra>80
¨Material: PMMA
¨Driver: Flicker Free,  AC220-240V
¨Warranty: 5 years warranty
¨Certification: CE ROHS
5pcs/ carton
Carton Size:68*19*65cm
G.W:15.5kg
12 CLEO-606036-4K UGR<19 LED PANEL Lifud 595*595 36W 4000K 120LM/W ¨Size: 595×595×10mm
¨Power Factor: PF>0.9
¨CRI: Ra>80
¨Material: PMMA
¨Driver: Flicker Free,  AC220-240V
¨Warranty: 5 years warranty
¨Certification: CE ROHS
5pcs/ carton
Carton Size:68*19*65cm
G.W:15.5kg
13 CLEO-606025-4K LED PANEL Lifud 595*595 25W 4000K 150LM/W ¨Size: 595×595×10mm
¨SMD: 2835SMD
¨Power Factor: PF>0.9
¨CRI: Ra>80
¨Material: PMMA
¨Driver: Flicker Free,  AC200-240V
¨Warranty: 5 years warranty
¨Certification: CE ROHS
5pcs/ carton
Carton Size:68*19*65cm
G.W:15.5kg
14 CLEO-606025-4K UGR<19 LED PANEL Lifud 595*595 25W 4000K 150LM/W ¨Size: 595×595×10mm
¨SMD: 2835SMD
¨Power Factor: PF>0.9
¨CRI: Ra>80
¨Material: PMMA
¨UGR<19
¨Driver: Flicker Free,  AC200-240V
¨Warranty: 5 years warranty
¨Certification: CE ROHS
5pcs/ carton
Carton Size:68*19*65cm
G.W:15.5kg
15 CLEO-626225-CCT LED PANEL Lifud 620*620 25w 3000K+4000K+6000K 150lm/W ¨Size: 620*620mm
¨Color Termperature:Switchable
¨Power Factor: PF>0.9
¨CRI: Ra>80
¨Material: PMMA
¨Driver: Flicker Free,  AC100-240V
¨Warranty: 5 years warranty
¨Certification: CE ROHS
5pcs/ carton
Carton Size:70*19*65cm
G.W:16.5kg
16 CLEO-626225-4K LED PANEL BOKE 620*620 25W 4000K 150LM/W ¨Size: 615×615×10mm
¨Power Factor: PF>0.9
¨CRI: Ra>80
¨Material: PMMA
¨Driver: Flicker Free,  AC200-240V
¨Warranty: 5 years warranty
¨Certification: CE ROHS
5pcs/ carton
Carton Size:70*19*65cm
G.W:16.5kg
17 CLEO-301236-4K LED PANEL Lifud 295*1195 36W 4000K 120LM/W ¨Size: 295×1195×10mm
¨Power Factor: PF>0.9
¨CRI: Ra>80
¨Material: PMMA
¨Driver: Flicker Free,  AC200-240V
¨Warranty: 5 years warranty
¨Certification: CE ROHS
5pcs/ carton
Carton Size:128*19*34cm
G.W:17kg
18 CLEO-301236-4K UGR<19 LED PANEL Lifud 295*1195 36W 4000K 120LM/W ¨Size: 295×1195×10mm
¨Power Factor: PF>0.9
¨CRI: Ra>80
¨Material: PMMA
¨UGR<19
¨Driver: Flicker Free,  AC200-240V
¨Warranty: 5 years warranty
¨Certification: CE ROHS
5pcs/ carton
Carton Size:128*19*34cm
G.W:17kg
19 CLEO-301236-4K LED PANEL Lifud 295*1195 25W 4000K 150LM/W ¨Size: 295×1195×10mm
¨SMD: 2835SMD
¨Power Factor: PF>0.9
¨CRI: Ra>80
¨Material: PMMA
¨Driver: Flicker Free,  AC200-240V
¨Warranty: 5 years warranty
¨Certification: CE ROHS
5pcs/ carton
Carton Size:128*19*34cm
G.W:17kg
20 CLEO-301236-4K UGR LED PANEL Lifud 295*1195 25W 4000K 150LM/W ¨Size: 295×1195×10mm
¨Power Factor: PF>0.9
¨CRI: Ra>80
¨Material: PMMA
¨UGR<19
¨Driver: Flicker Free,  AC200-240V
¨Warranty: 5 years warranty
¨Certification: CE ROHS
5pcs/ carton
Carton Size:128*19*34cm
G.W:17kg



Download

viDEO

ZHANWEI

This is placeholder information This is placeholder information This is placeholder information This is placeholder information

This is placeholder information This is placeholder information This is placeholder information This is placeholder information

MAC

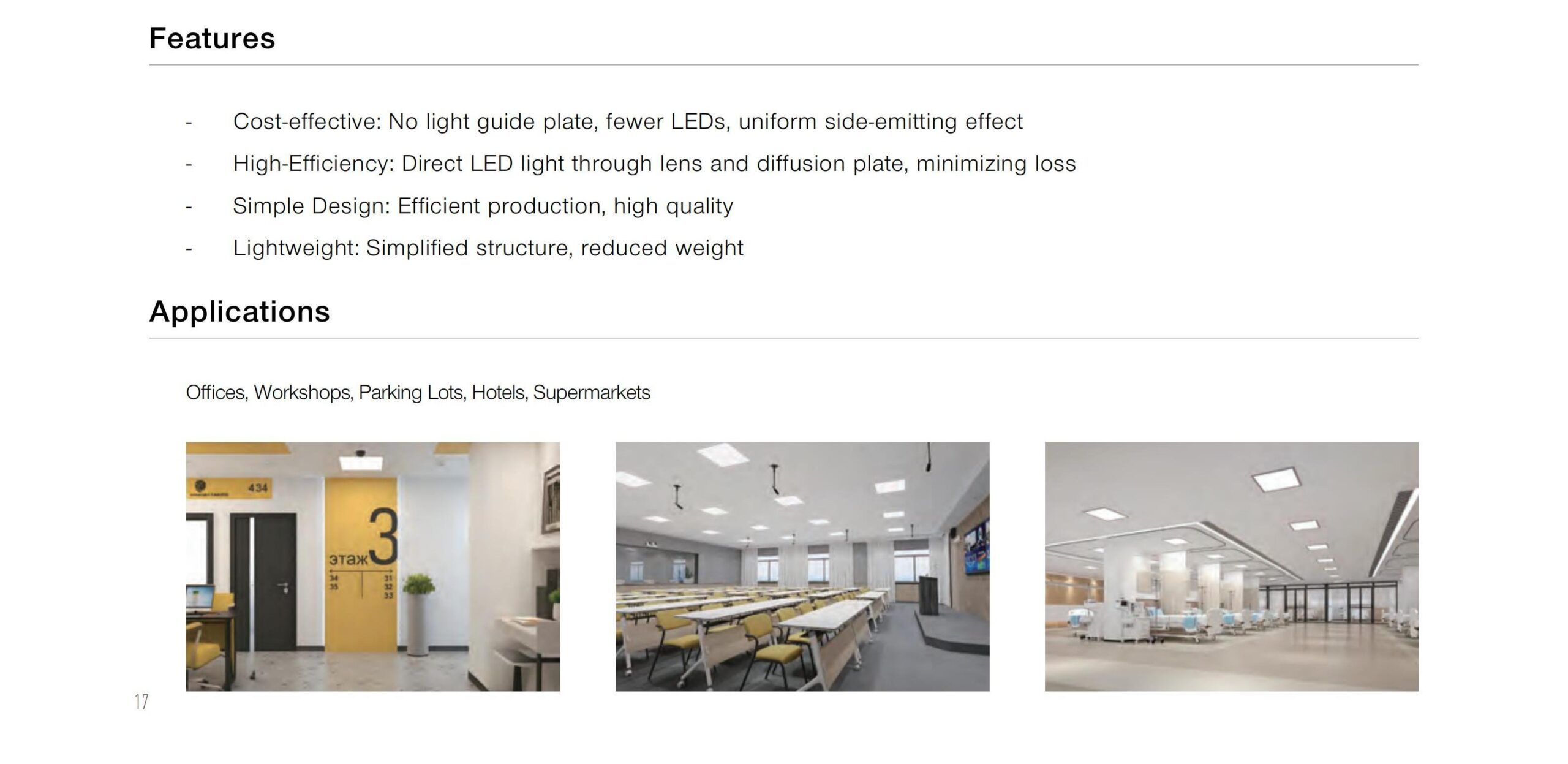

Applications

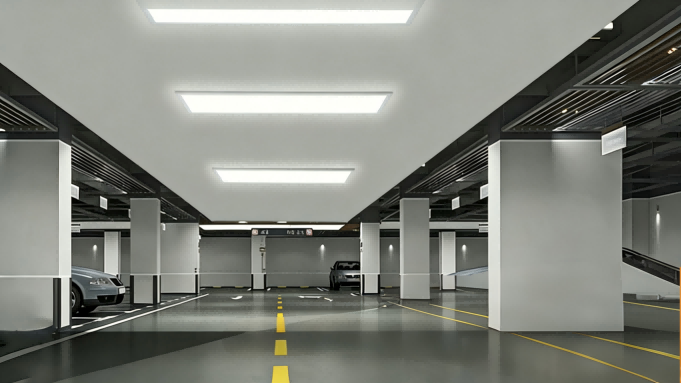

Supermarket, Retail Store, Car Showroom, Grocery Store and other indoor lighting projects
