■ Tool-free modular track system saves 50% installation cost time.
■ Work for 4 wires or 6 wires/ 3 phase Europe track rail system.
Product Benefits
■ White / Black housing.
■ Length 600mm,1200mm,1500mm for options.
■ With DIP power switch to adjust watts.
■ Also work for 6 wires/ 3 phase Europe track rail system with DALI function.

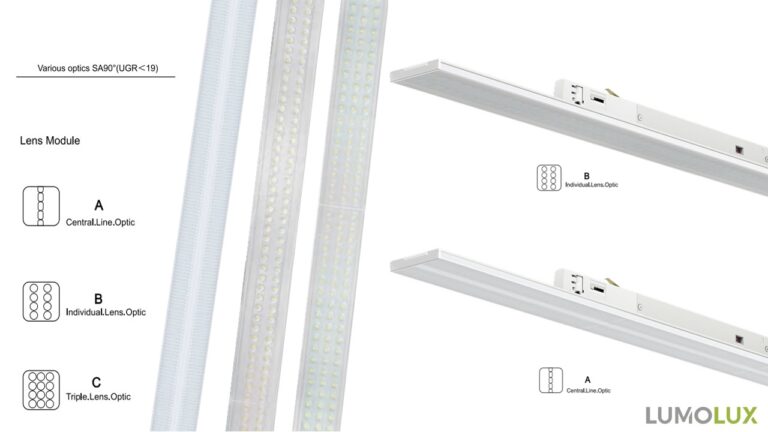

■ SP 30° / NR 60° / WD 90° / Double asymmetric / FD 120°.
■ 160lm Per Watt.
■ Single CCT 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K.
■ CCT Switch Optional.
| Model NO. | Size(mm) | Power(W) | Luminous flux (LM) | Voltage (V) | PF | CRI | Colour Temperature(K) | Energy Class | Housing Color |
| LUMI-60-24W-B | 602*66*45 | 24/20/16/12 | 3840 | 220-240 | ≥0.9 | ≥80/90 | 3000/4000K/5000K/6000K | D | White / Black |
| LUMI-120-42W-B | 1198*66*45 | 42/38/34/30 | 6720 | 220-240 | ≥0.9 | ≥80/90 | 3000/4000K/5000K/6000K | D | White / Black |
| LUMI-120-55W-B | 1198*66*45 | 55/50/45/40 | 8800 | 220-240 | ≥0.9 | ≥80/90 | 3000/4000K/5000K/6000K | D | White / Black |
| LUMI-150-55W-B | 1496*66*45 | 55/50/45/40 | 8800 | 220-240 | ≥0.9 | ≥80/90 | 3000/4000K/5000K/6000K | D | White / Black |
| LUMI-150-66W-B | 1496*66*45 | 66/61/56/51 | 10560 | 220-240 | ≥0.9 | ≥80/90 | 3000/4000K/5000K/6000K | D | White / Black |

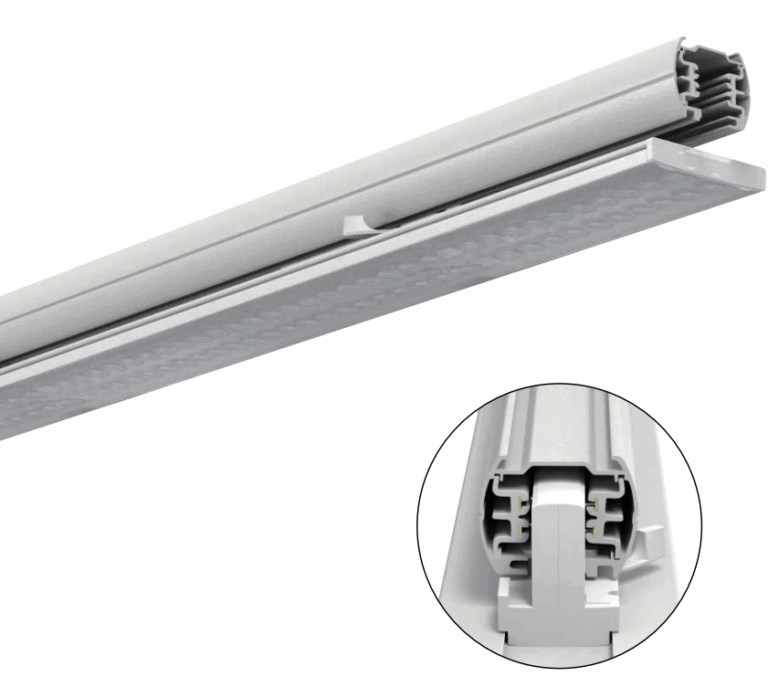

The LED Track Linear Light features a separated module design with track, offering a continuous line system that enhances flexibility and functionality. With its new trunking system, the geartrays can be freely positioned, ensuring future-proof current routing.
The simplified, tool-free mounting and disassembly saves significant installation time while maintaining ease of use. Additionally, it achieves a single tilting angle of 30° and can be flexibly combined with track spotlights on the same track rail, making it a versatile and efficient lighting solution for various settings. Innovative wire way profiles allow for maximum flexibility and easy installation.
Why Choose This LED Track Linear Light?
The LUMI LED Track Linear Light is designed as a flexible and efficient lighting solution for supermarkets, offices, and commercial retail spaces. Featuring a 30° adjustable angle so it can be rotated left and right, enhancing product visibility and workspace comfort.
Designed in compliance with European track lighting standards, LUMI is fully compatible with mainstream EU track systems, ensuring easy installation. With adjustable power and CCT.
OEM / ODM Customization Options
Custom housing color and length
Branding options: logo, packaging, and labeling
FAQ
Q1: Is this track light compatible with European track systems?
Yes. LUMI is designed according to European standards and is compatible with most EU track rails.
Q2: Can the beam direction be adjusted after installation?
Yes. The light head supports left and right rotation with a 30° adjustable angle.
This is placeholder information This is placeholder information This is placeholder information This is placeholder information
This is placeholder information This is placeholder information This is placeholder information This is placeholder information

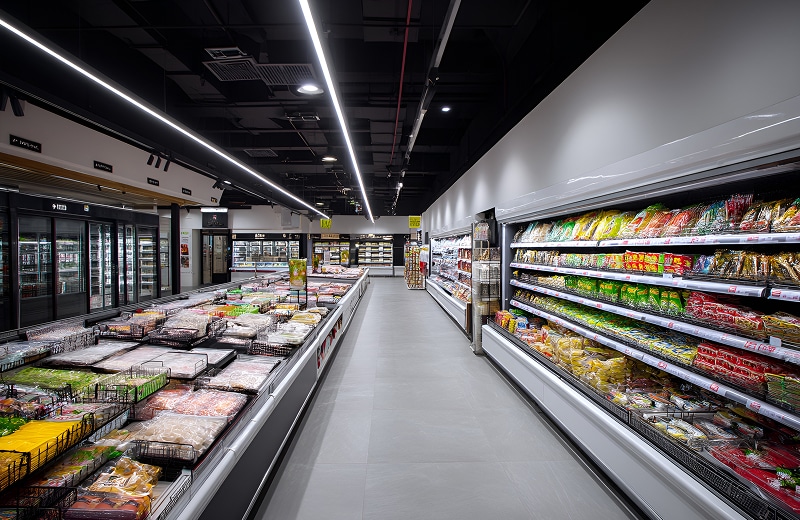

Supermarket, Retail Store, Car Showroom, Grocery Store and other indoor lighting projects
