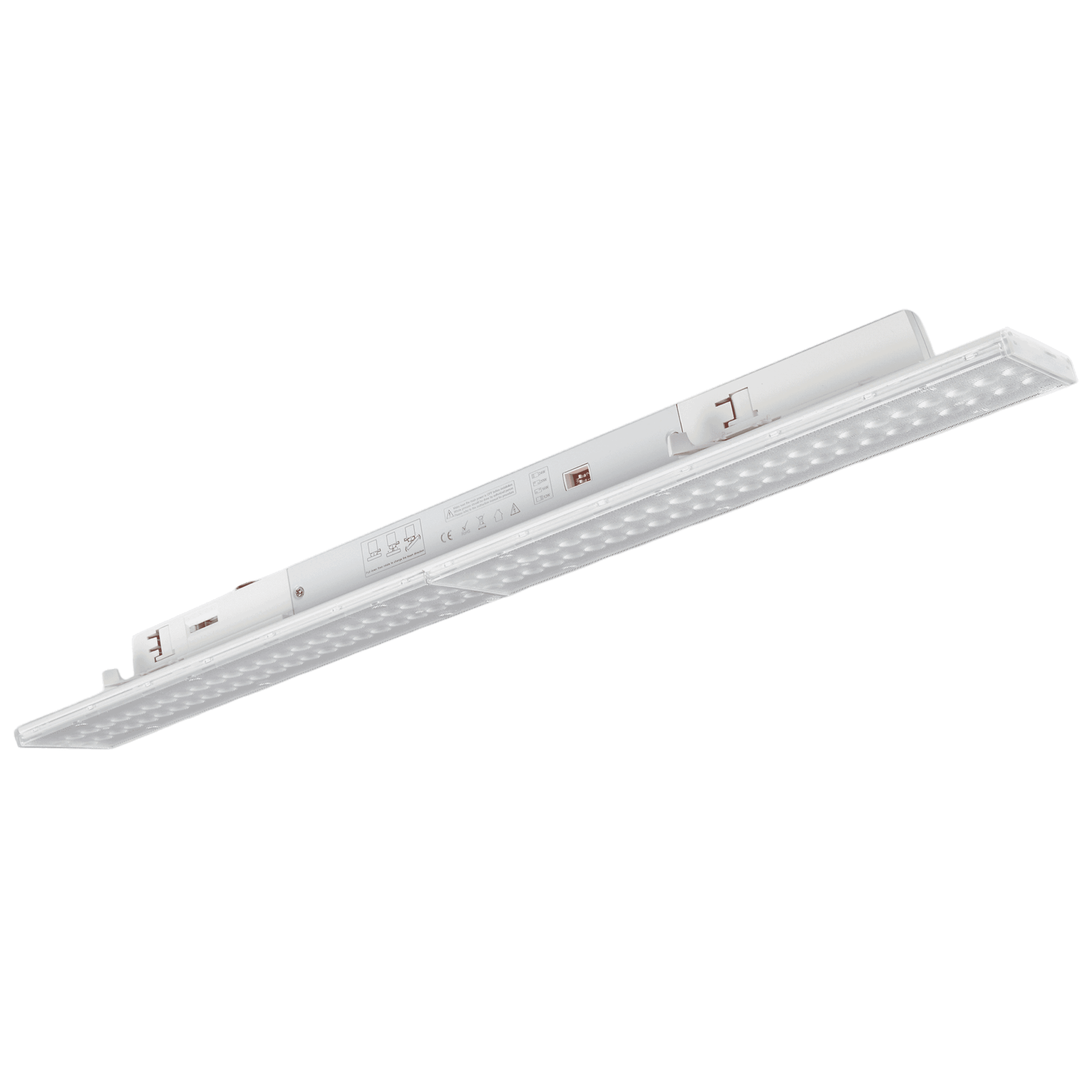

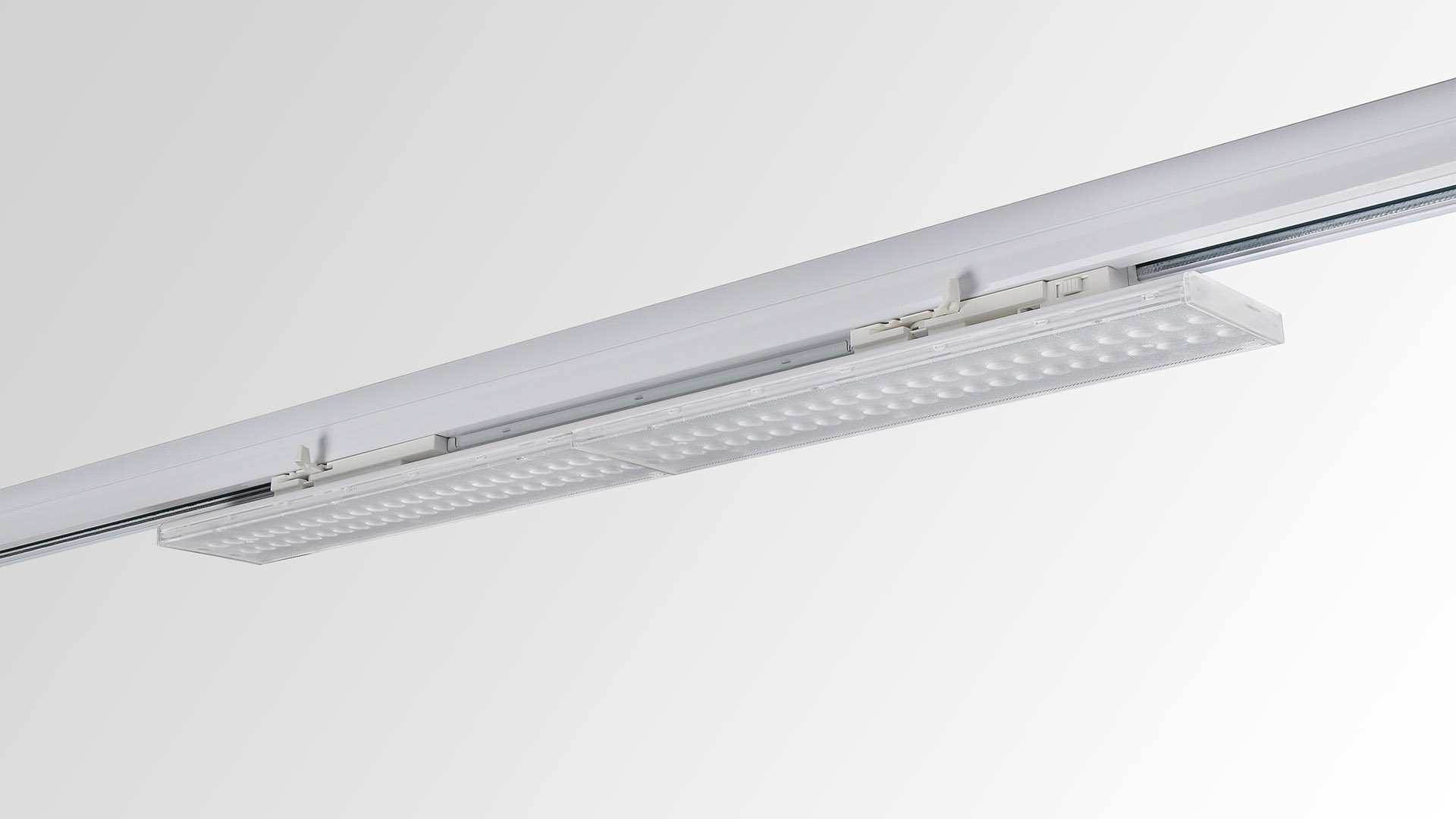

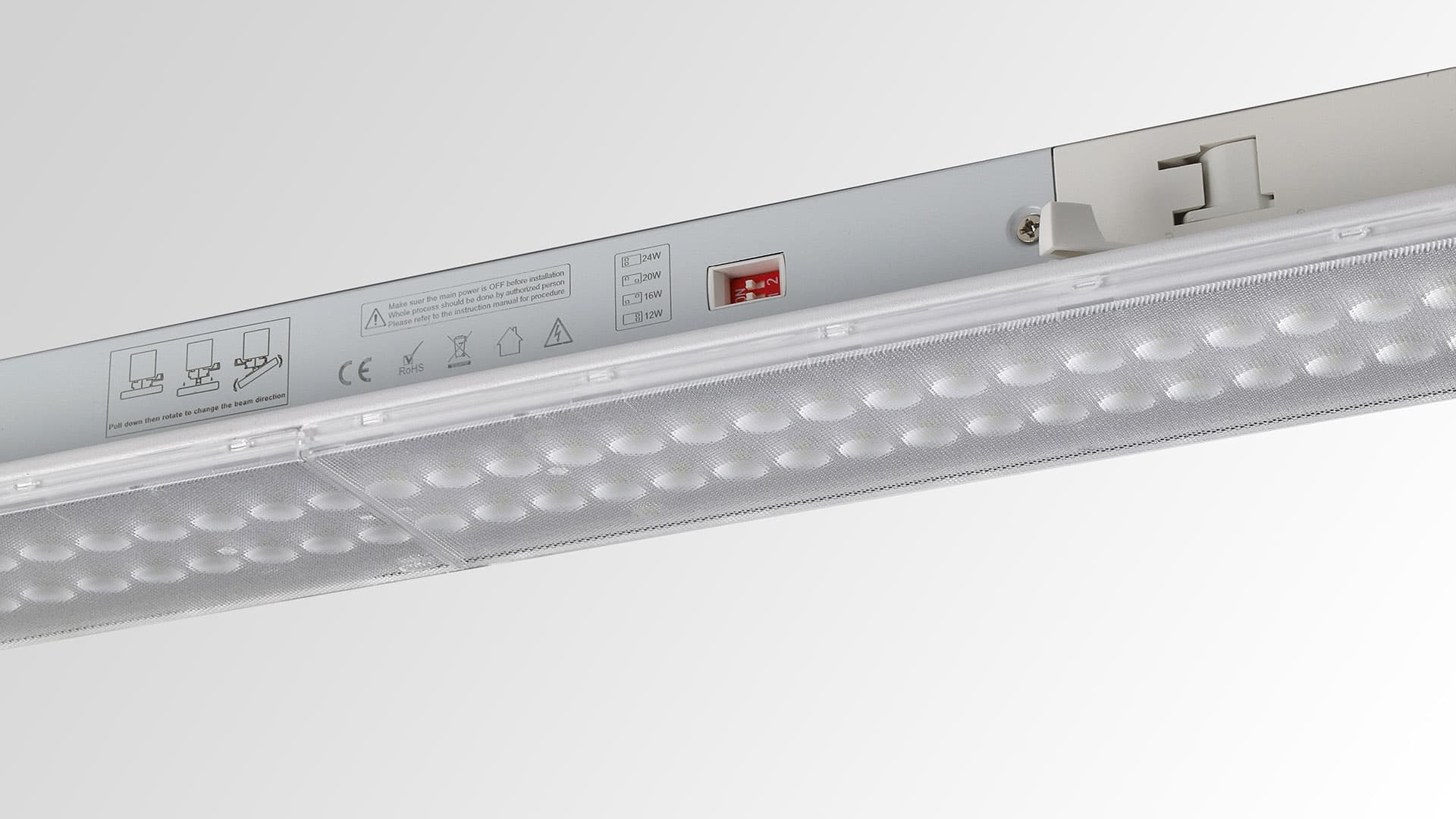

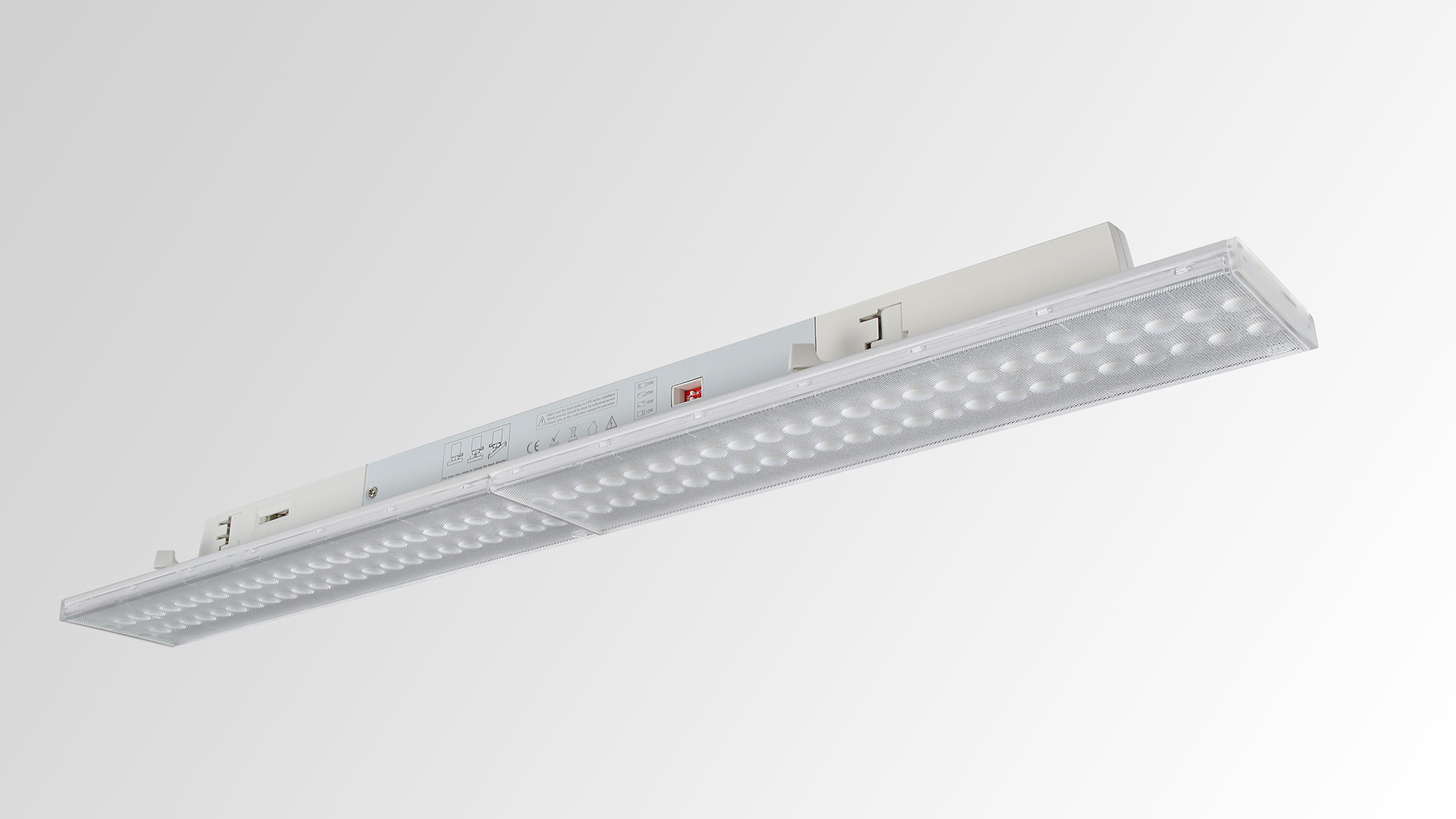

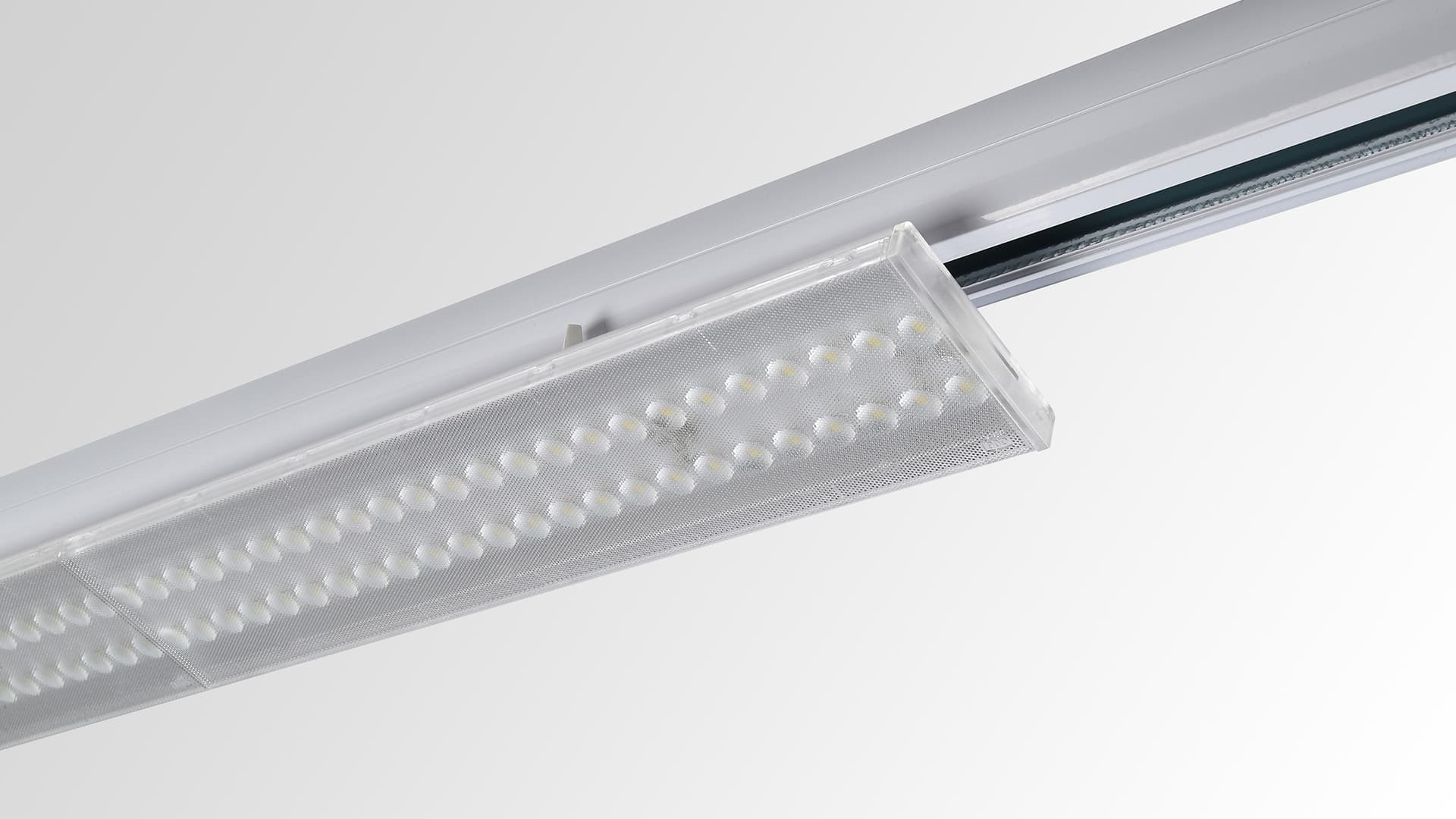

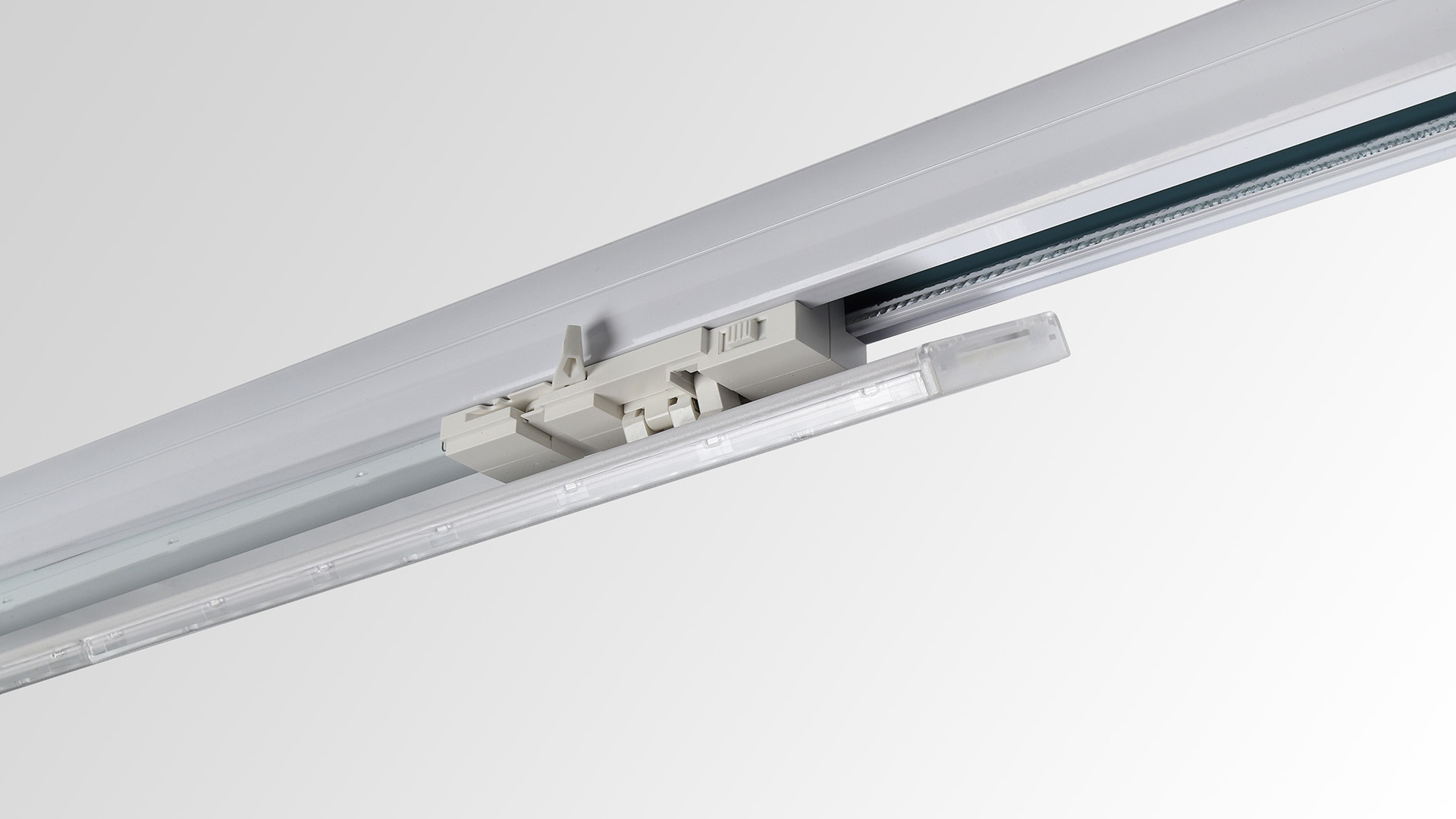

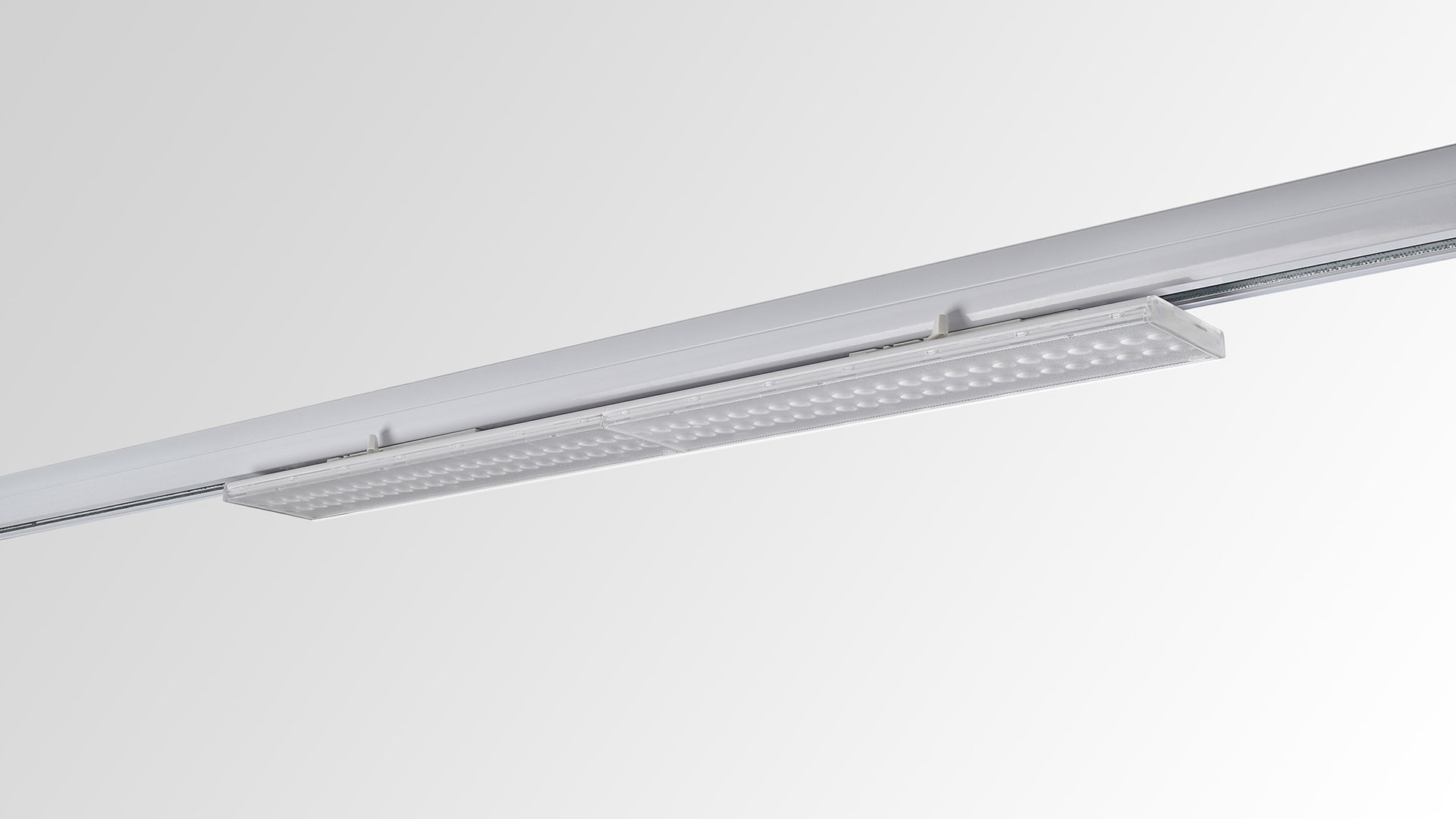

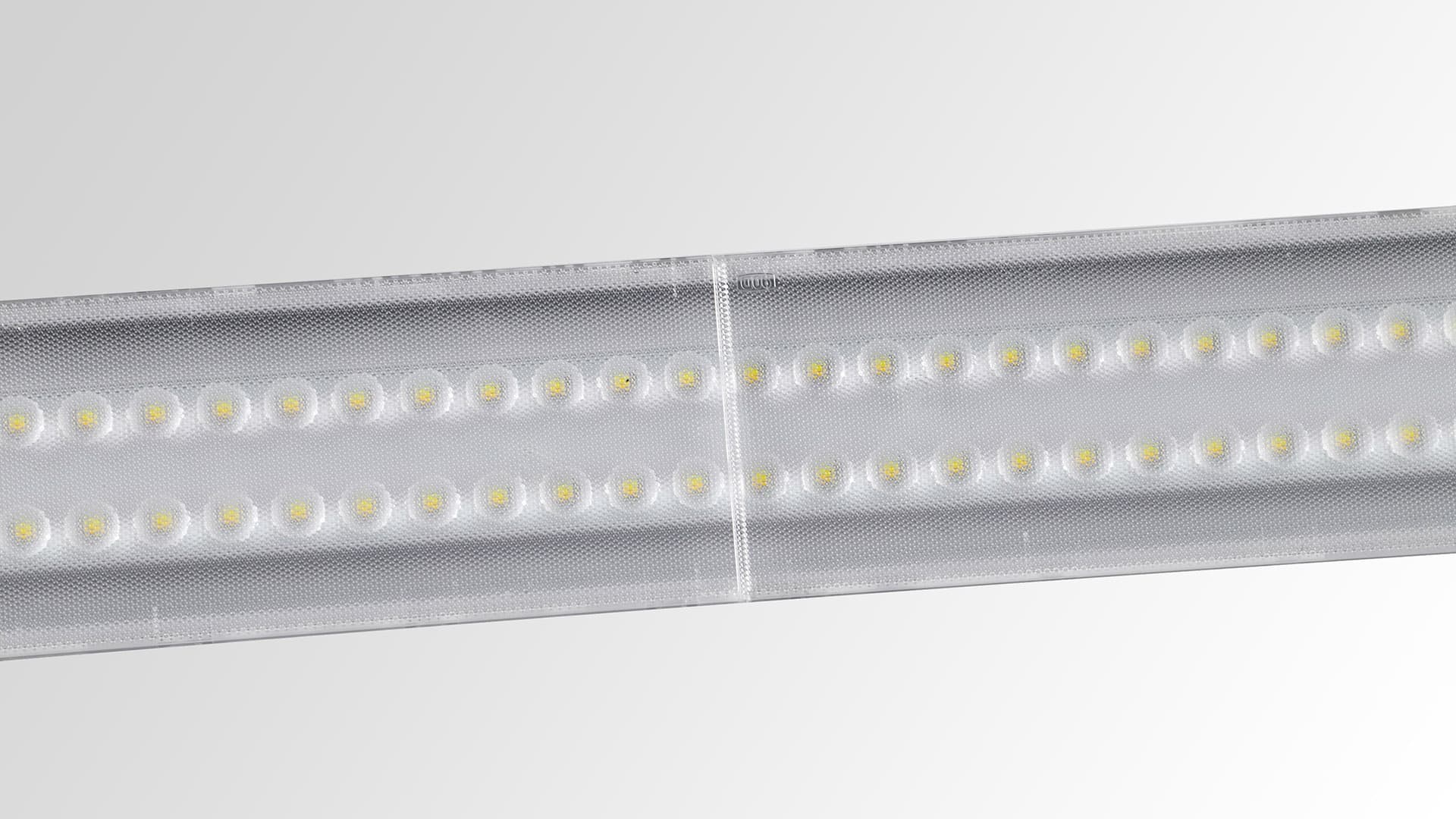

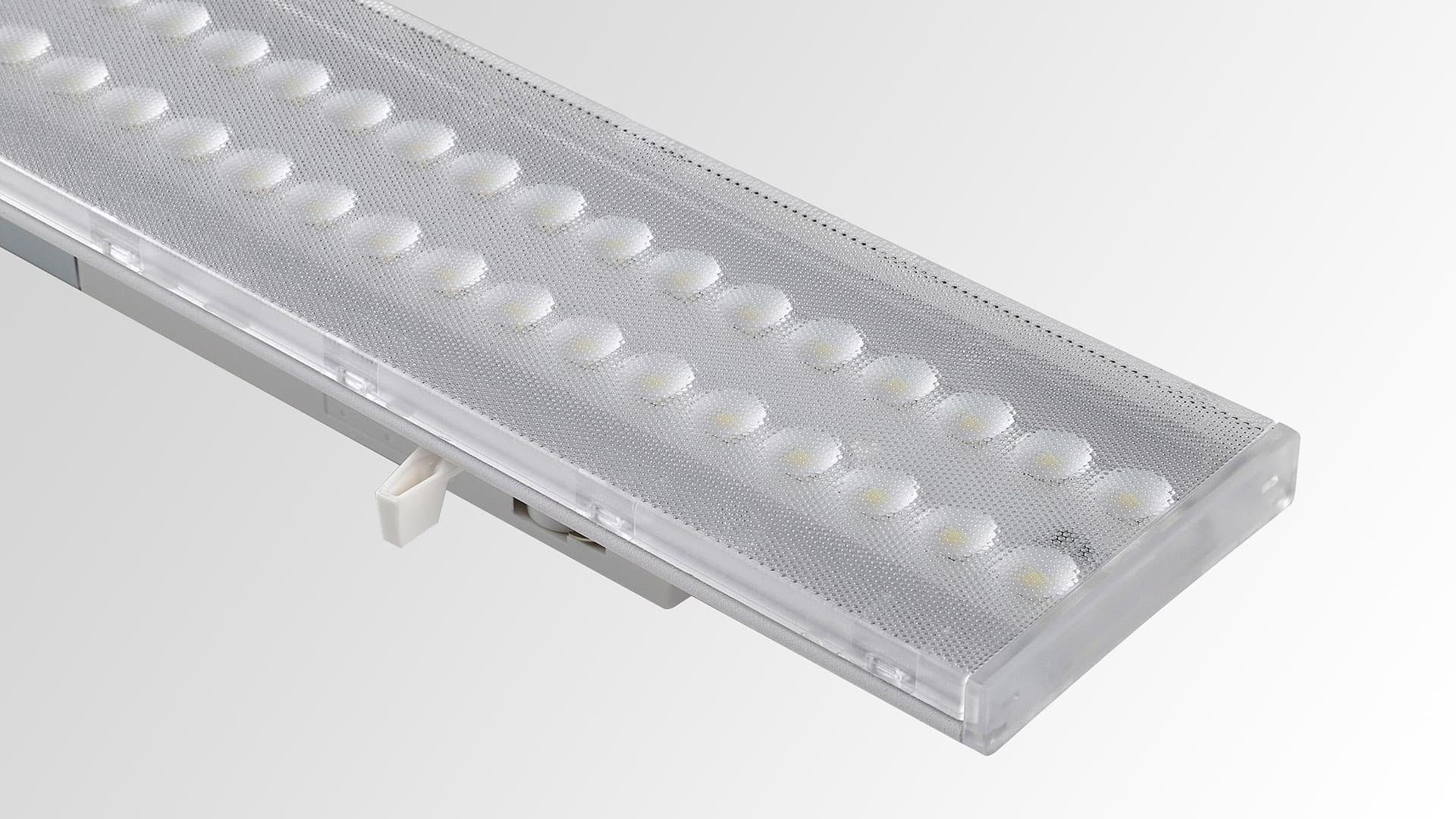

Three-phase track linear light

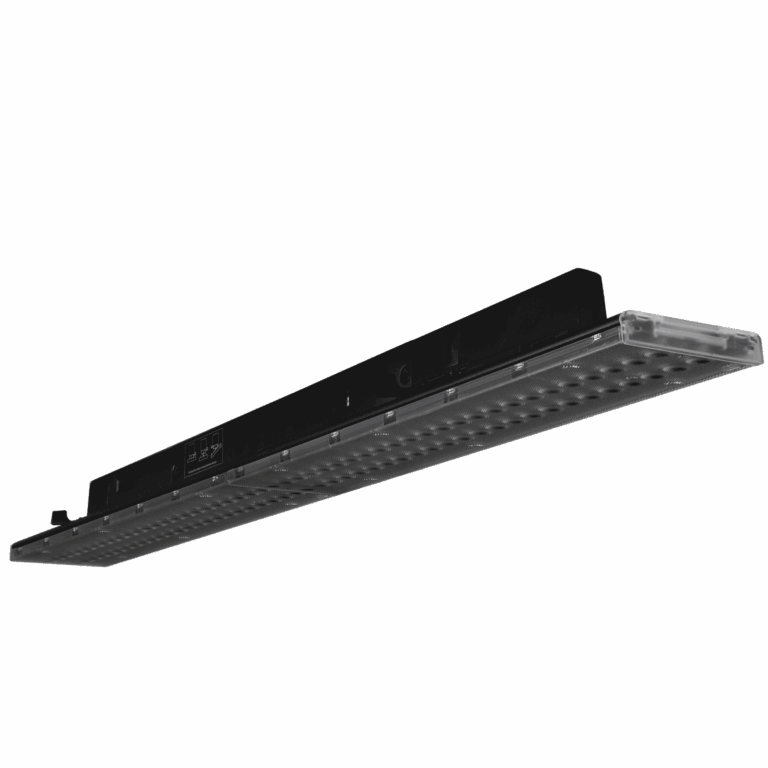

Linear with Power adjust 66W/55W/42W/24W, CCT adjust,Tilt, black
|
Light source
|
LED |
| Nominal Voltage | 220/240 |
| Mounting version | Track |
| Durability(h) | 5000hours |
| CCT adjust | 3,000K/4,000K/5,000K |
| Warranty | 5years |
| Application | Retails, Supermarket, Office |
Specification

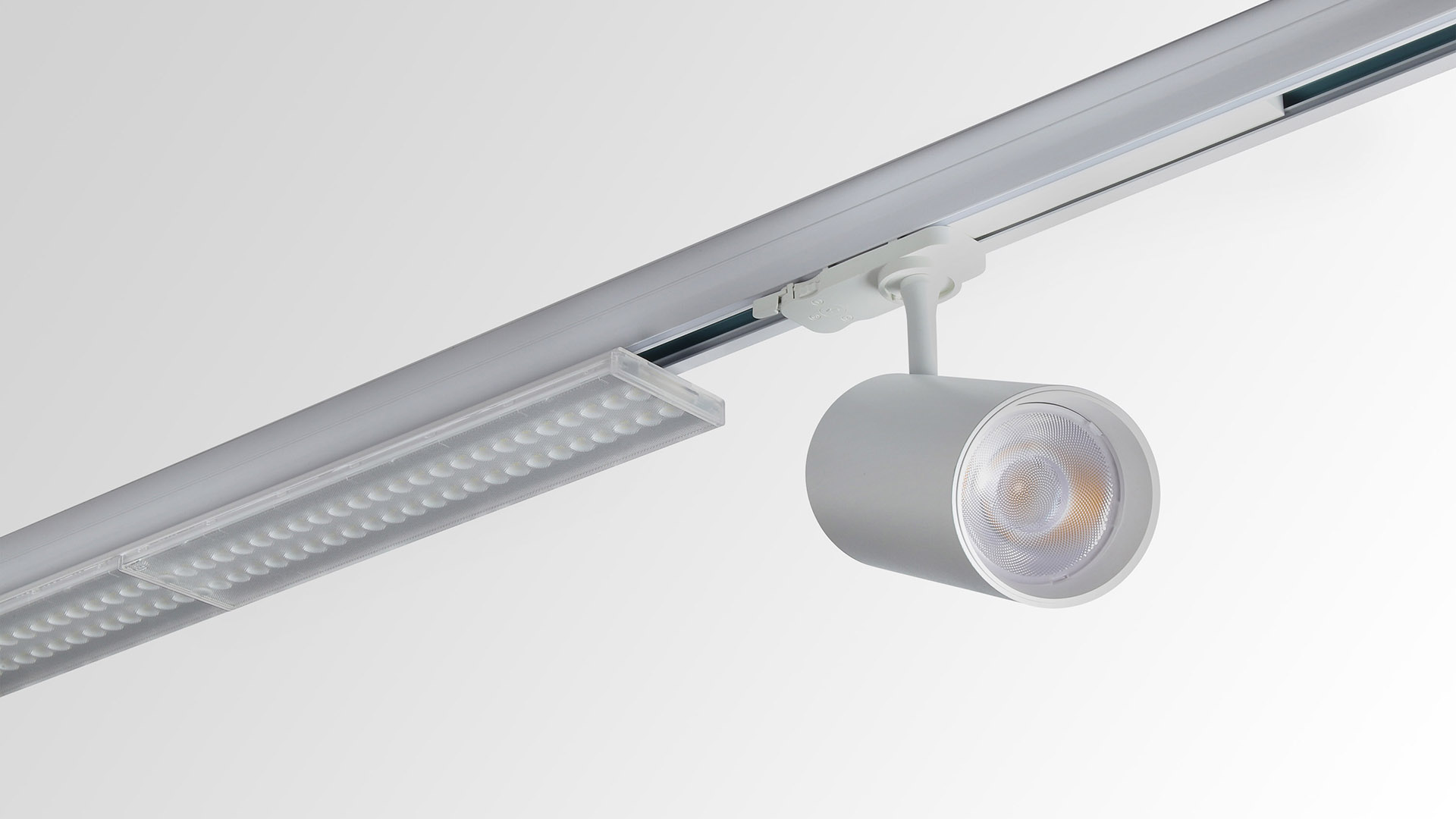

AXIS Linear extends the functionality of the AXIS track system, forming—together with the spot luminaires of the same range—a fully compatible and coherent track lighting solution.
Developed for architects and lighting designers, it ensures visual consistency, design flexibility, and precise control of lighting performance.
The luminaire features selectable colour temperature (3CCT) and multi-power settings, allowing accurate adjustment of light parameters to suit different applications—from retail displays and circulation areas to offices and showrooms.
This results in maximum planning flexibility while maintaining a clean, architectural aesthetic aligned with contemporary lighting design.
Technical Data
| Model No. | Size (L/W/H) mm |
Power (W) |
CCT (K) |
Lumen (Lm) |
Effi. (Lm/w) |
PF | CRI | Beam Angle | Dimmable | IP | Energy Class | Code |
| AS06W-24B3C3W | 602/66/45 | 24 | 3000/4000/5000 | 3840/4440 | 160/185 | ≥0.9 | 80 | 90° | No | IP20 | D/B | 101124 |
| AS12W-42B3C3W | 1196/66/45 | 42 | 3000/4000/5000 | 6720/7770 | 160/185 | ≥0.9 | 80 | 90° | No | IP20 | D/B | 101142 |
| AS15W-55B3C3W | 1498/66/45 | 55 | 3000/4000/5000 | 8800/10175 | 160/185 | ≥0.9 | 80 | 90° | No | IP20 | D/B | 103155 |
