Specificaton

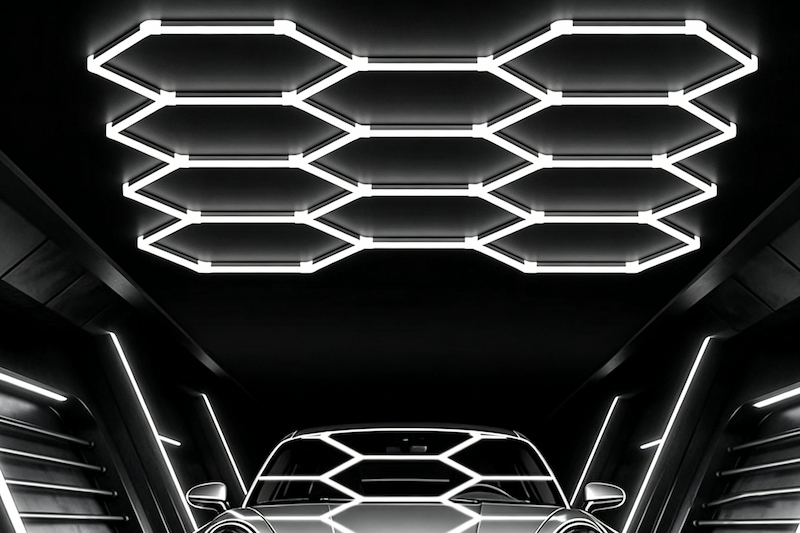

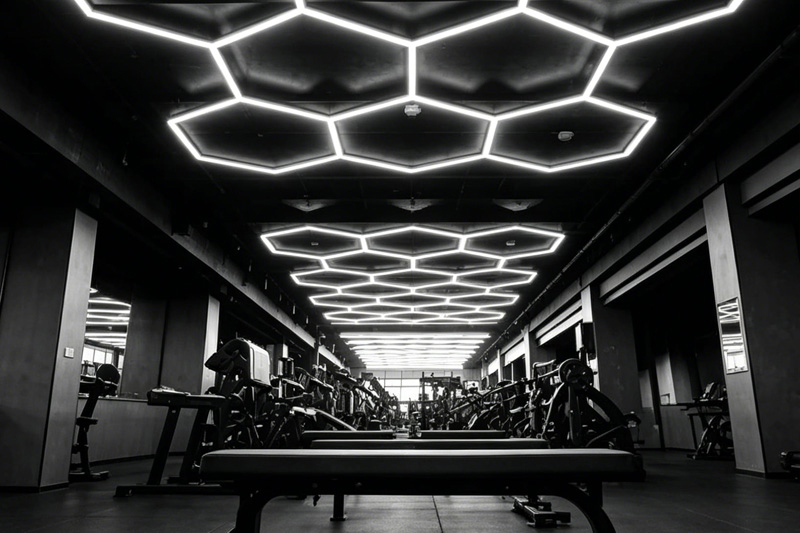

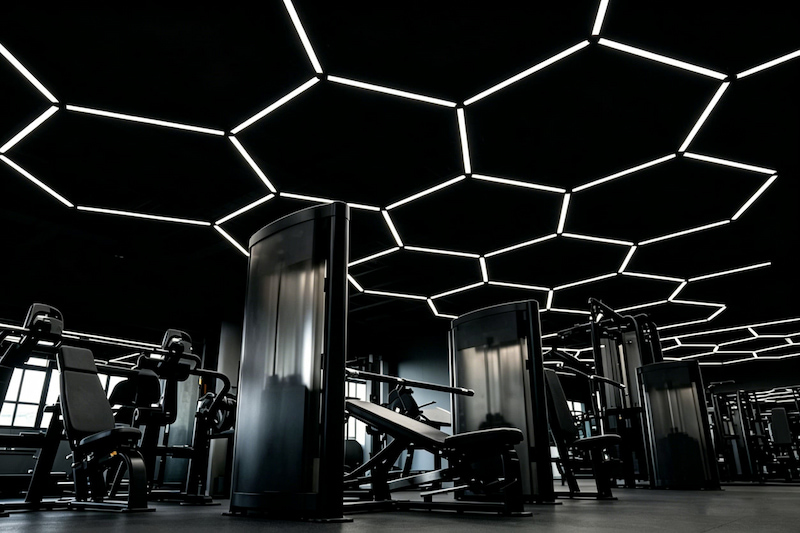

Hexagon LED lighting is suitable for a broad range of applications such as exhibition stands, garages, fitness centres, hotels, barbershops, hair salons and retail spaces. The system offers versatile installation options and high light output, making it suitable for diverse environments.
Technical Data
| Model No. | Size (L/W/H) mm |
Power (W) |
CCT (K) |
Lumen (Lm) |
Effi. (Lm/w) |
PF | CRI | Beam Angle | DIM | IP | Energy Class | Code |
| LD 06-12 | 58/70/35 | 12 | 4000K | 1200 | 100 | ≥0.7 | 80 | 120° | No | IP20 | E | 120612 |
| LD 12-24 | 1186/70/35 | 24 | 4000K | 2400 | 100 | ≥0.7 | 80 | 120° | No | IP20 | E | 121224 |
| LD 12-40 | 1186/70/35 | 40 | 4000K | 4000 | 100 | ≥0.9 | 80 | 120° | No | IP20 | E | 121240 |
Show more ↓
Show less ↑
Optimize your building’s lighting with our complimentary Dialux EVO simulation service. Submit your DWG file (including detailed floor plans) for a customized illumination and energy efficiency analysis.
| Code | Related Accessories |

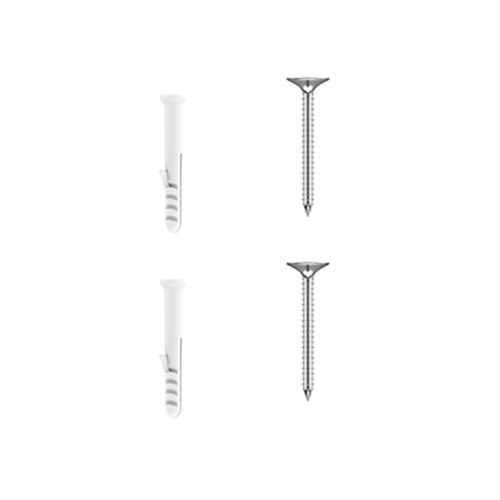

| 140201 | LUDY Expansion Pipe |

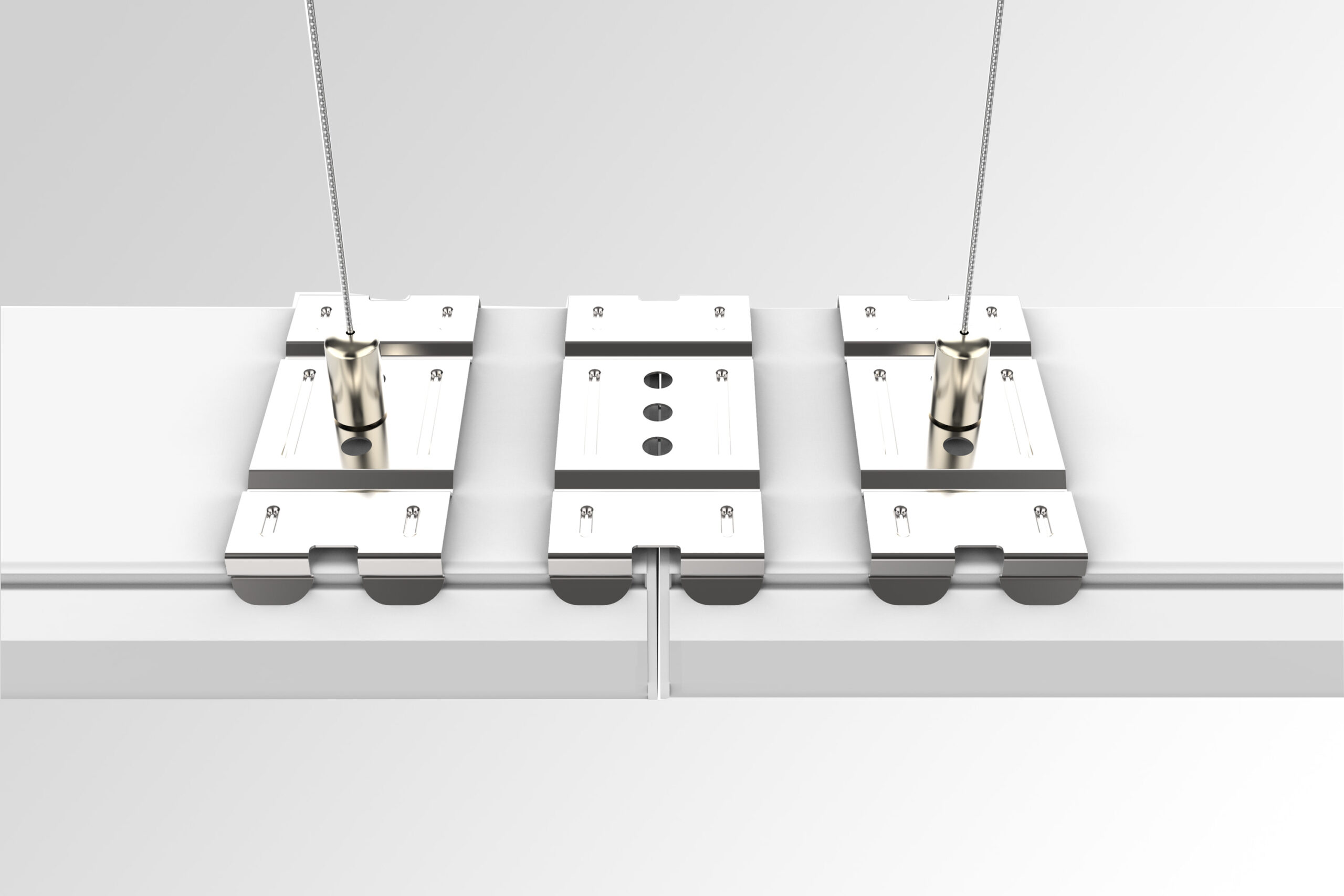

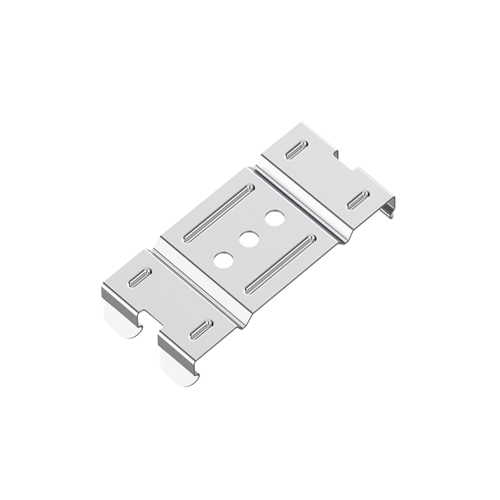

| 140202 | LUDY Buckle |

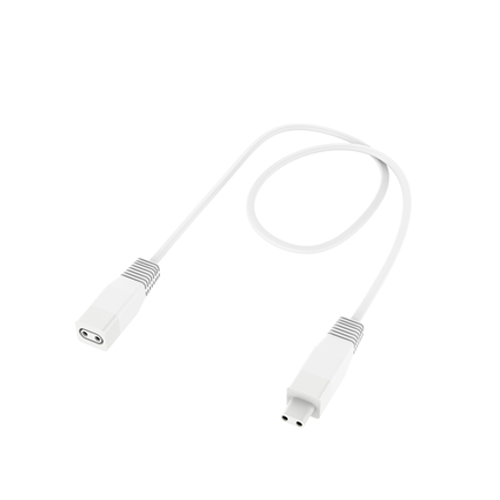

| 140203 | LUDY Linkable Cable |

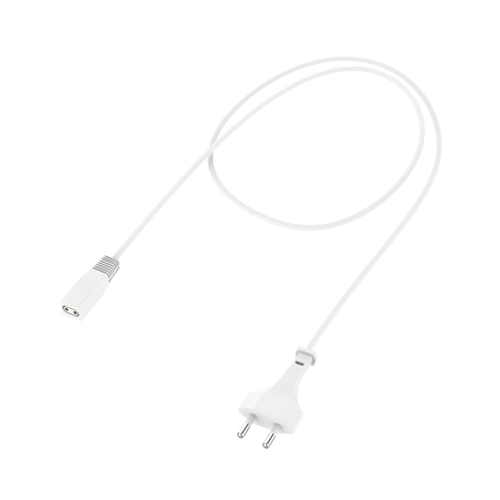

| 140204 | LUDY Power cord |

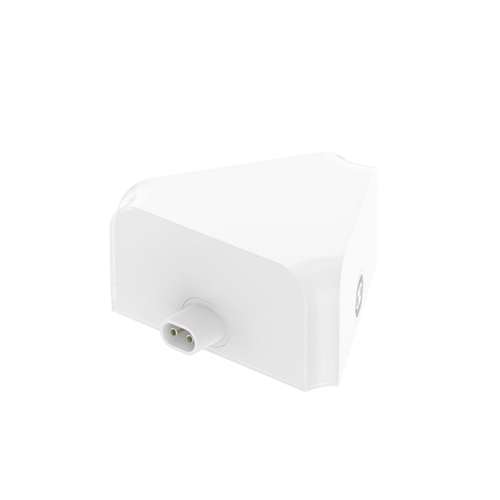

| 140205 | LUDY Triangle adapter |

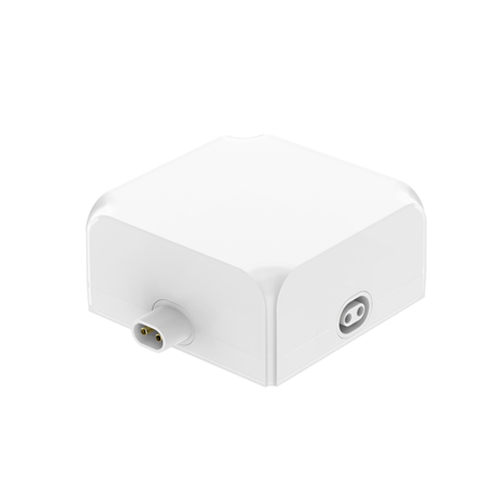

| 140206 | LUDY Quadrilateral adapter |
