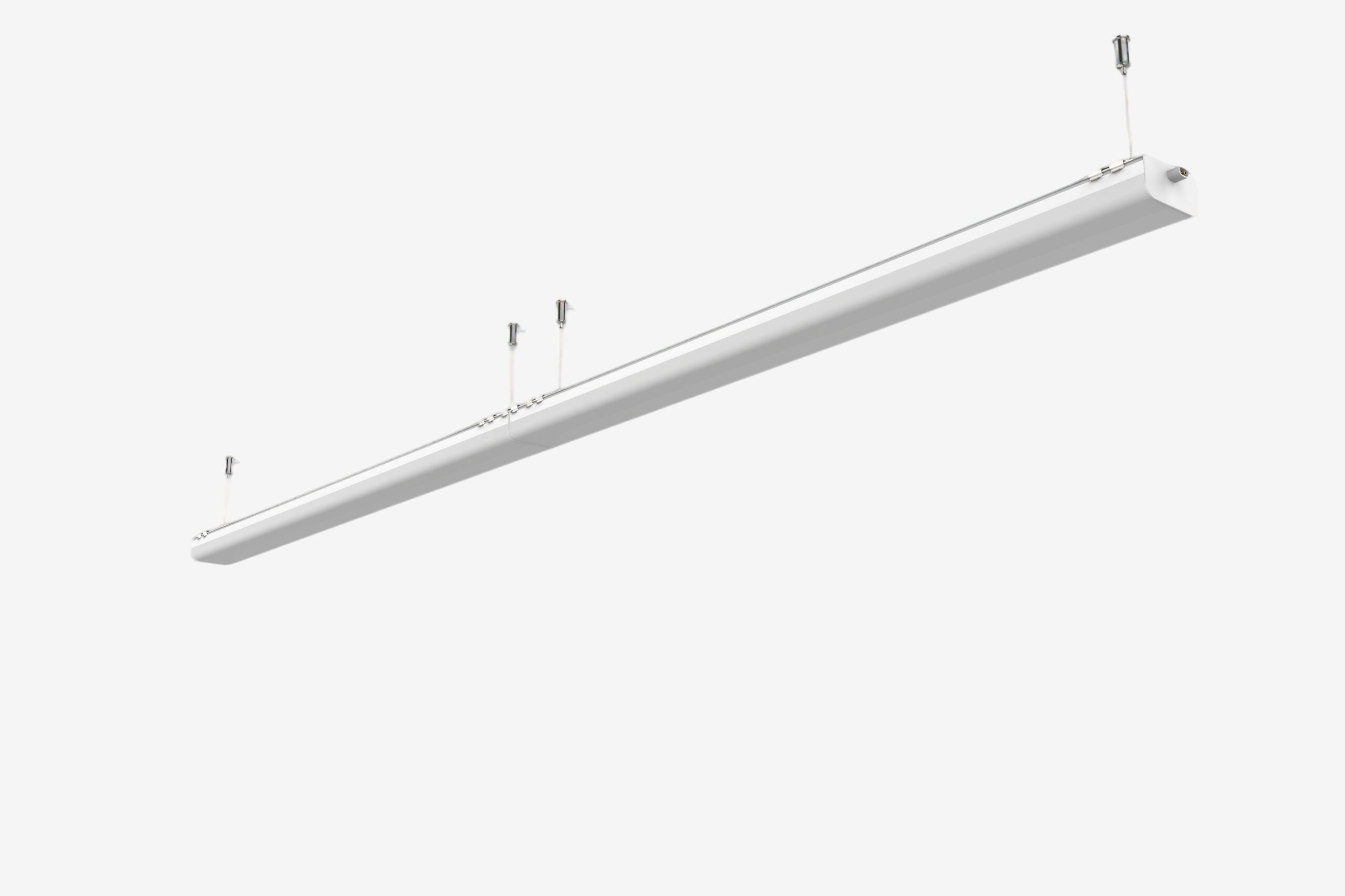

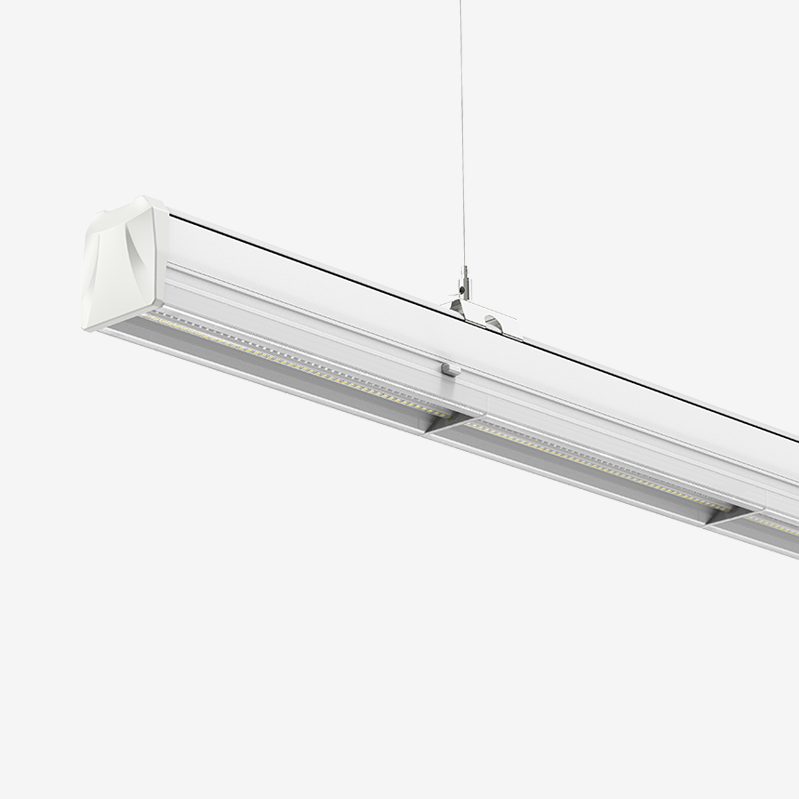

A suspended and surface-mounted lighting system, representing a new generation of LED luminaires.
|
Light source
|
LED |

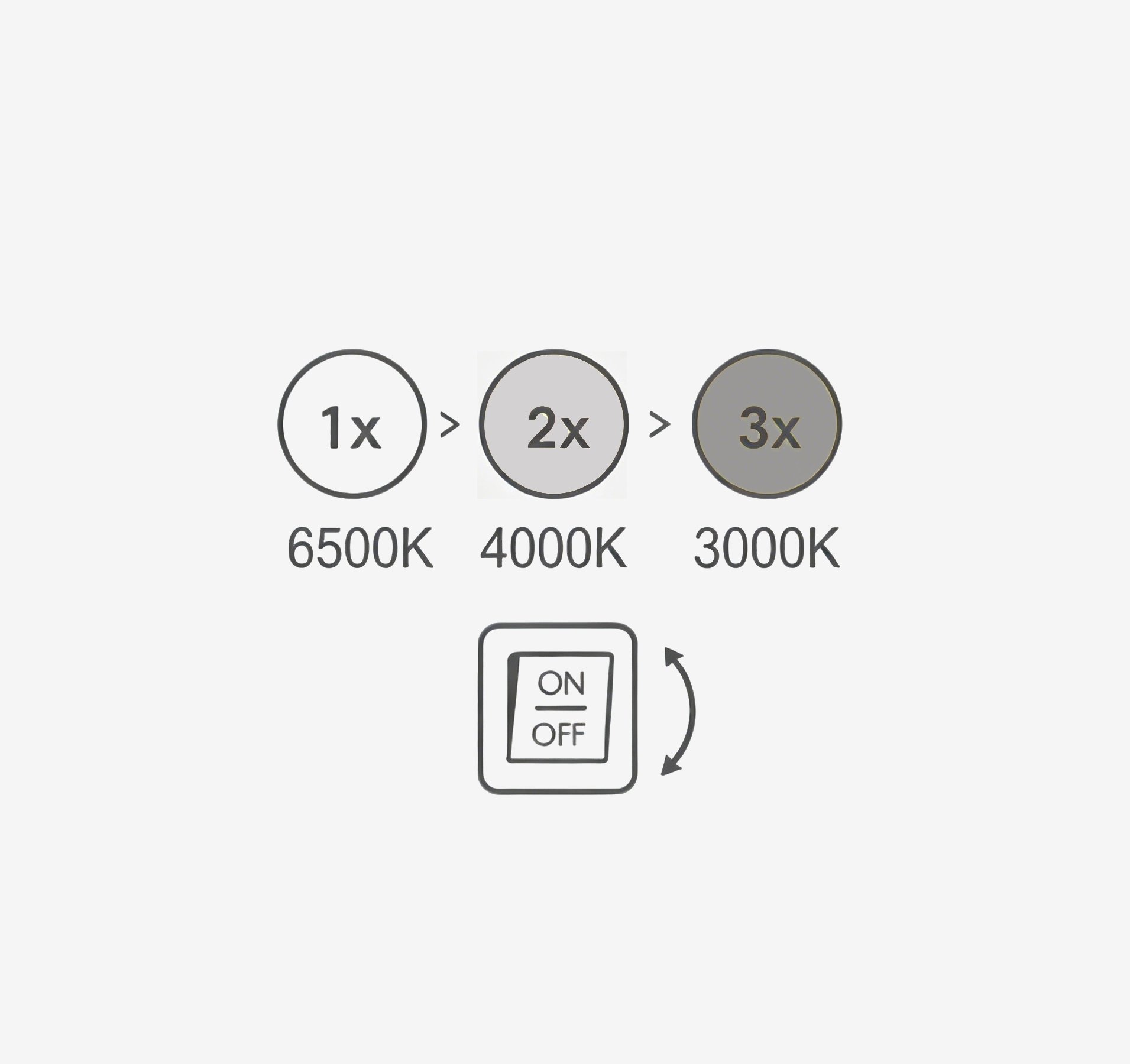

| Colour temperature | 3000K/4000K/5000K |
| Mounting version | Surface, surface or suspended |
| Housing | Alumimum |
| Application | Commercial, industrial |
| Nominal Power[W] | 42-75 |
| Dimensions [mm] | 1197/66/67,1495/66/64 |
Specification

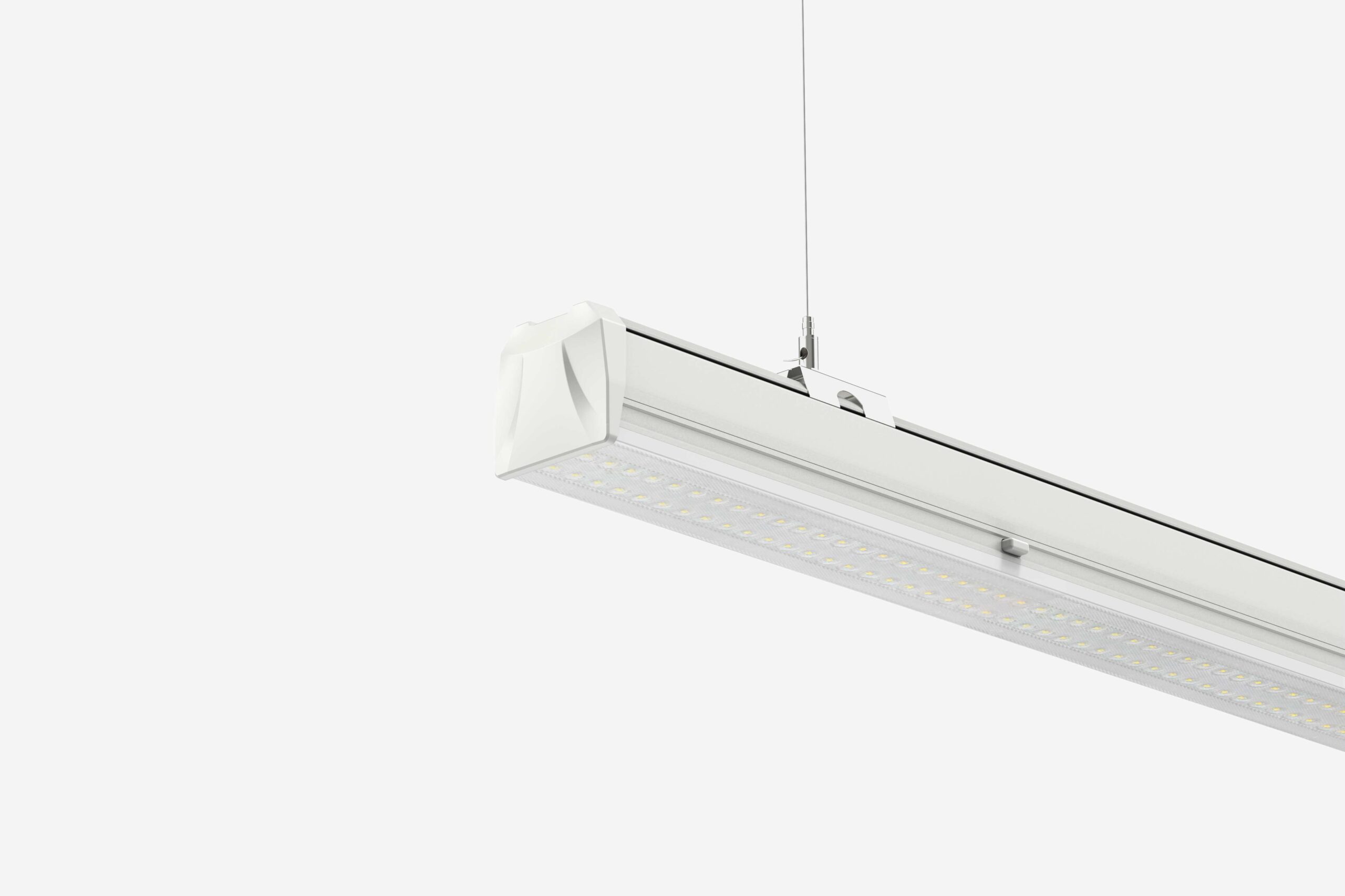

NEVA Linear Trunking is a suspended and surface-mounted lighting system designed for next-generation LED technology. An innovative connector system with through-wiring enables fast and seamless linking of luminaires into continuous lighting lines. Easy installation and power connection are ensured by the smart design concept.

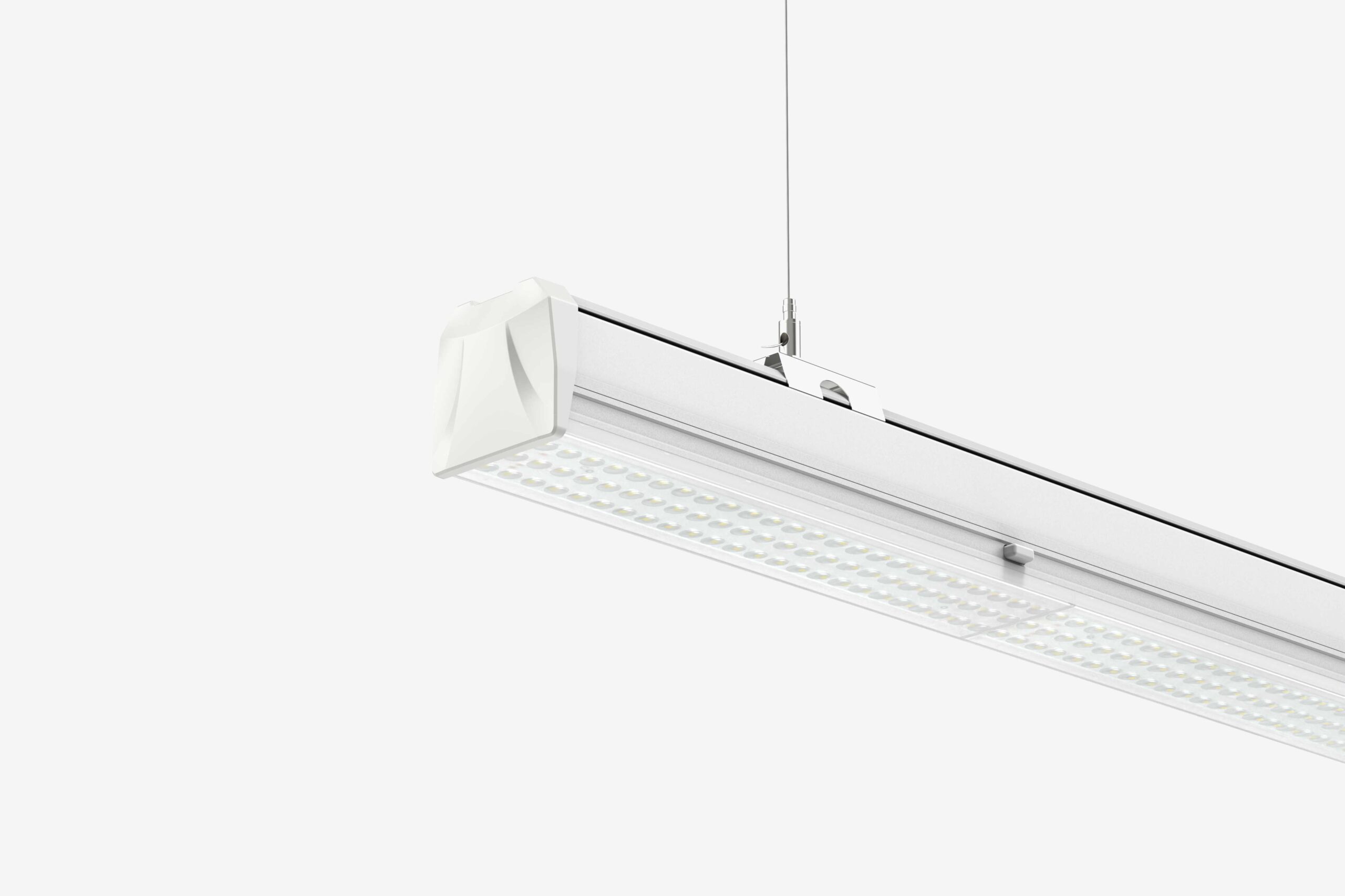

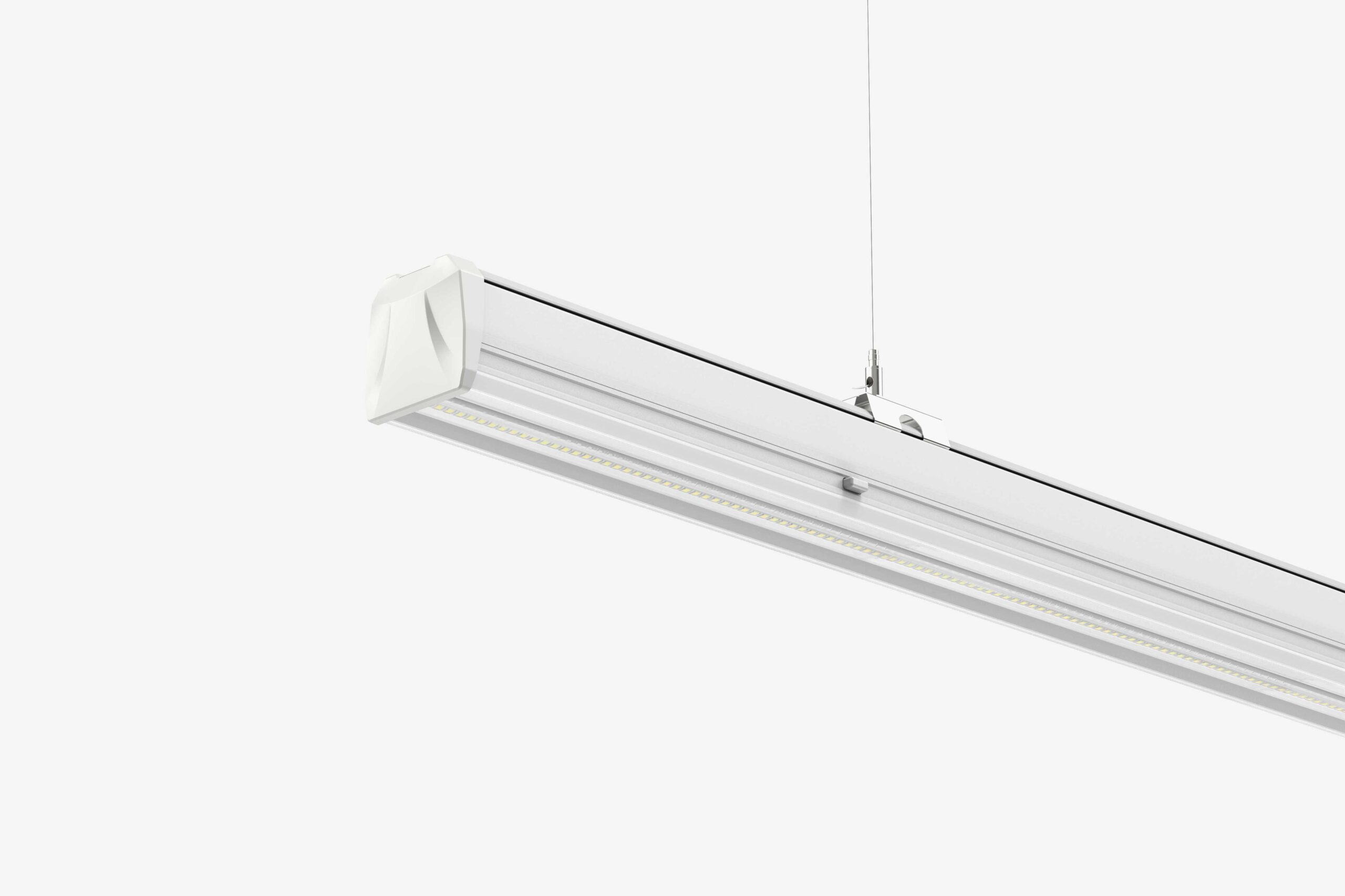

The housing, made of extruded aluminum, provides strength and durability, while the slim side profile allows installation in confined or hard-to-reach spaces. Integrated LEDs from reputable manufacturers combined with newly developed LED modules deliver high luminous efficacy, ensuring required light levels with significant energy savings. The optical system is made of UV-resistant PMMA.
Options
| Model No. | Rated Power of the Luminaire (W) | Colour Temperature (K) | Luminous Flux (Lm) | Optics | DIMM DALI | Through Wiring | Dimensions (H/W/T) [mm] | Code |
| NV12-42C3K3W | 42 | 3000K/4000K/5000K | 6720/8100 | Triple.Lens. | Optional | LS2 5P | 64/66/1197 | 112342 |
| NV15-50C3K3W | 50 | 3000K/4000K/5000K | 8000/10000 | Triple.Lens. | Optional | LS2 5P | 64/66/1495 | 113350 |
| NV15-75C3K3W | 75 | 3000K/4000K/5000K | 12000/1500 | Triple.Lens. | Optional | LS2 5P | 64/66/1495 | 113375 |
Optimize your building’s lighting with our complimentary Dialux EVO simulation service. Submit your DWG file (including detailed floor plans) for a customized illumination and energy efficiency analysis.
Supermarket, Retail Store, Car Showroom, Grocery Store and other indoor lighting projects
| Code | Related Accessories |

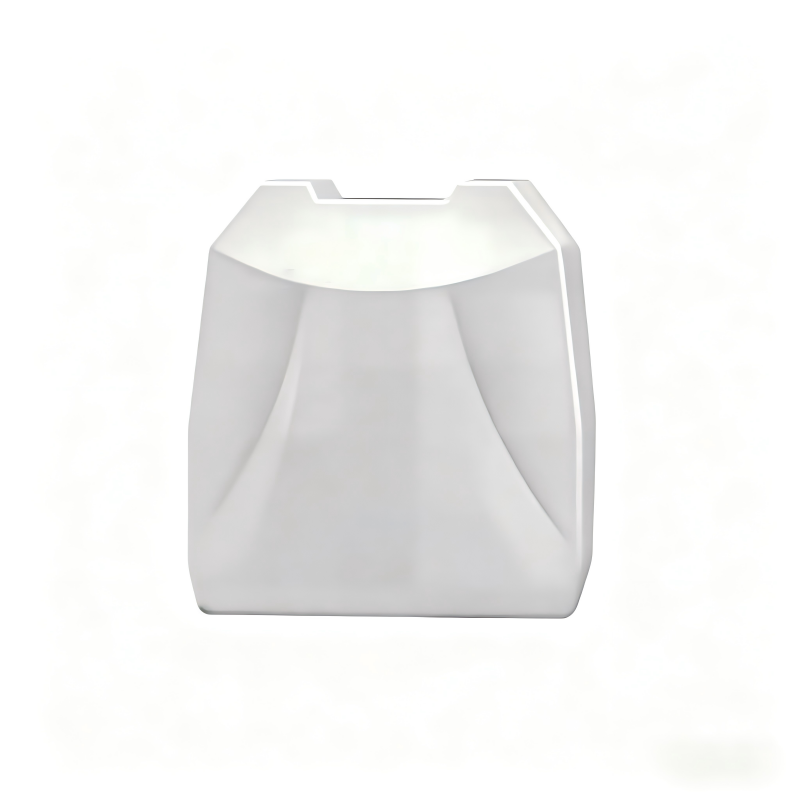

| 123456 | NEVA End Cap |

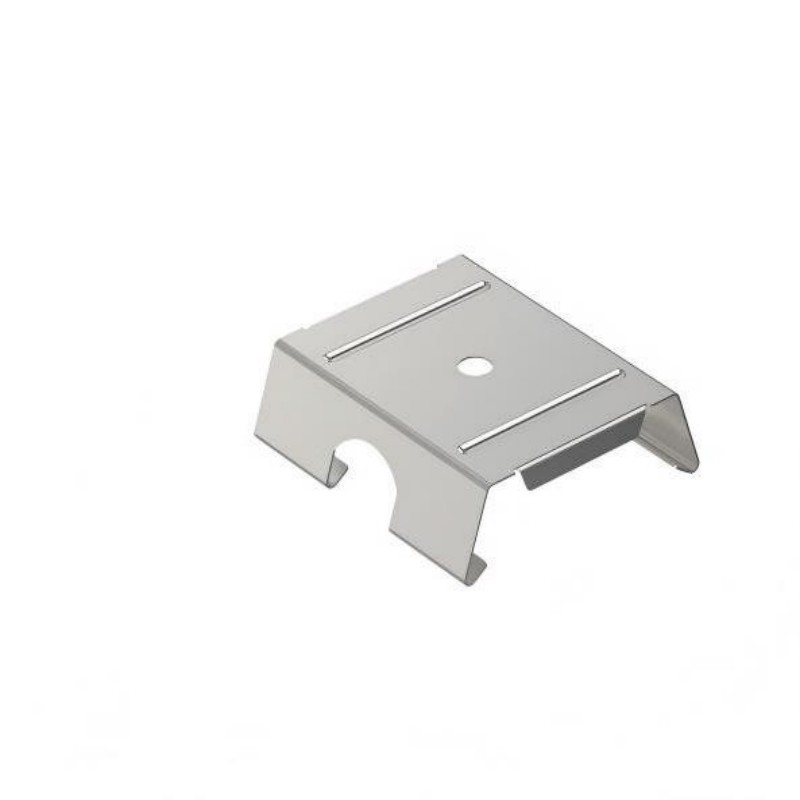

| 123456 | NEVA Mounting clip |

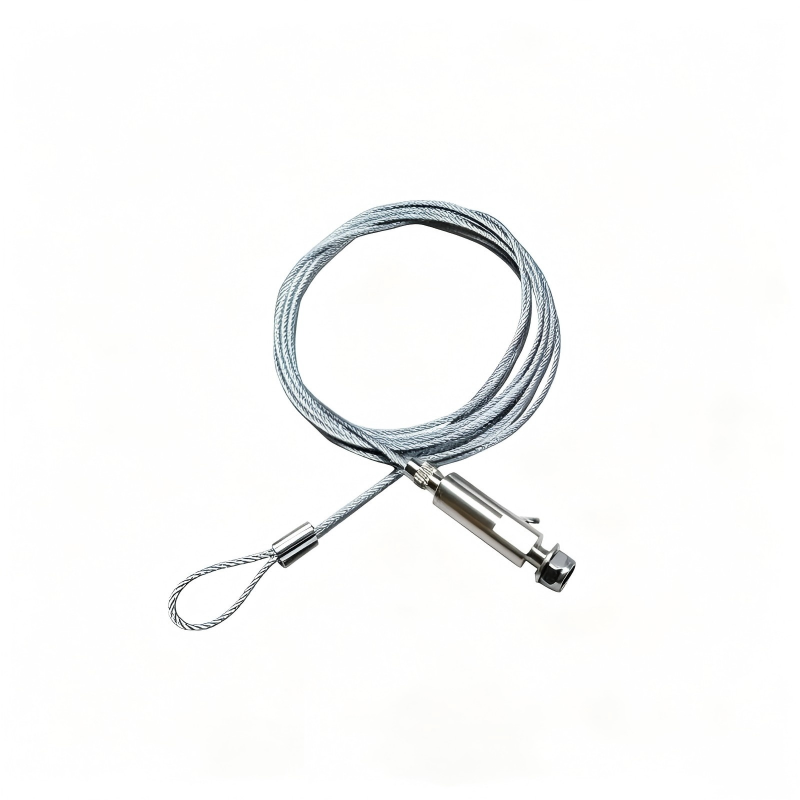

| 123456 | NEVA suspension cable |
