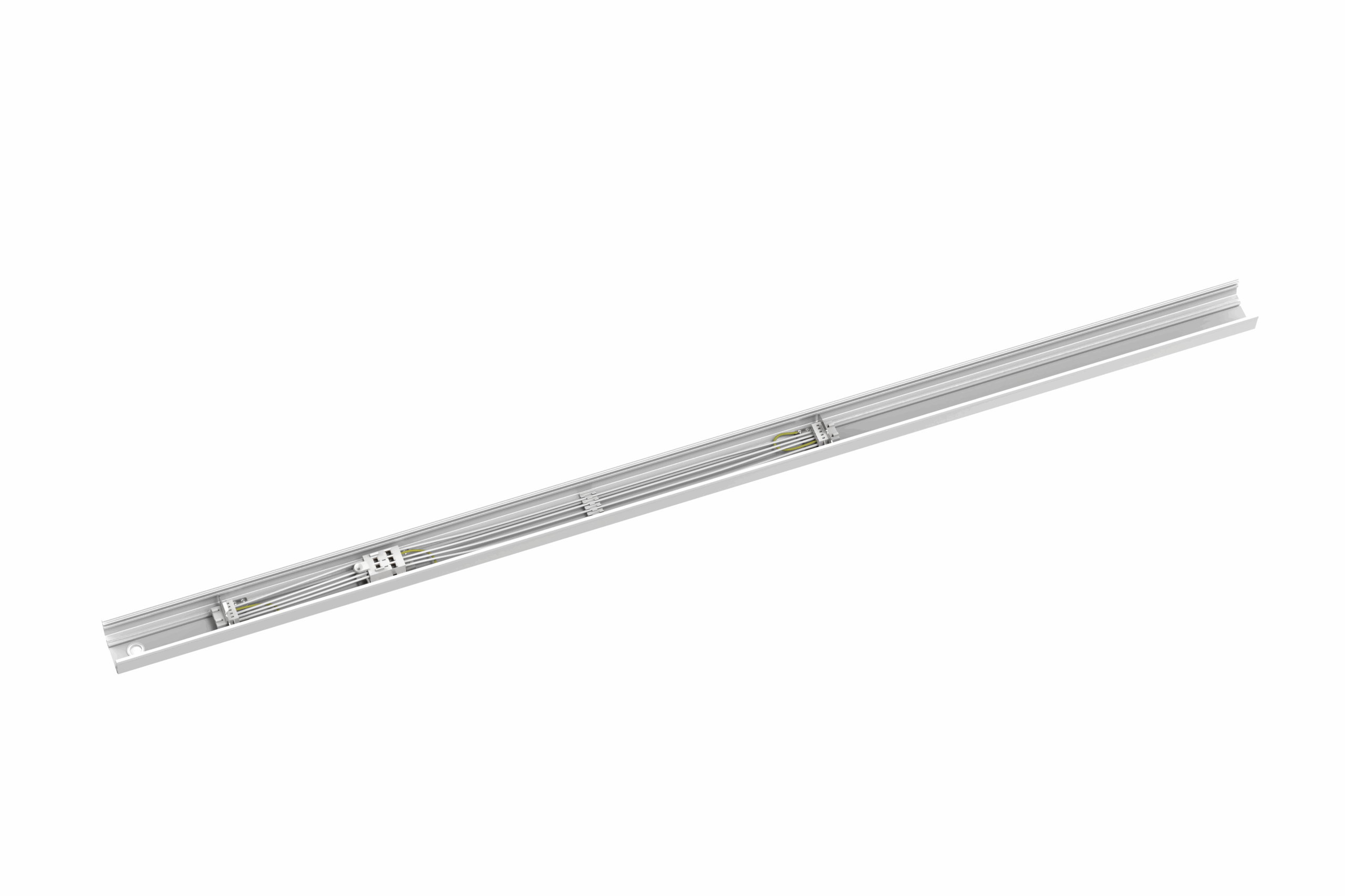

NEVA LED Linear Trunking System has a continuous power supply. Optionally 5-pole – matched to the respective application, for four circuits, DALI and emergency light or other additional functions. The gear trays ca n be freely positioned and make absolutely reliable electrical contact. The feed-in is flexible without visible interference points or collisions.
Technical Data
| Model No. | Size (A*B*Cmm) |
Power (W) |
Flux (lm) |
Efficiency (lm/w) |
Voltage (V) |
PF | IP | CRI | Beam Angel | Energy Class |
Code |
| NV12-42C3K3W | 1198*66*66 | 42 | 6720/8400 | 160/200 | 220-240 | ≥0.9 | IP20 | 80 | 90° | D/B | 112342 |
| NV15-50C3K3W | 1498*66*66 | 50 | 8000/10000 | 160/200 | 220-240 | ≥0.9 | IP20 | 80 | 90° | D/B | 113350 |
| NV15-75C3K3W | 1496*66*66 | 75 | 12000/15000 | 160/200 | 220-240 | ≥0.9 | IP20 | 80 | 90° | D/B | 113375 |
Optimize your building’s lighting with our complimentary Dialux EVO simulation service. Submit your DWG file (including detailed floor plans) for a customized illumination and energy efficiency analysis.
Supermarket, Retail Store, Car Showroom, Grocery Store and other indoor lighting projects
