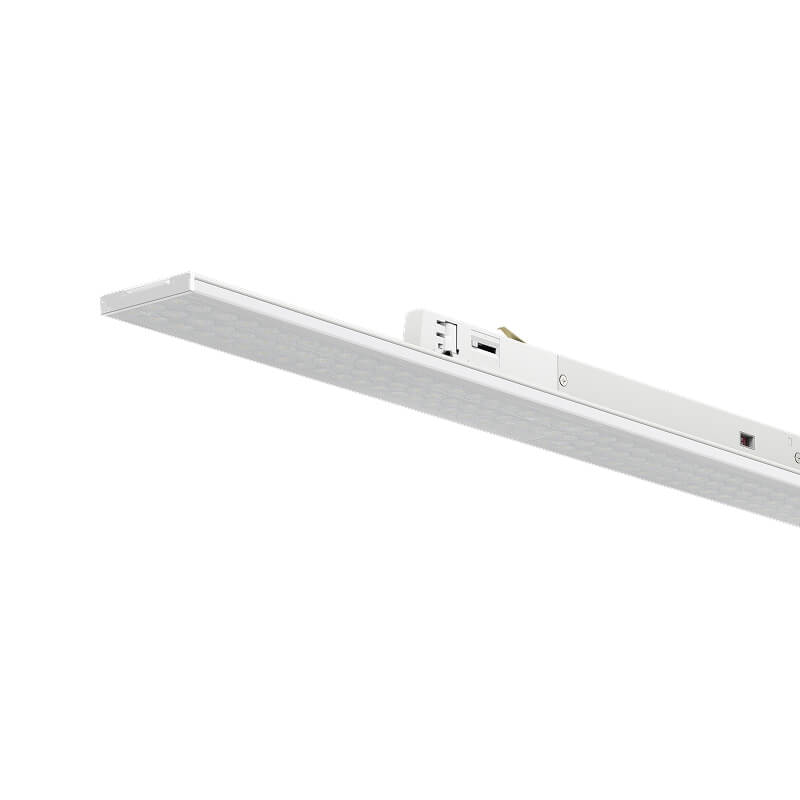

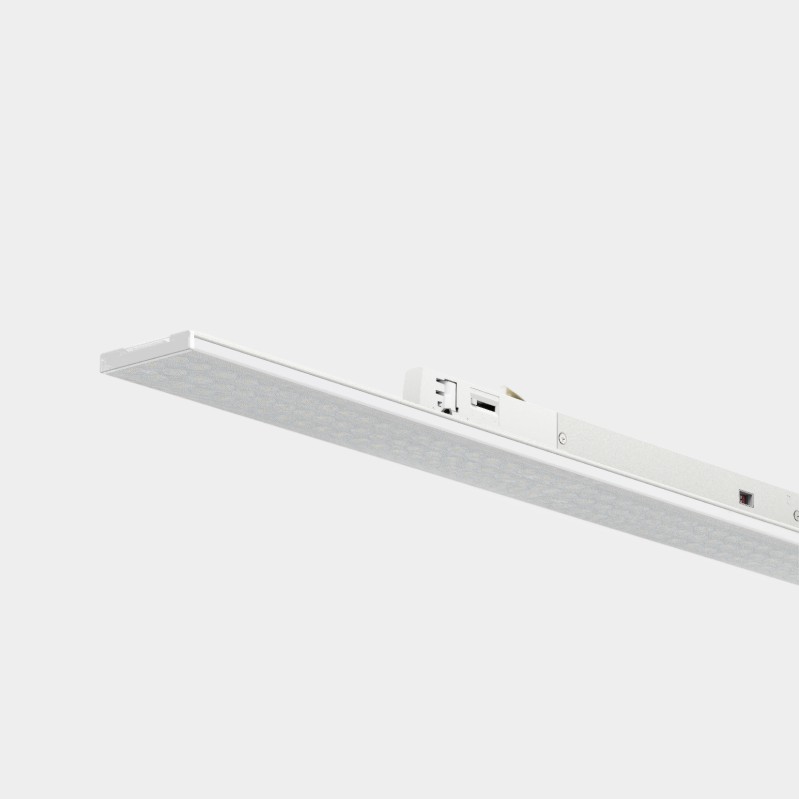

The LED Linear Track Light features a separated module design with track, offering a continuous line system that enhances flexibility and functionality. With its new trunking system, the geartrays can be freely positioned, ensuring future-proof current routing.
The simplified, tool-free mounting and disassembly saves significant installation time while maintaining ease of use.
Additionally, it achieves a single tilting angle of 30° and can be flexibly combined with track spotlights on the same track rail, making it a versatile and efficient lighting solution for various settings. Innovative wire way profiles allow for maximum flexibility and easy installation.
Technical Data
| Model No. | Size (A*B*Cmm) |
Power (W) |
Flux (lm) |
Efficiency (lm/w) |
Voltage (V) |
PF | IP | CRI | Beam Angel | Energy Class |
Code |
| AS06-24C3K3W | 602*66*45 | 24 | 3840/4440 | 160/185 | 220/240 | ≥0.9 | IP20 | 80 | 90° | D/B | 101342 |
| AS12-42C3K3W | 1198*66*45 | 42 | 6720/7770 | 160/185 | 220/240 | ≥0.9 | IP20 | 80 | 90° | D/B | 102342 |
| AS12-55C3K3W | 1198*66*45 | 55 | 8800/10175 | 160/185 | 220/240 | ≥0.9 | IP20 | 80 | 90° | D/B | 102355 |
| AS15-55C3K3W | 1496*66*45 | 55 | 8800/10175 | 160/185 | 220/240 | ≥0.9 | IP20 | 80 | 90° | D/B | 103355 |
| AS15-66C3K3W | 1496*66*45 | 66 | 10560/12210 | 160/185 | 220/240 | ≥0.9 | IP20 | 80 | 90° | D/B | 103366 |
Optimize your building’s lighting with our complimentary Dialux EVO simulation service. Submit your DWG file (including detailed floor plans) for a customized illumination and energy efficiency analysis.
Supermarket, Retail Store, Car Showroom, Grocery Store and other indoor lighting projects
