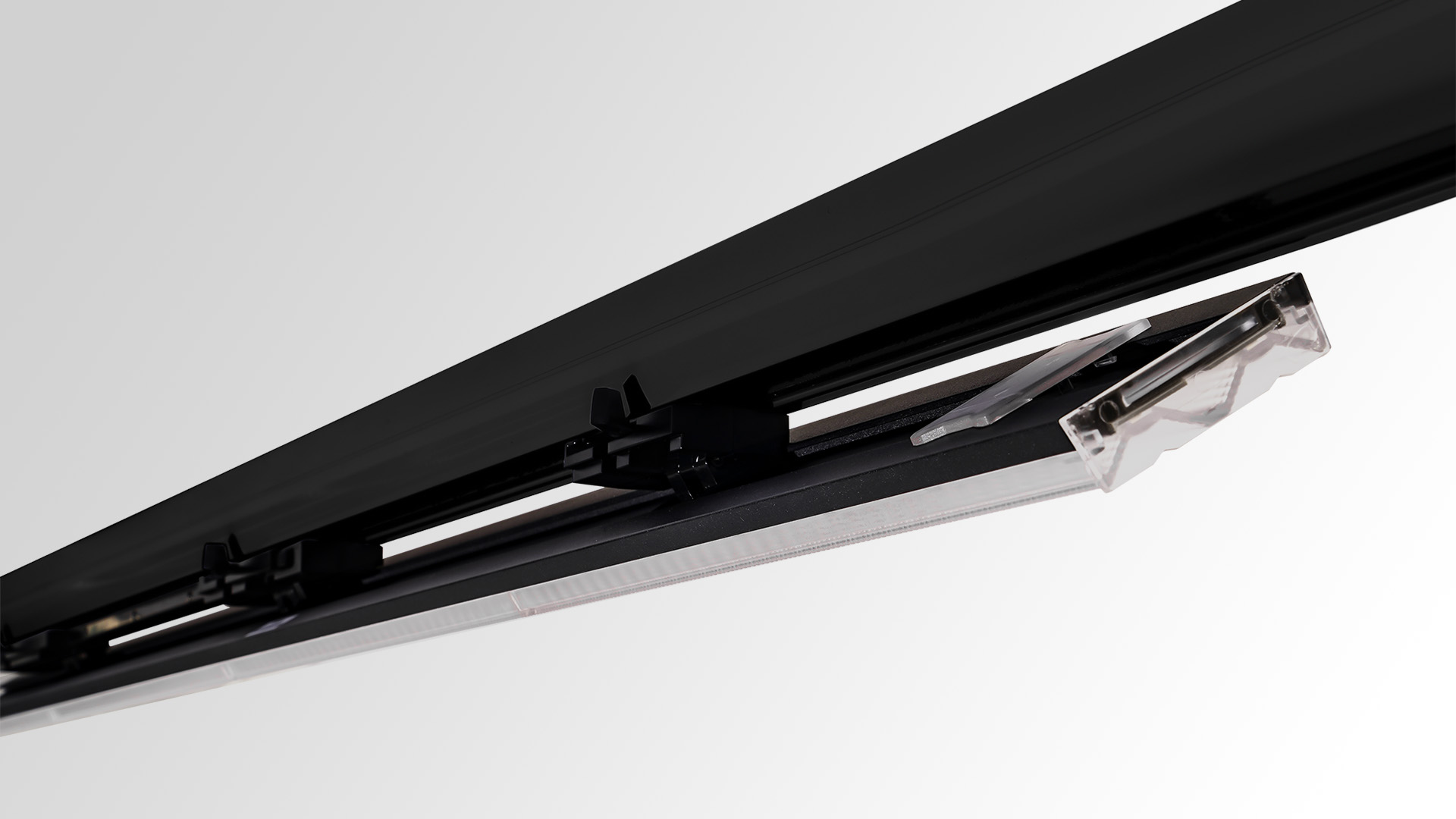

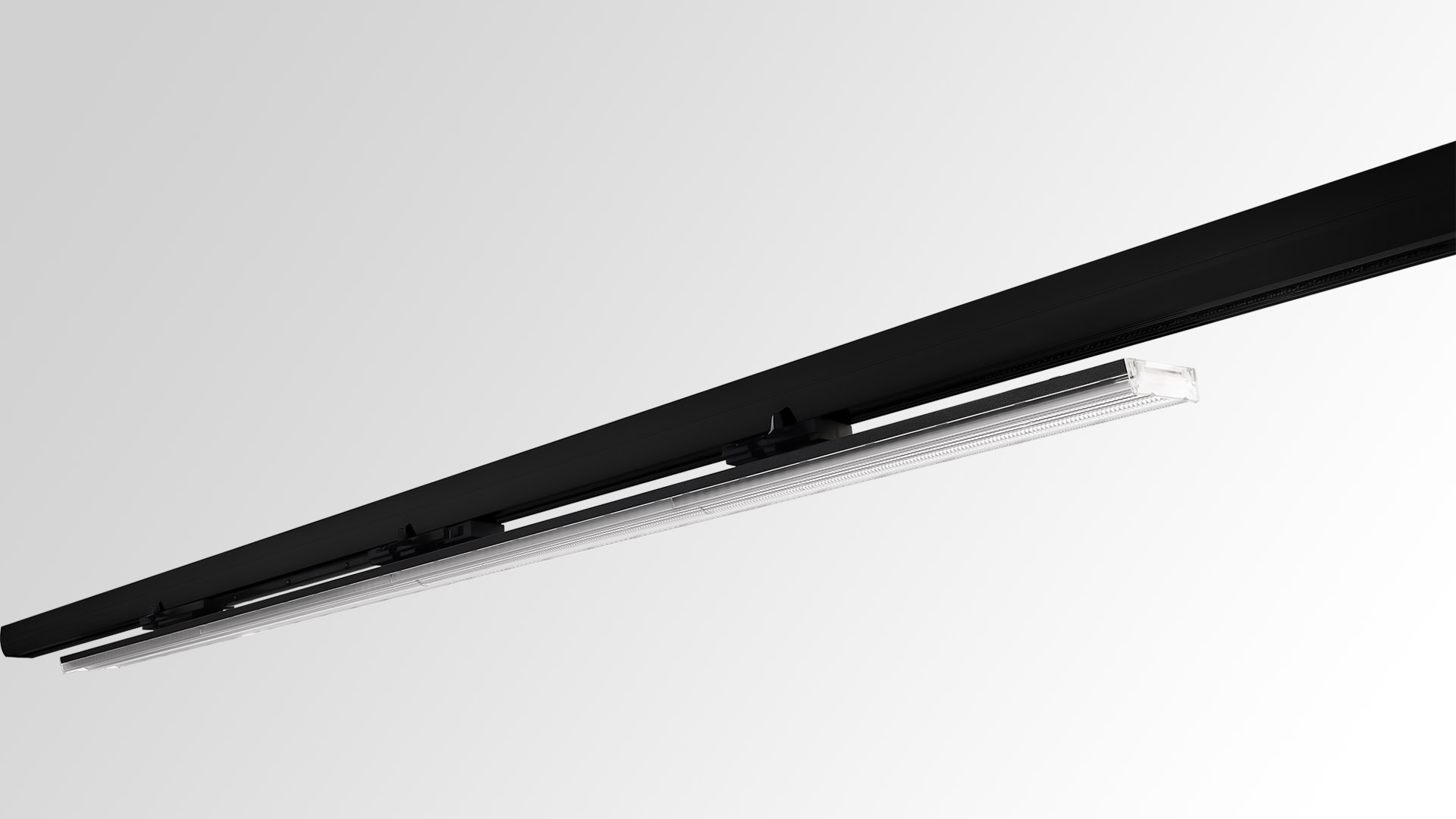

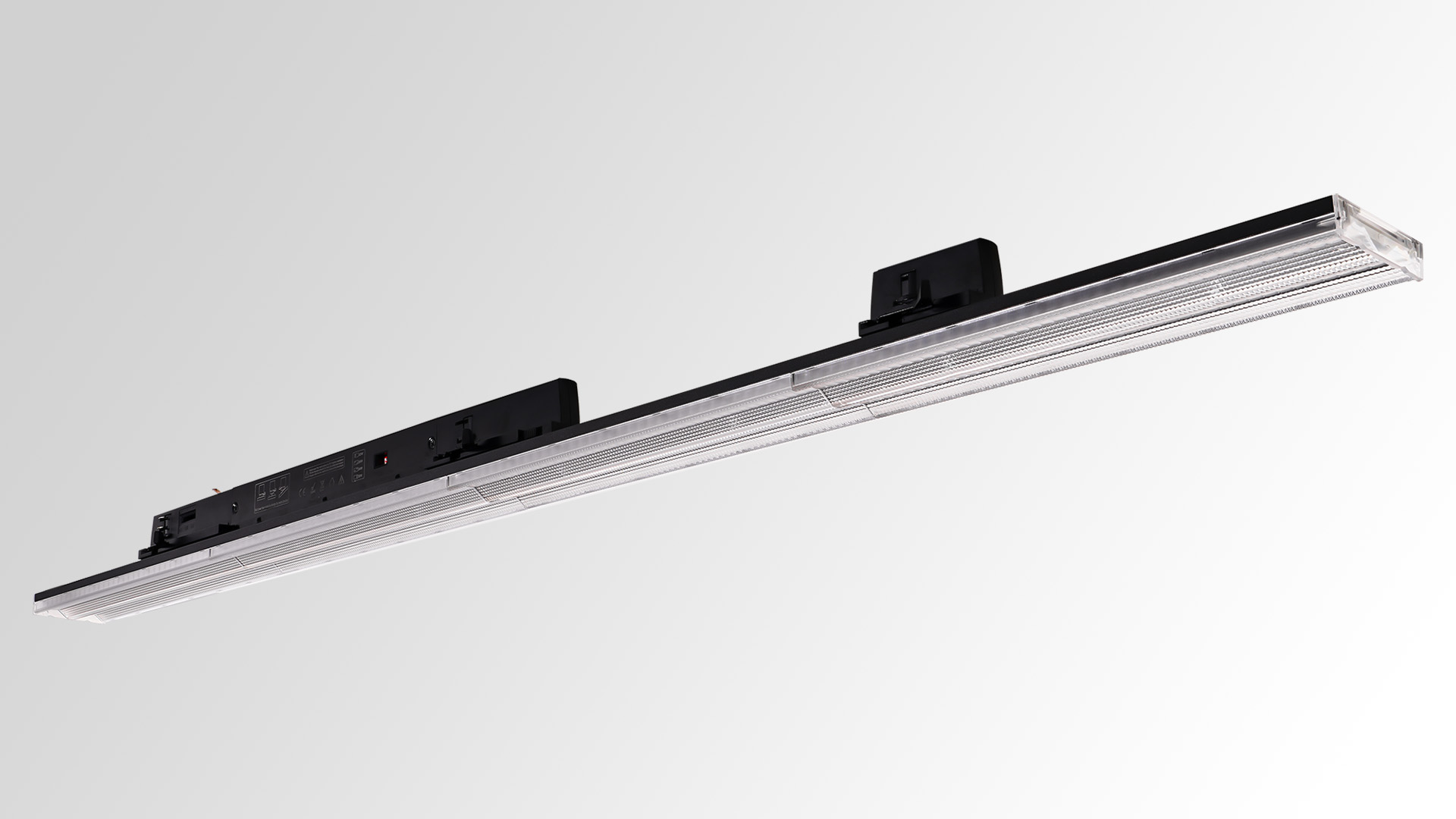

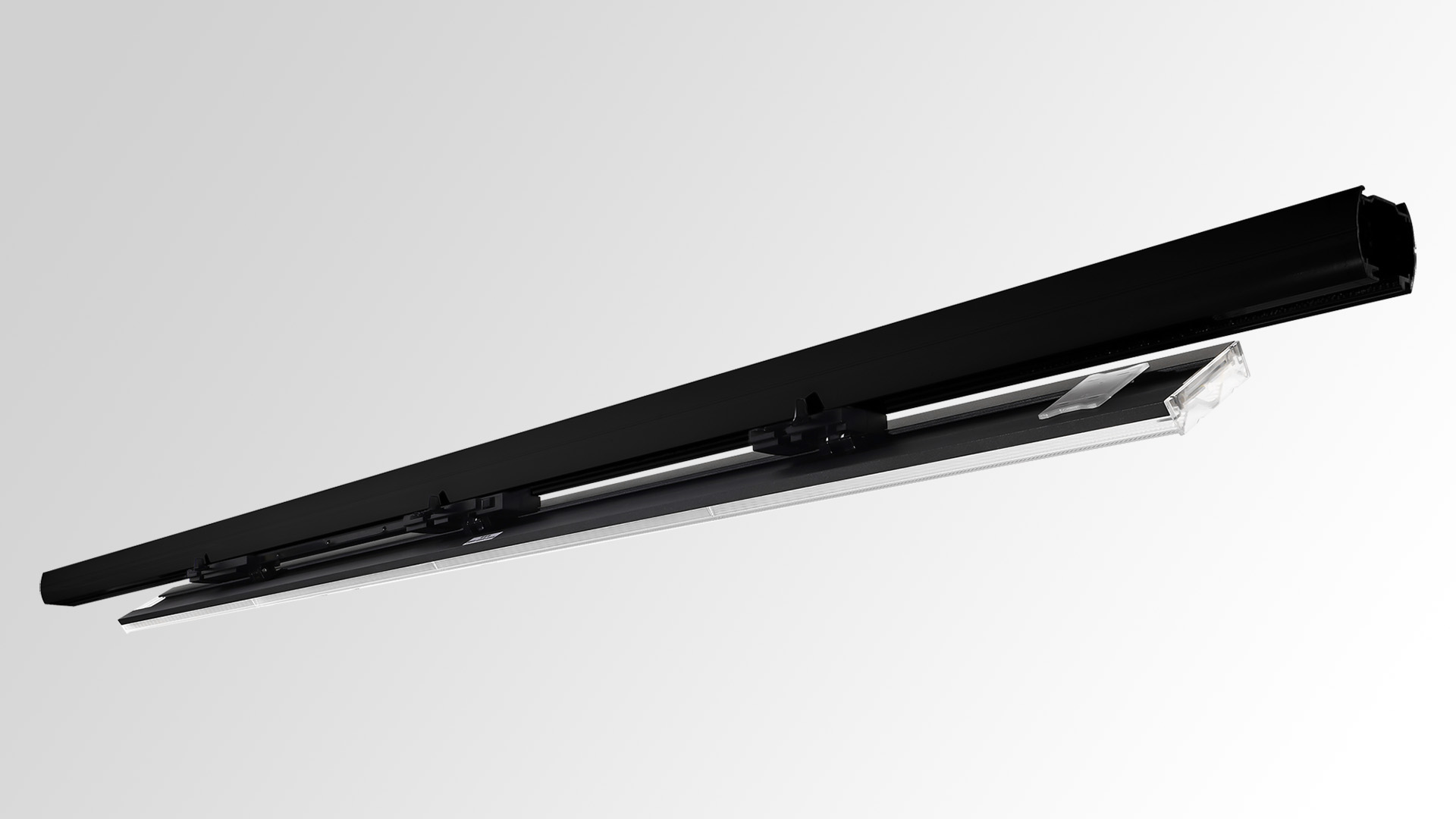

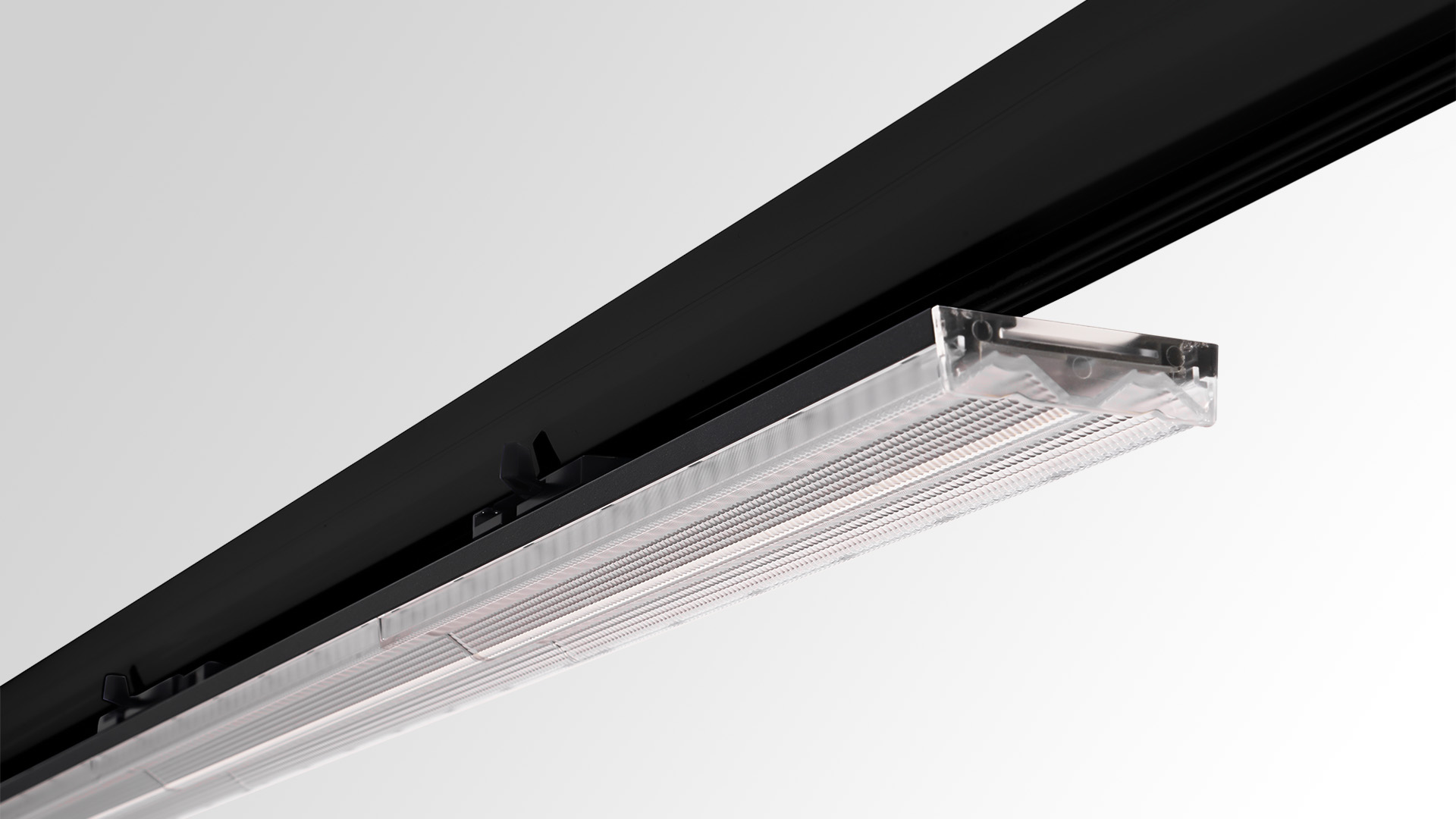

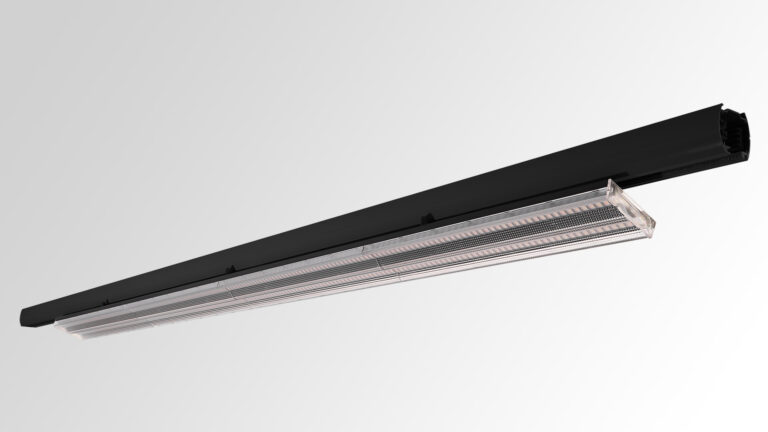

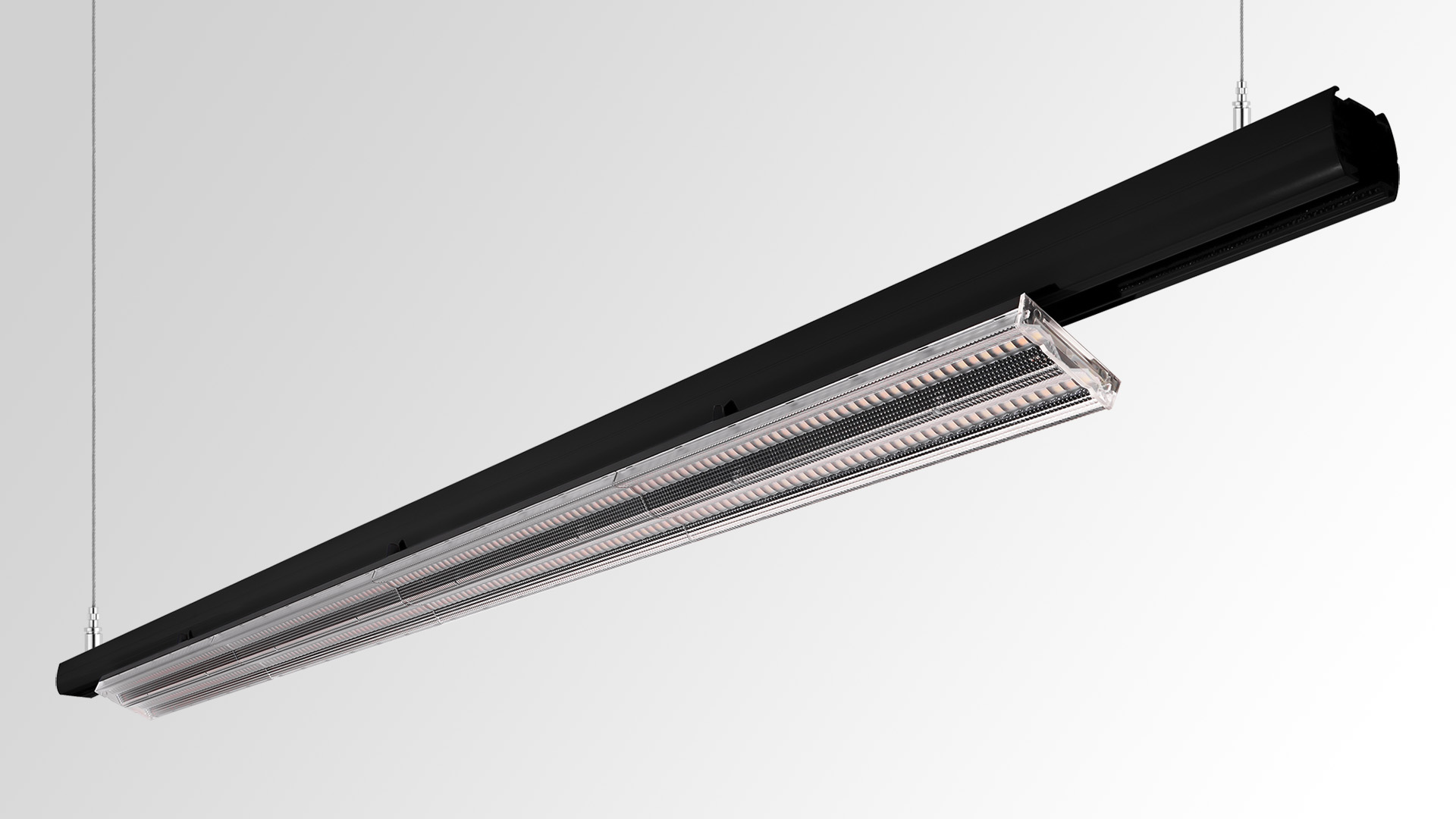

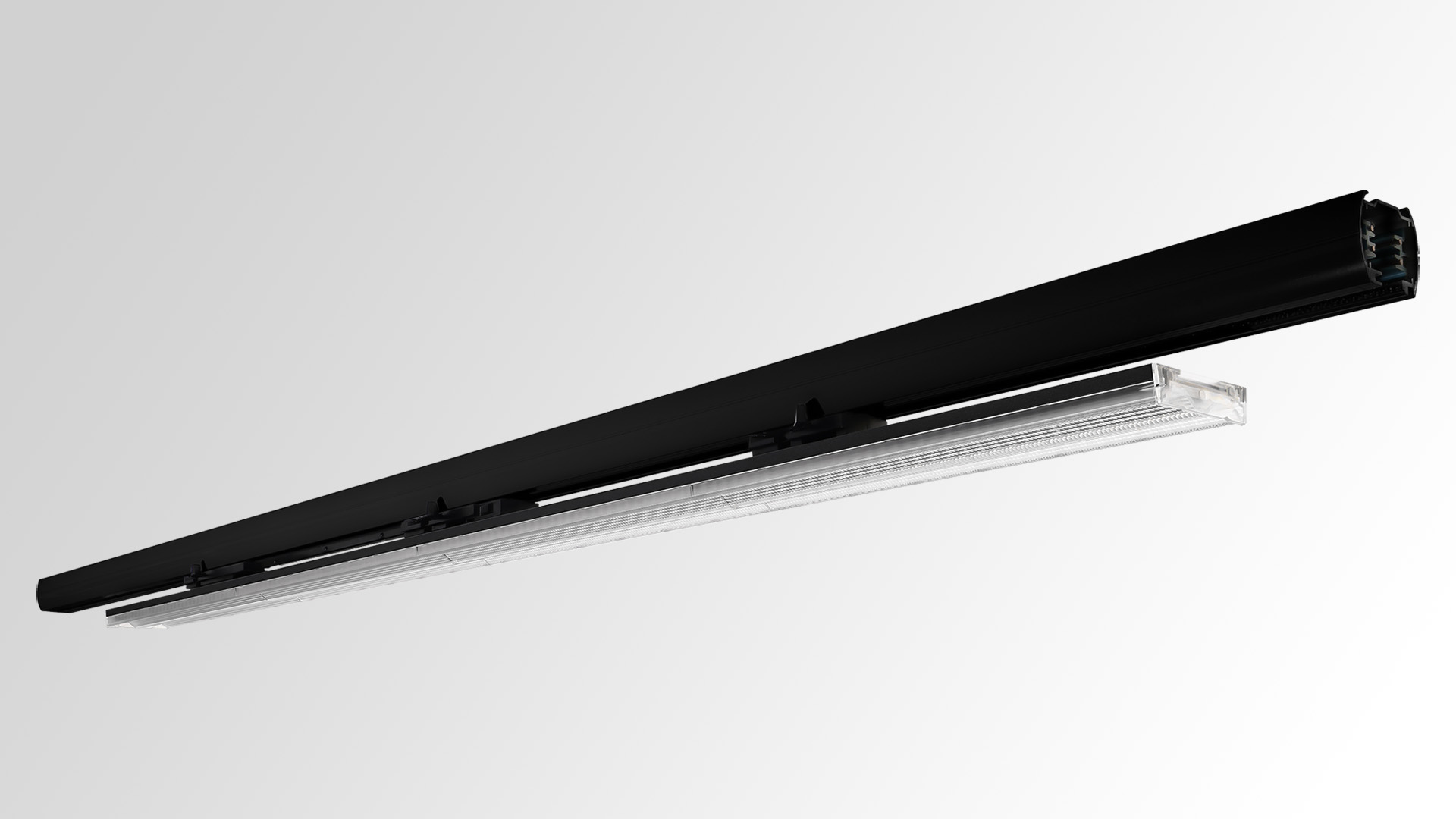

Three-phase track linear light
Linear with Power adjust 66W/42W/24W, CCT adjust,Tilt, black
|
Specification
|
Value |
|
Light Source
|
Integrated LED |
| Nominal Voltage | 220–240 V AC, 50–60 Hz |

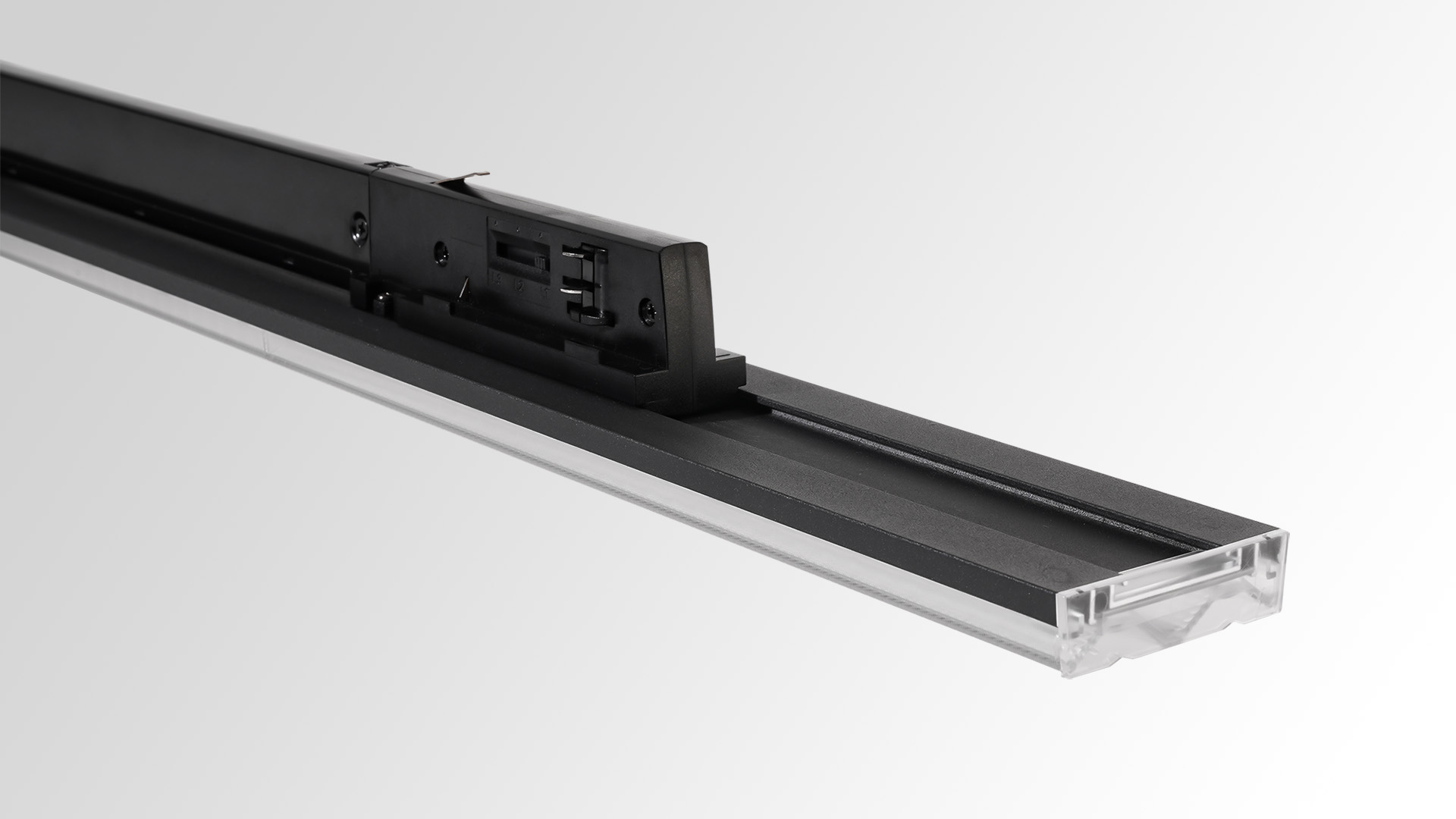

| Mounting Type | Track Mounted |
| Selectable CCT | 3000/4000/5000 K |
| Power | 24 / 42 / 66 W |
| Lifetime | 50,000 hours |
| Warranty | 5 years |
| Applications | Retails, Supermarket, Office, Warehouse |

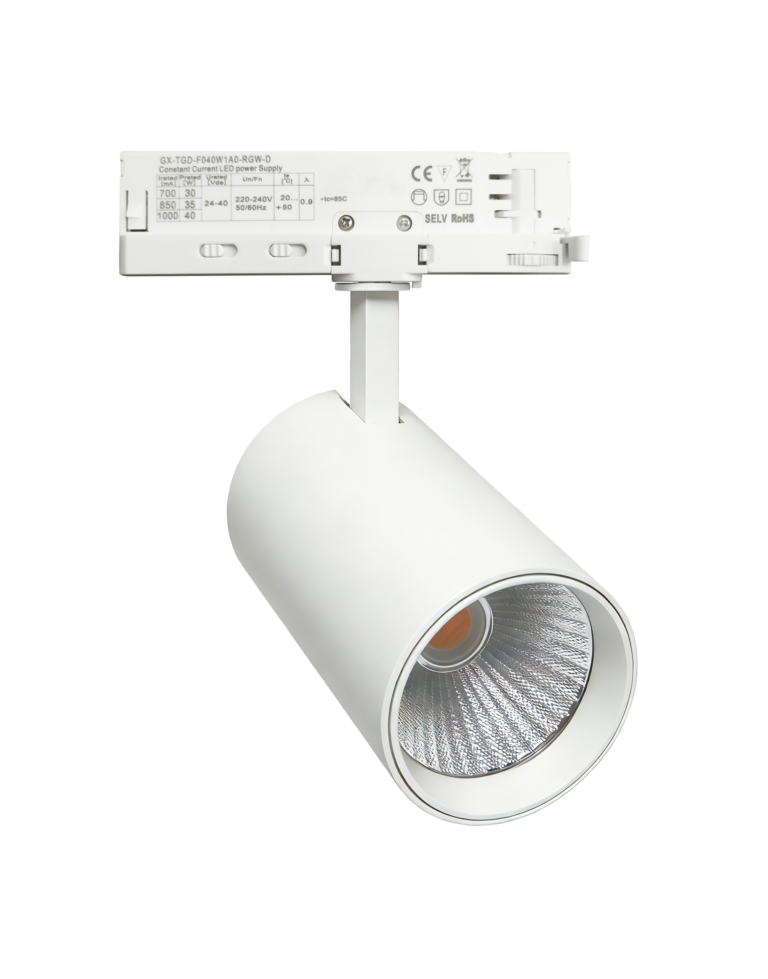

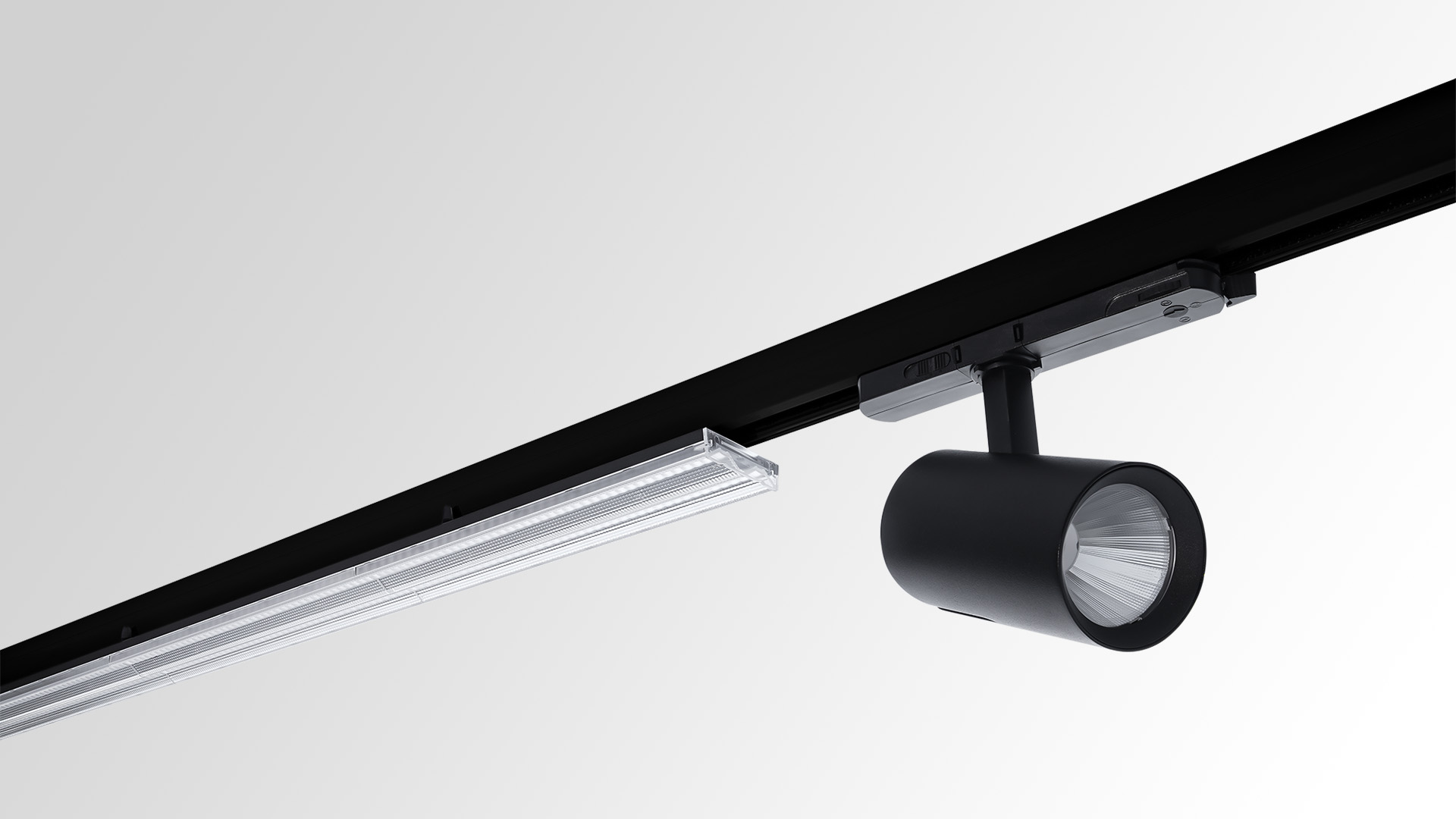

LED linear track light is forming together with the spot luminaires of the same range—a fully compatible and coherent track lighting solution.

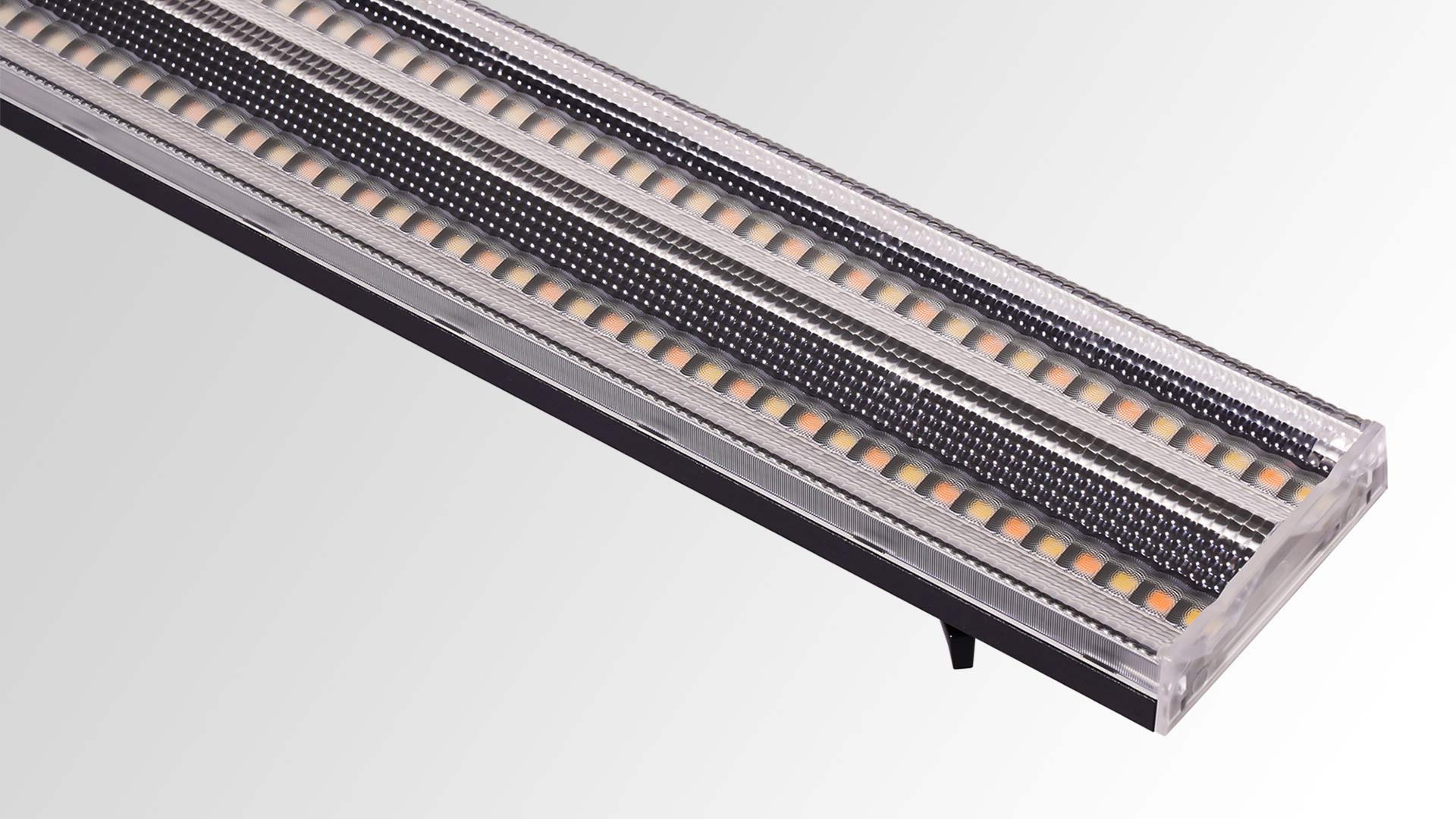

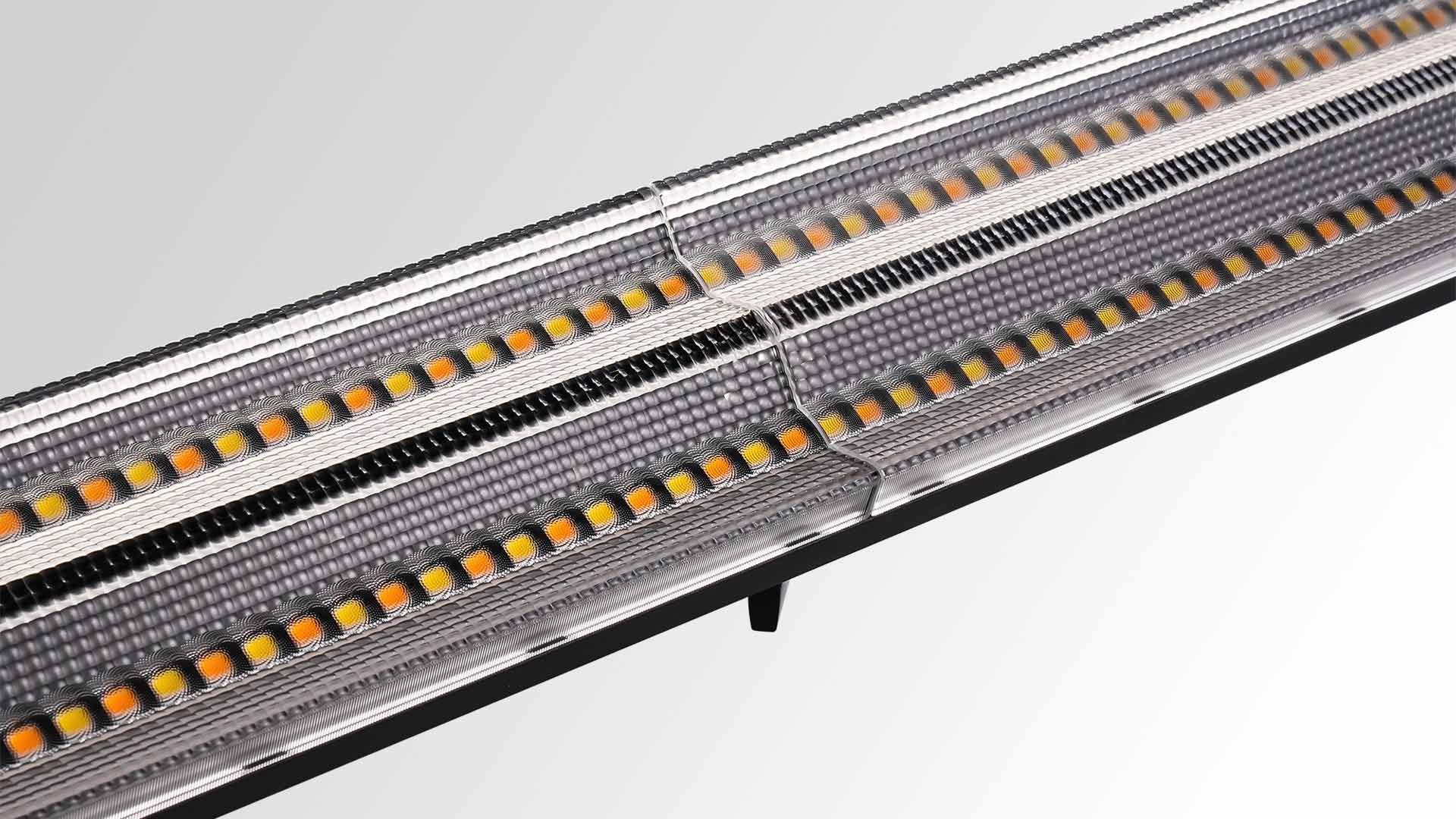

Integrating advanced PRM (Prismatic Lens) optics, this upgraded LED linear track light forms a seamless, fully compatible, and coherent track lighting solution alongside spot luminaires of the same range.
The PRM optical system elevates visual comfort to the next level—delivering exceptional glare control (Low UGR), precise beam distribution, and high-efficiency light output without compromising the clean, architectural aesthetic.
Featuring selectable colour temperature (3CCT) and multi-power settings, the luminaire allows for effortless, accurate adjustments to suit diverse applications—from high-end retail displays and circulation areas to modern offices and showrooms.
| Code | Size (L/W/H)mm |
Power (W) |
CCT (K) |
Lumen (Lm) |
Effi. (Lm/w) |
PF | CRI | Beam Angle | Dimmable | IP | Energy Class | Model No. |
| 111171 | 556/61/56 | 24 | 3000/4000/5000 | 3840/4440 | 140/160 | ≥0.9 | 80 | 90° | No | IP20 | D/B | LT838P-06B24W3C3W |
| 111172 | 1108/61/56 | 42 | 3000/4000/5000 | 6720/7770 | 140/160 | ≥0.9 | 80 | 90° | No | IP20 | D/B | LT838P-12B42W3C3W |
| 111174 | 1386/61/56 | 55 | 3000/4000/5000 | 8800/10175 | 140/160 | ≥0.9 | 80 | 90° | No | IP20 | D/B | LT838P-15B66W3C3W |
Show more ↓
Show less ↑
Optimize your building’s lighting with our complimentary Dialux EVO simulation service. Submit your DWG file (including detailed floor plans) for a customized illumination and energy efficiency analysis.
