Track Light, COB LED, External driver
High efficiency up to 170lm/W, 350° rotation, 90° tilt
|
Light Source
|
COB LED |
| Nominal Voltage | 220-240 V/AC |
| Mounting Type | Track Mounted |
| Beam Angle | 24°, 36°, 40°, 45°, 60° |
| CRI | ≥90 |
| Rotation | 350° horizontal, 90° vertical |
| Application | Retail stores, clothing boutiques, galleries, showrooms |

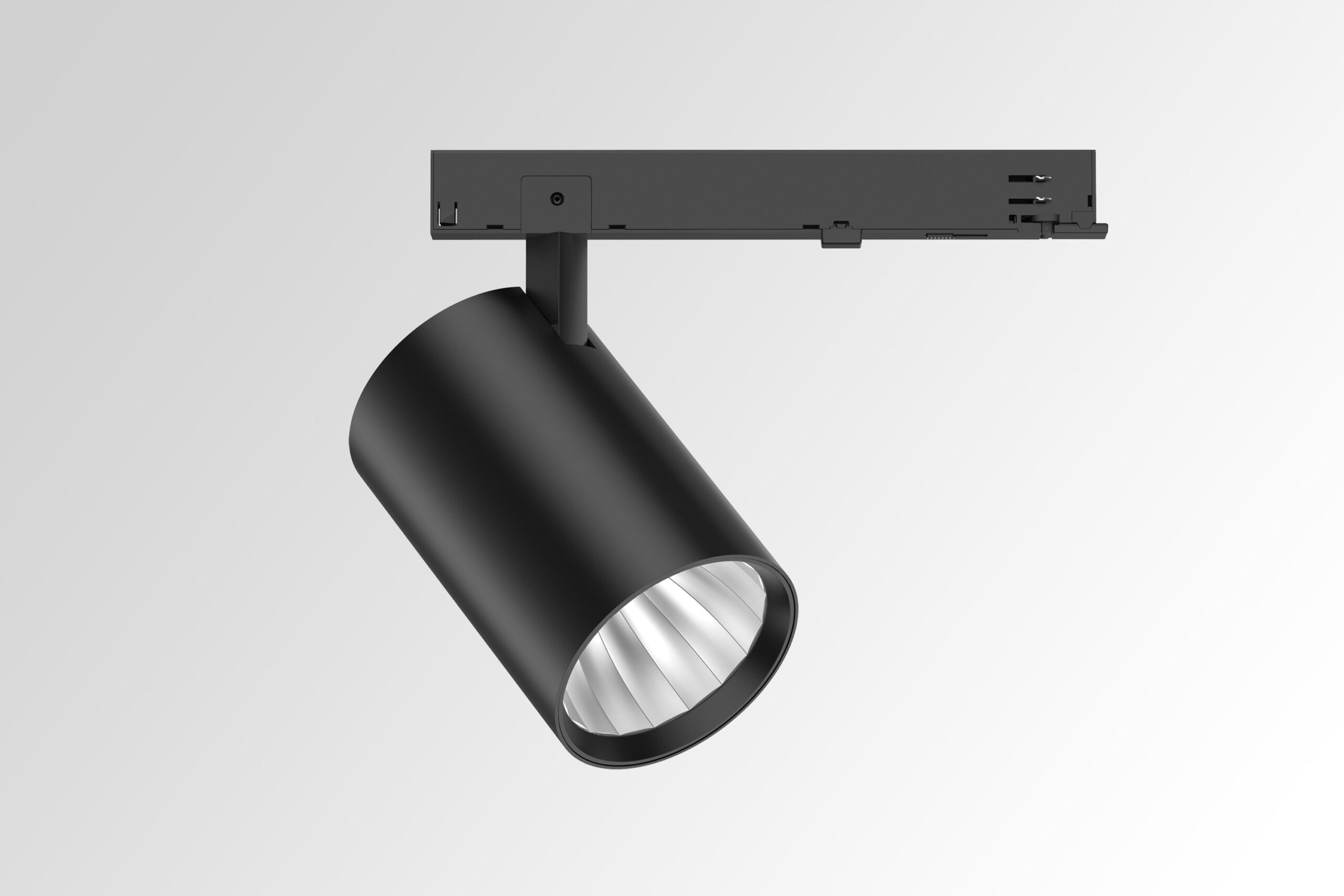

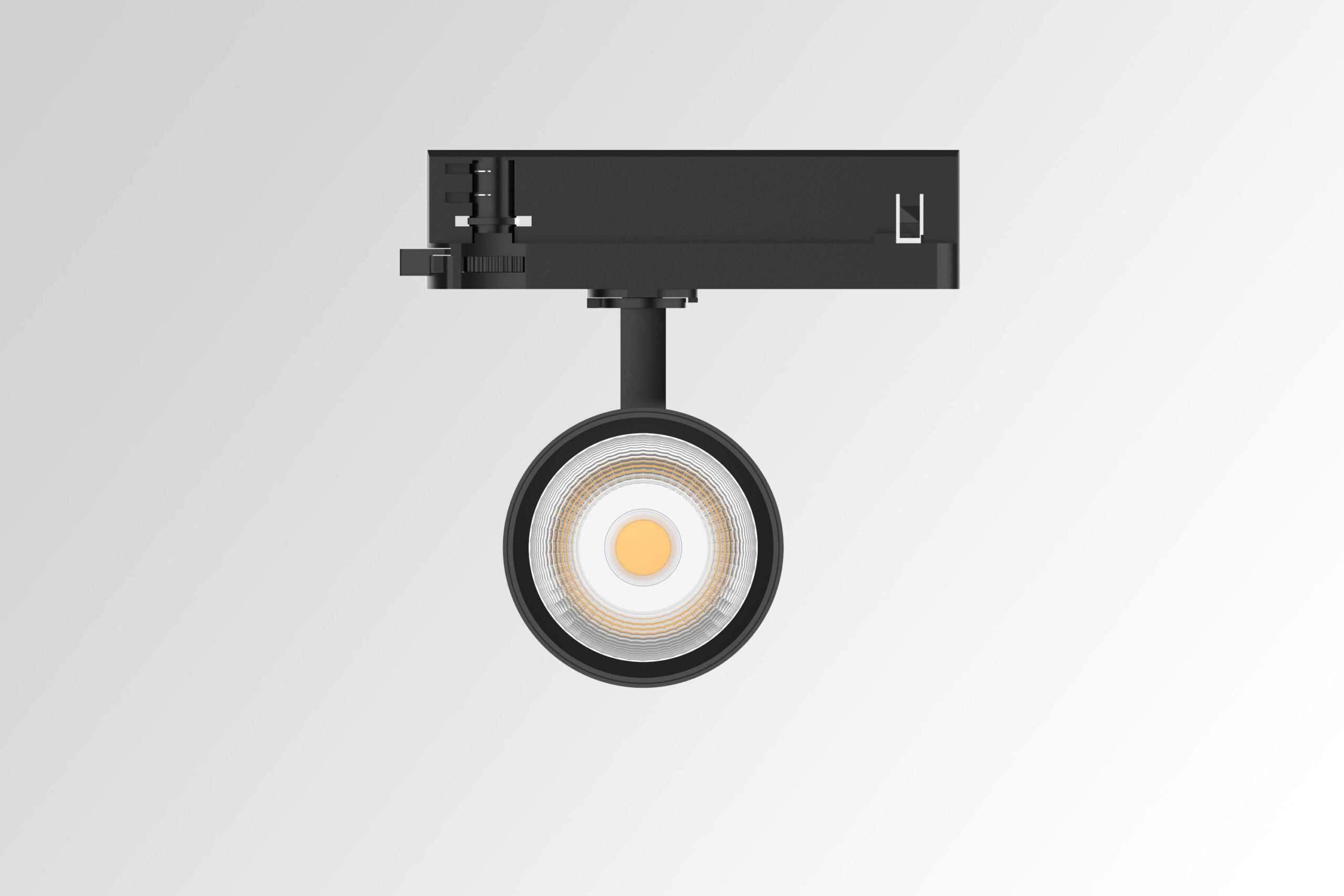

TS164 LED Track Spotlight combines premium aluminium optics and housing with outstanding optical performance, achieving up to 170 lm/W efficacy and CRI ≥90 for accurate colour reproduction. With interchangeable beam angle options and 350° rotation plus 90° tilt adjustment, it offers exceptional flexibility for retail, hospitality, gallery, and display lighting applications.

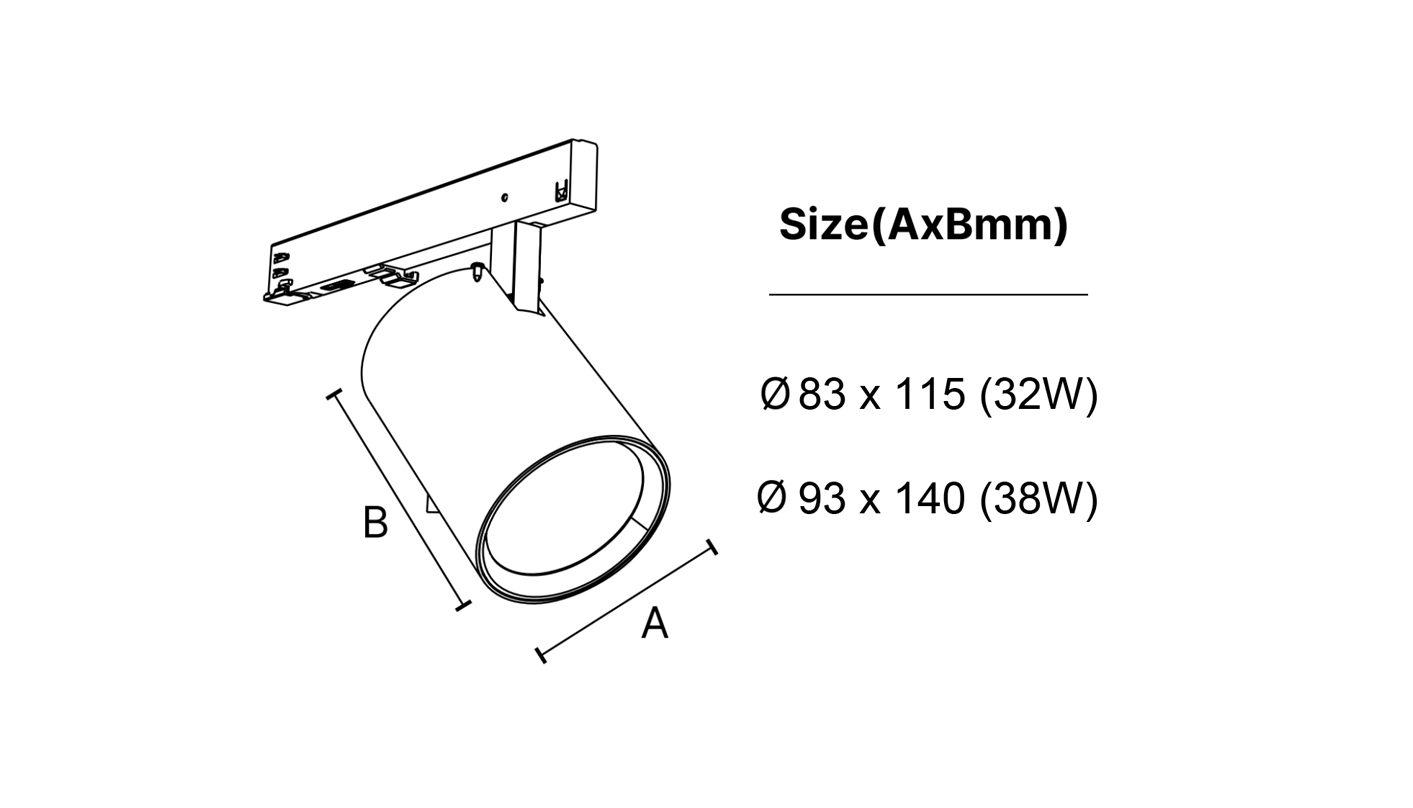

| Code | Size (A*Bmm) |
Power (W) |
Lumen (lm) |
Input Voltage(V) | Model No. |
| 221332 | 83×115 | 32/30/28/25 | 4950 | 220-240 V/AC | TS164-83B-32W3K3W |
| 221538 | 92×140 | 38/36/34/32 | 6600 | 220-240 V/AC | TS164-92B-38W3K3W |
Show more ↓
Show less ↑
Optimize your building’s lighting with our complimentary Dialux EVO simulation service. Submit your DWG file (including detailed floor plans) for a customized illumination and energy efficiency analysis.
