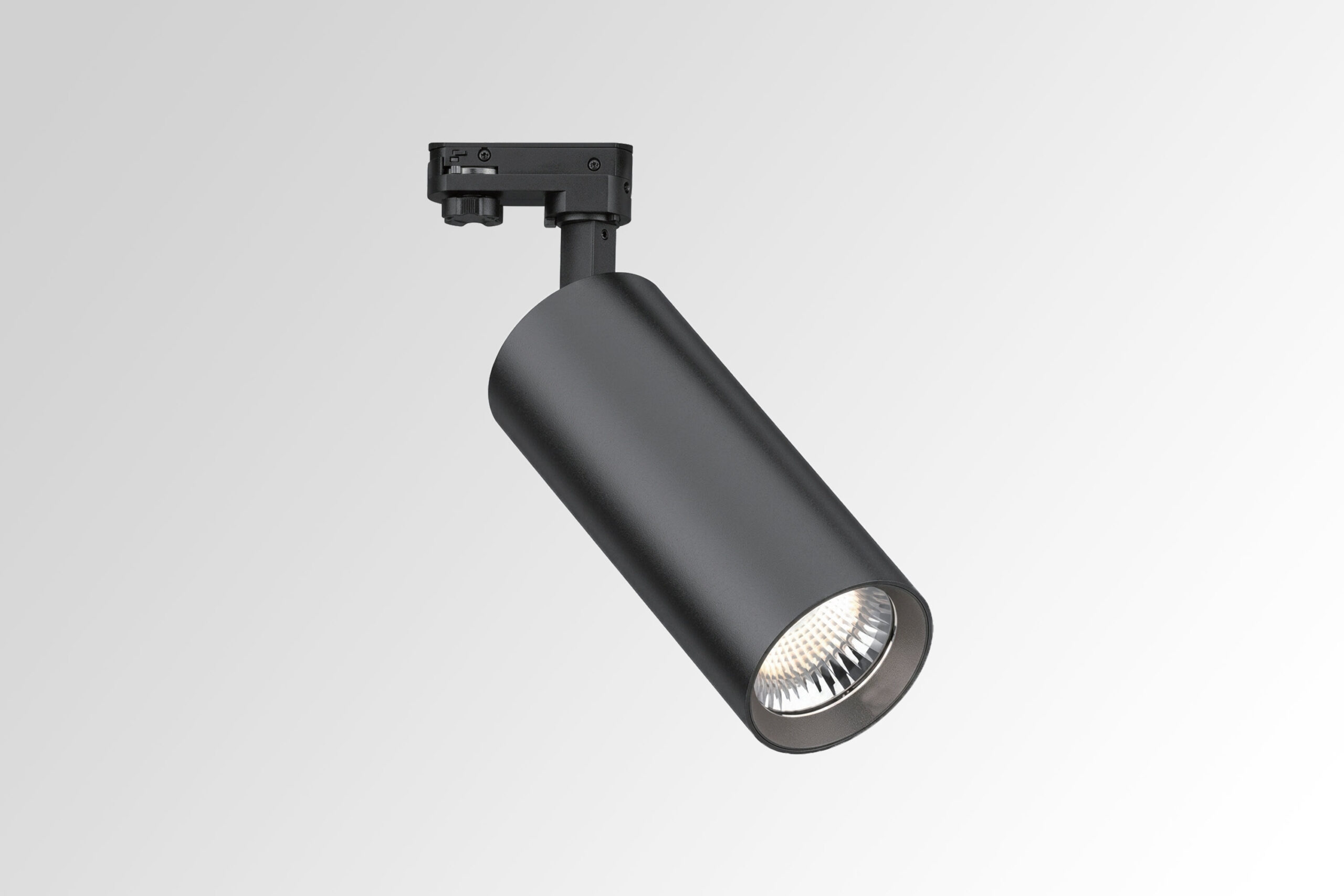

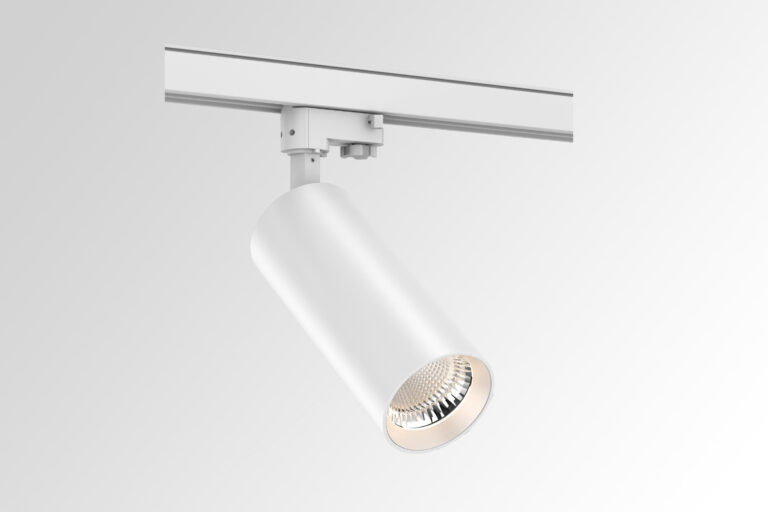

Track Light, COB LED, internal driver
UGR<19, beam angle 24°, 36°, 60°, 350° rotation, 90° tilt
|
Light Source
|
COB LED |
| Nominal Voltage | 220-240 V/AC |
| Mounting Type | Track Mounted |
| Beam Angle | 24°, 36°, 60° |
| CRI | ≥90 |
| Warranty | 5 years |
| Application | Retail,Supermartket, Galleries, Museums, Showrooms, Hotels, Office |
LED Track Spotlight extends the functionality of modern track lighting systems, forming — together with linear luminaires of the same range — a fully compatible and coherent lighting solution.
Here is the selectable beam angles (24°, 36°, 60°), and flexible 350° horizontal rotation with 90° vertical tilt. High luminous efficiency and excellent colour rendering (CRI ≥90) allow accurate adjustment of light to suit different applications — from retail displays, galleries and showrooms to museums and accent lighting.
This results in maximum planning flexibility while maintaining a clean, minimalist aesthetic perfectly aligned with contemporary architectural lighting design.

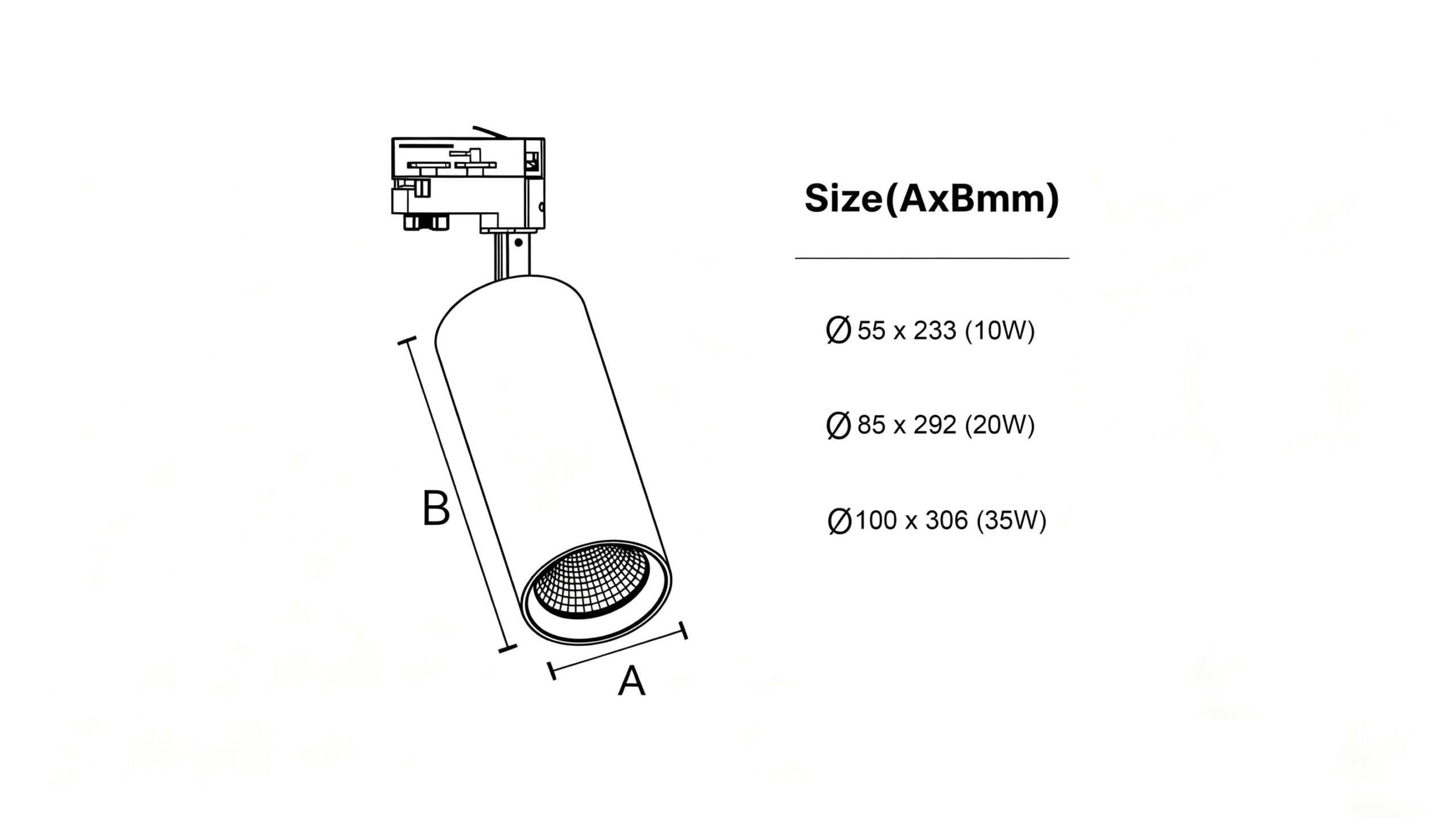

| Code | Size (A*Bmm) |
Power (W) |
Lumen (lm) |
Input Voltage(V) | Model No. |
| 221110 | 55 x 233 | 10 | 1200 | 220-240 V/AC | TS338-55B-10W3K |
| 221420 | 85 x 292 | 20 | 2550 | 220-240 V/AC | TS338-85B-20W3K |
| 221635 | 100 x 306 | 35 | 4100 | 220-240 V/AC | TS338-100B-35W3K |
Show more ↓
Show less ↑
Optimize your building’s lighting with our complimentary Dialux EVO simulation service. Submit your DWG file (including detailed floor plans) for a customized illumination and energy efficiency analysis.
