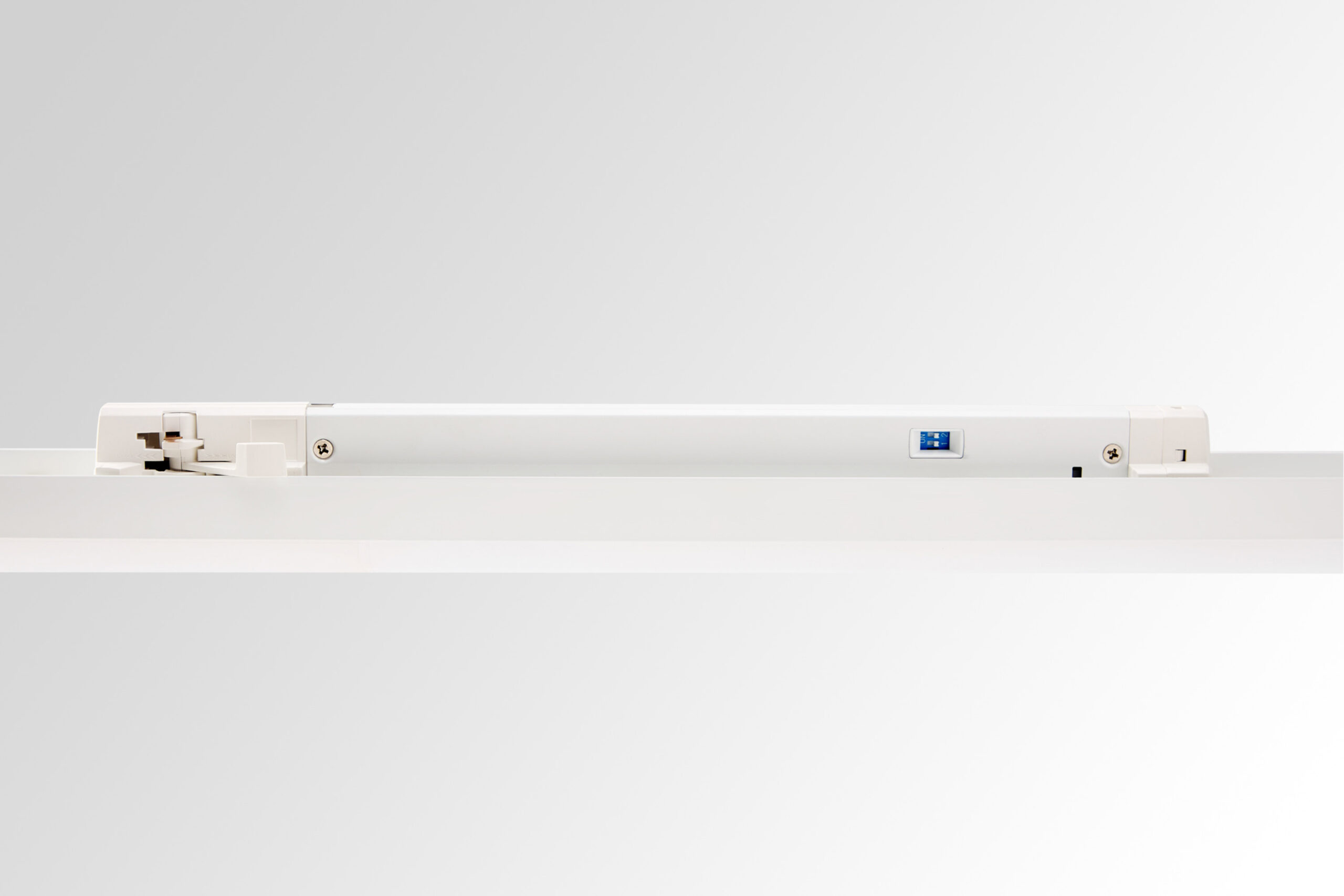

DIP switch power selectable, Up to 160 lm/W

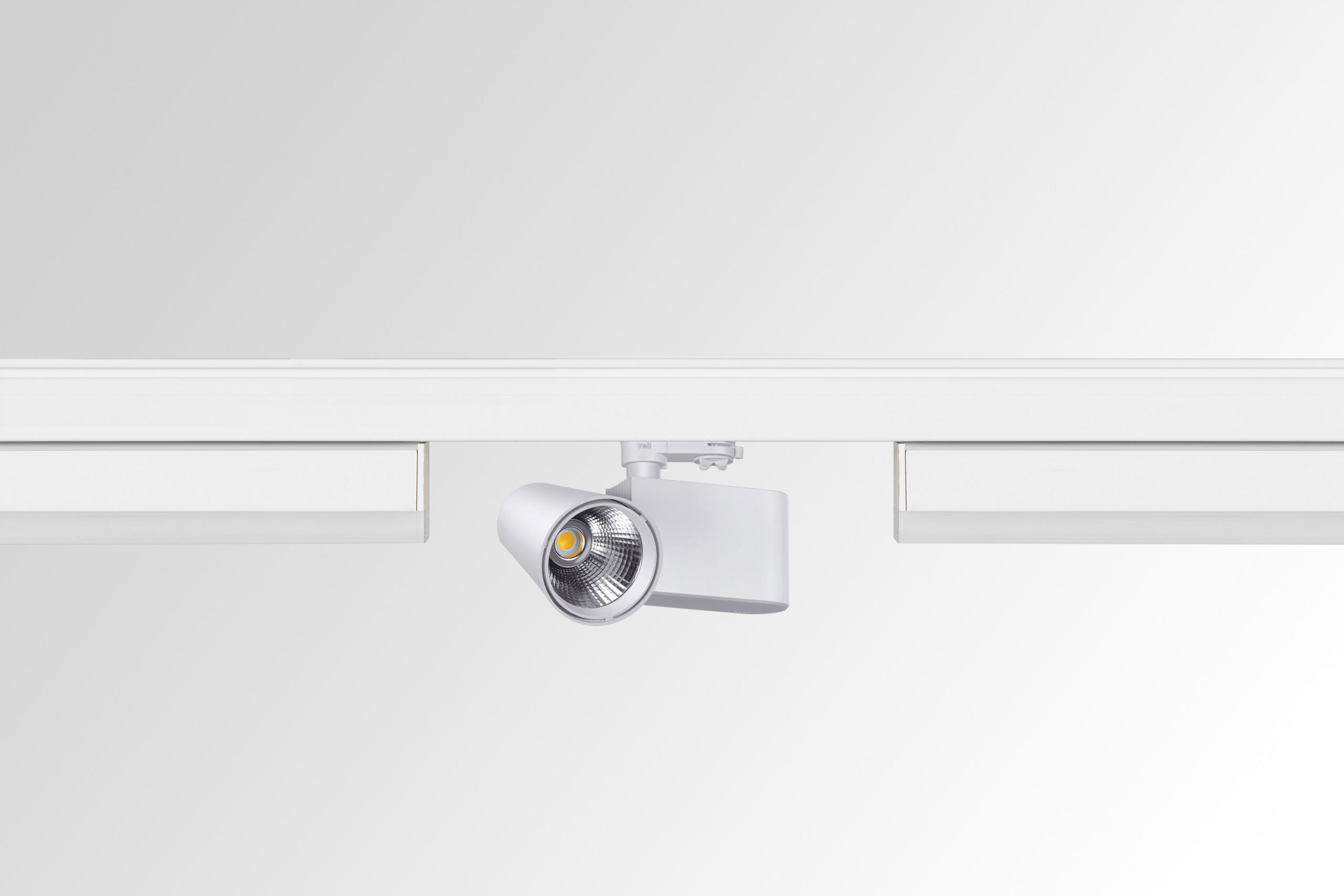

Flexibly combined with track sportlights on the same track rail
|
Light Source
|
SMD 2835 LED |
| Nominal Voltage | 220-240 V/AC |
| Mounting Type | Track Mounted |
| Beam Angle | 120° (with FD-120° diffuser) |
| CCT | 4000 K |
| Lumen Efficiency | Up to 160 lm/W |
| Lifetime | 50,000 h |
| Warranty | 5 years |

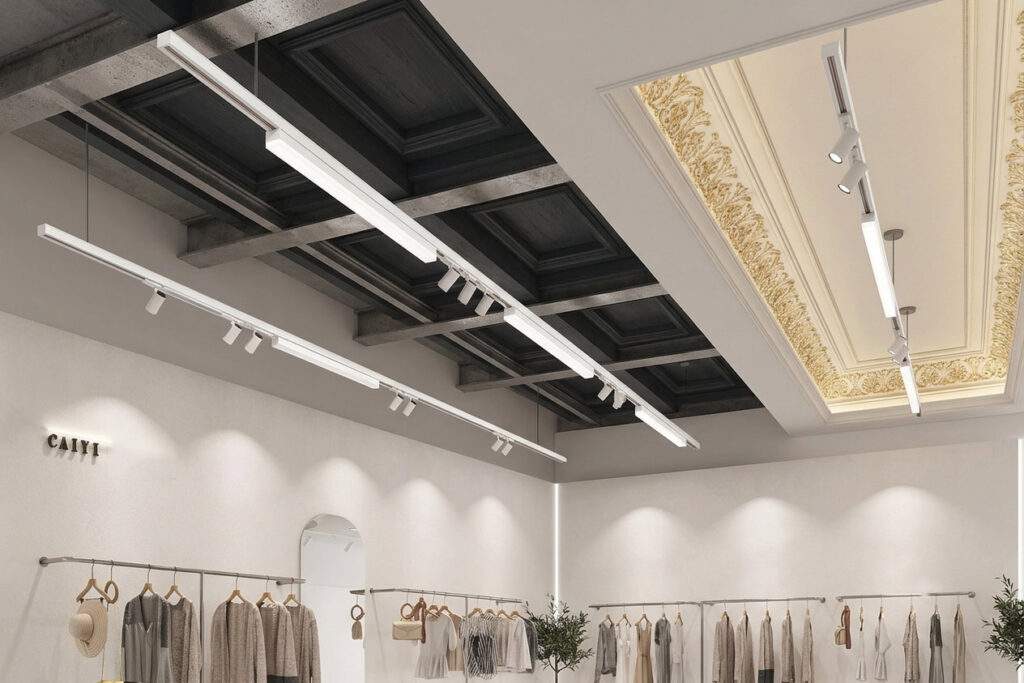

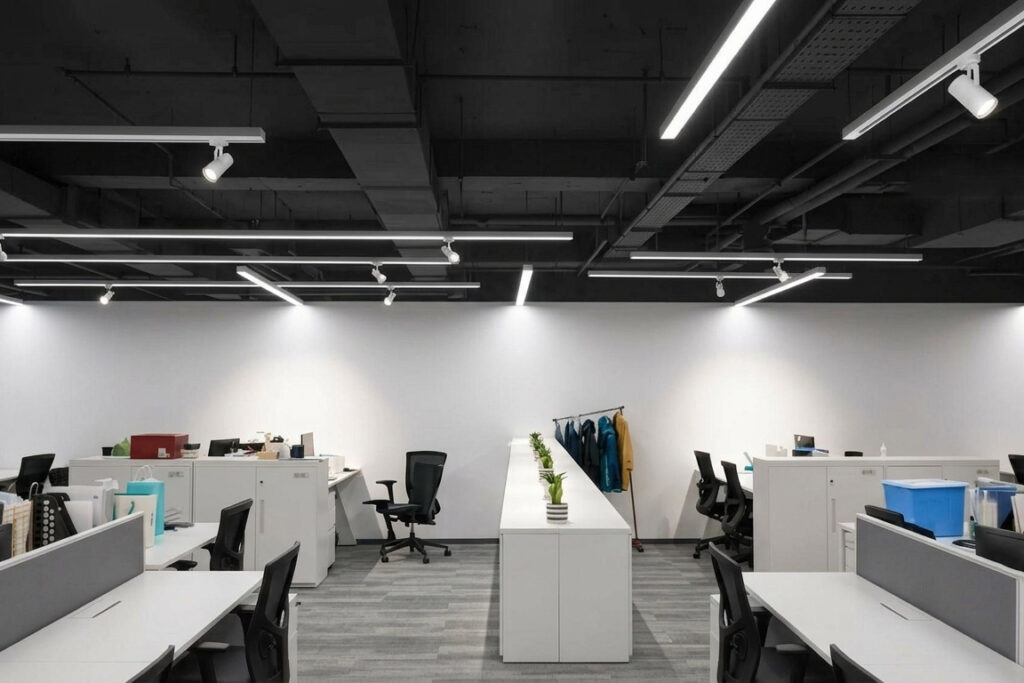

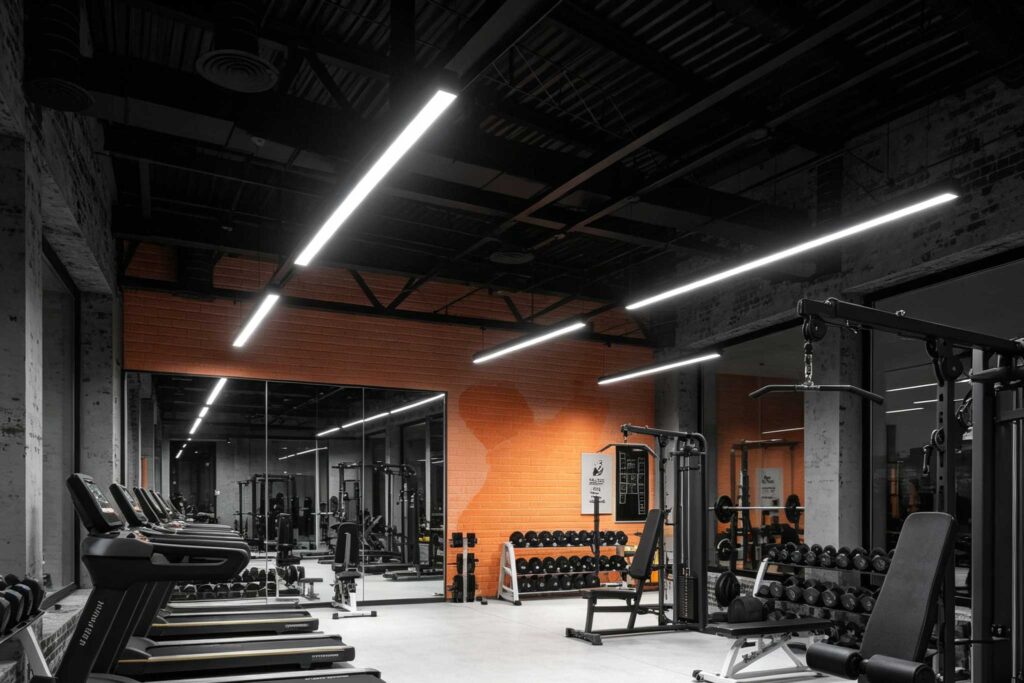

| Applications | Retails, Supermarket, Office, Gymrooms, logistics areas |

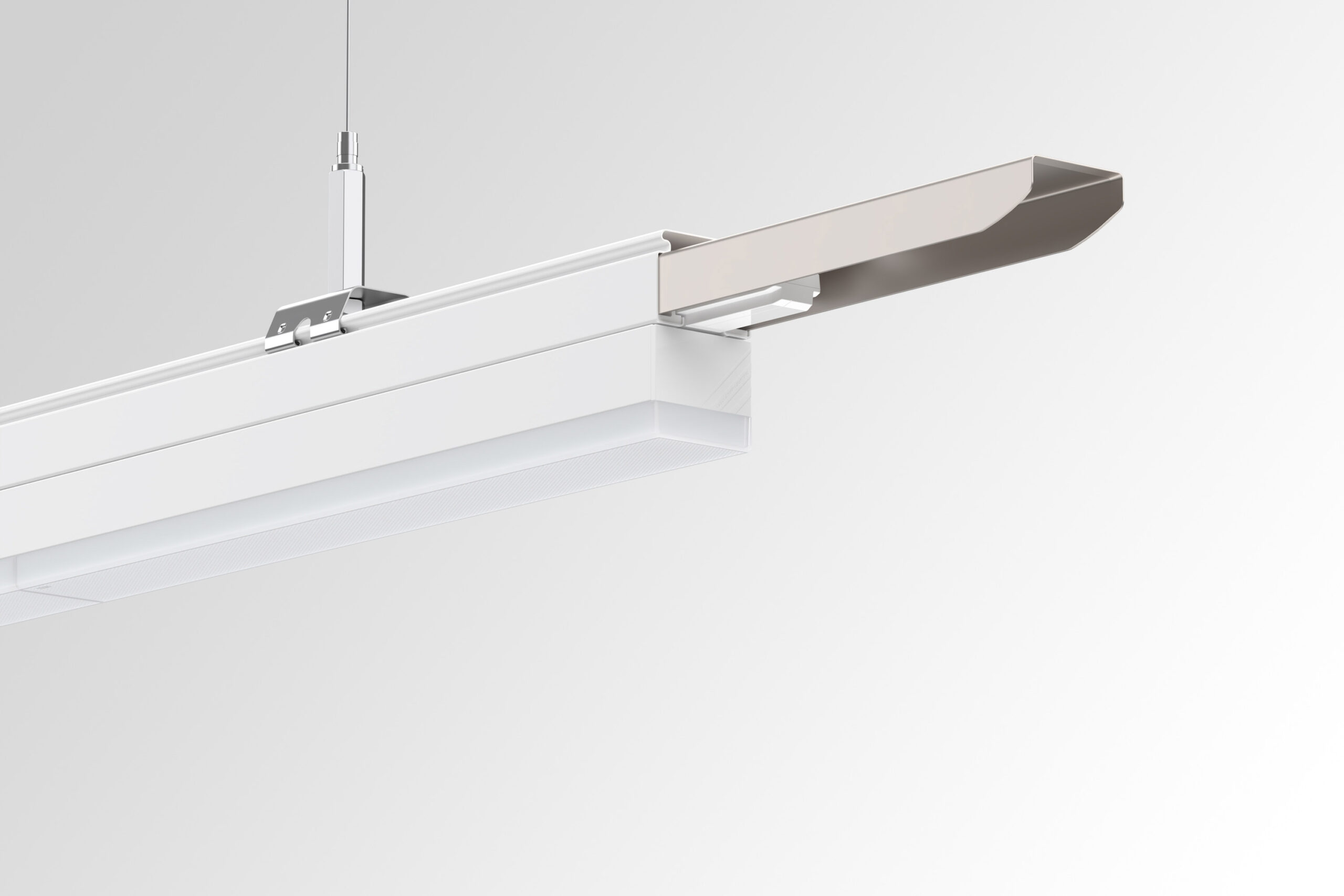

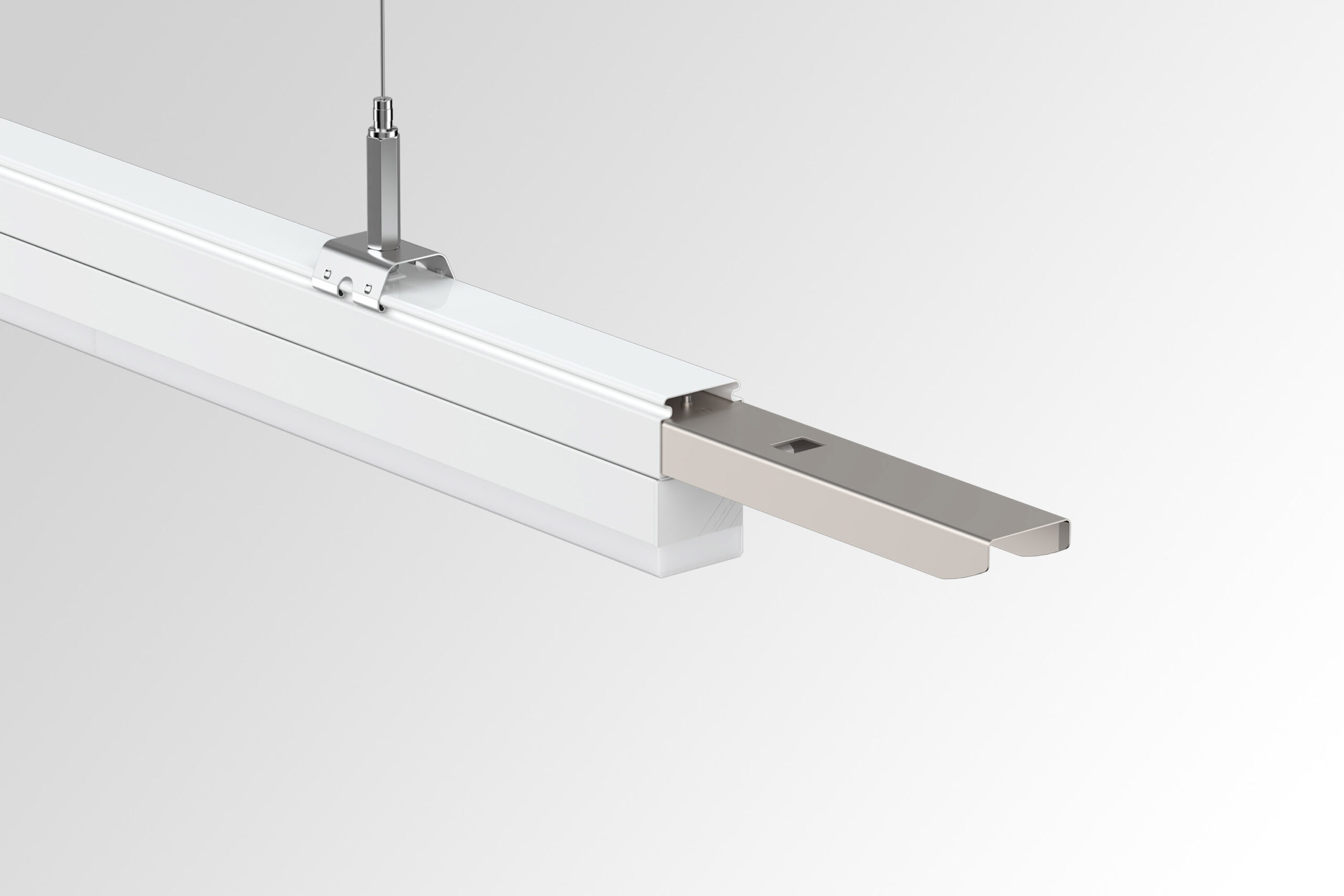

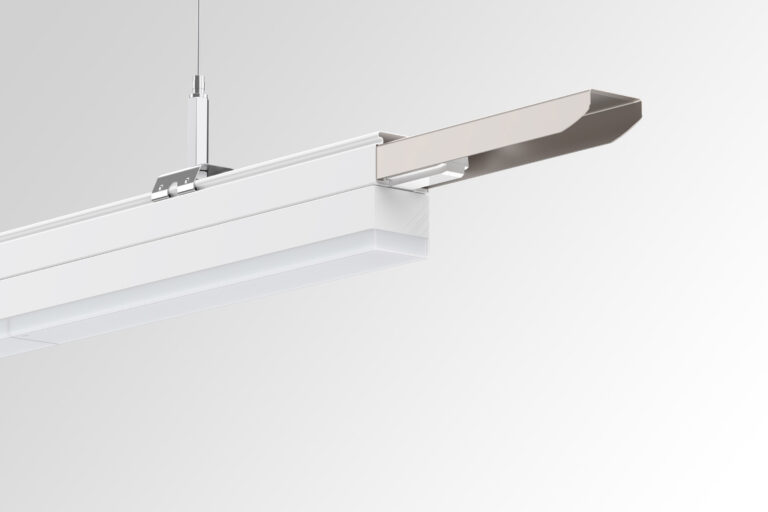

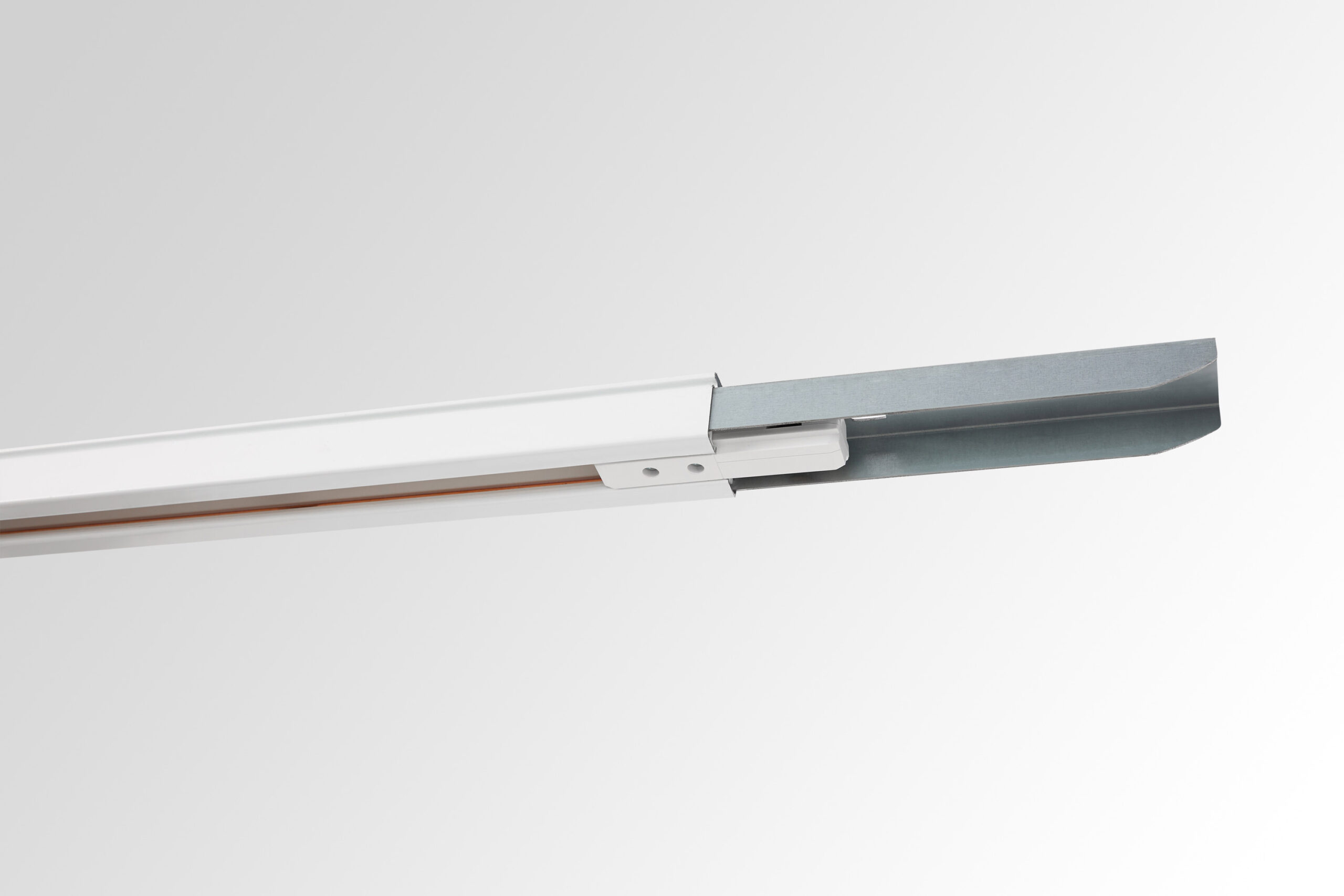

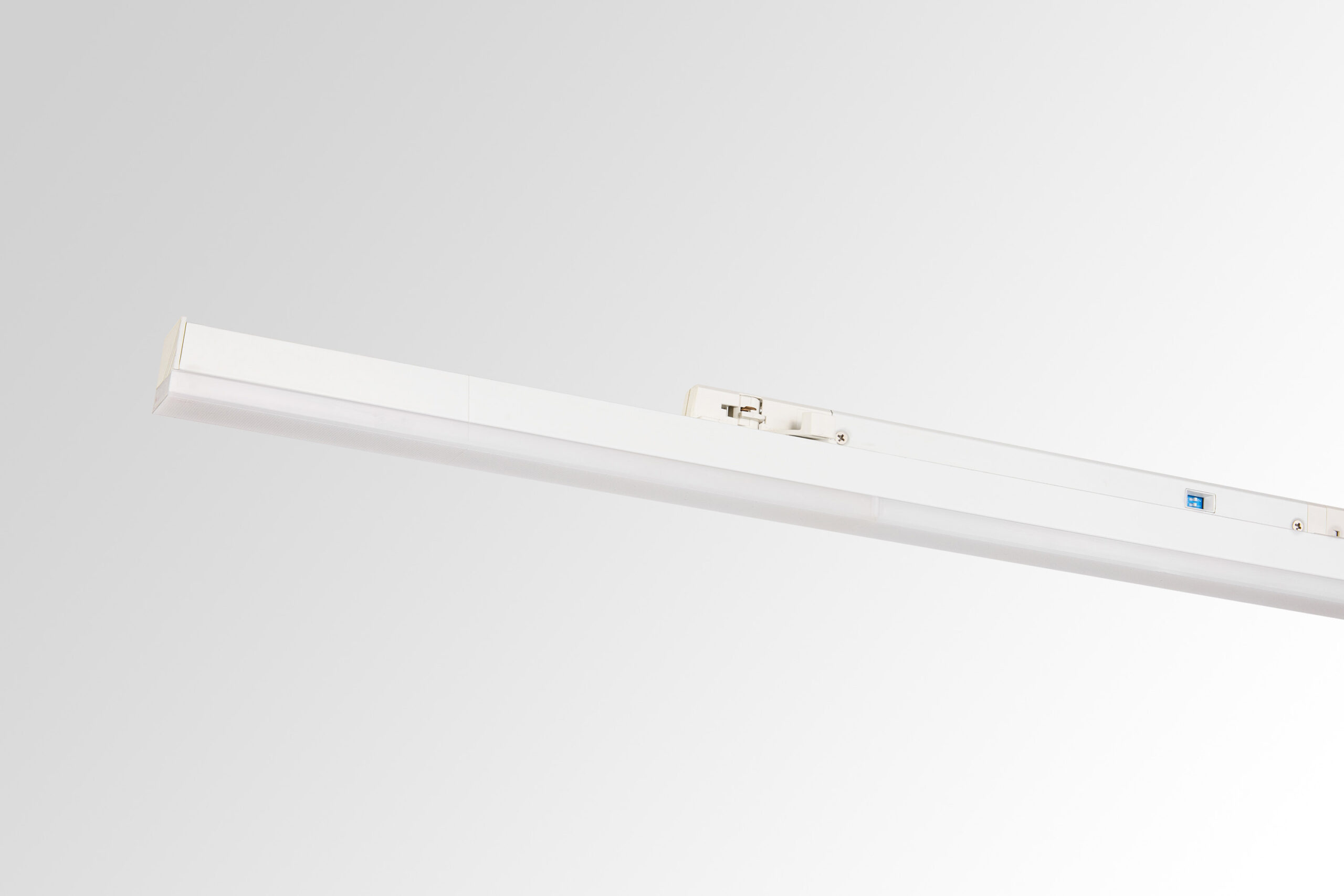

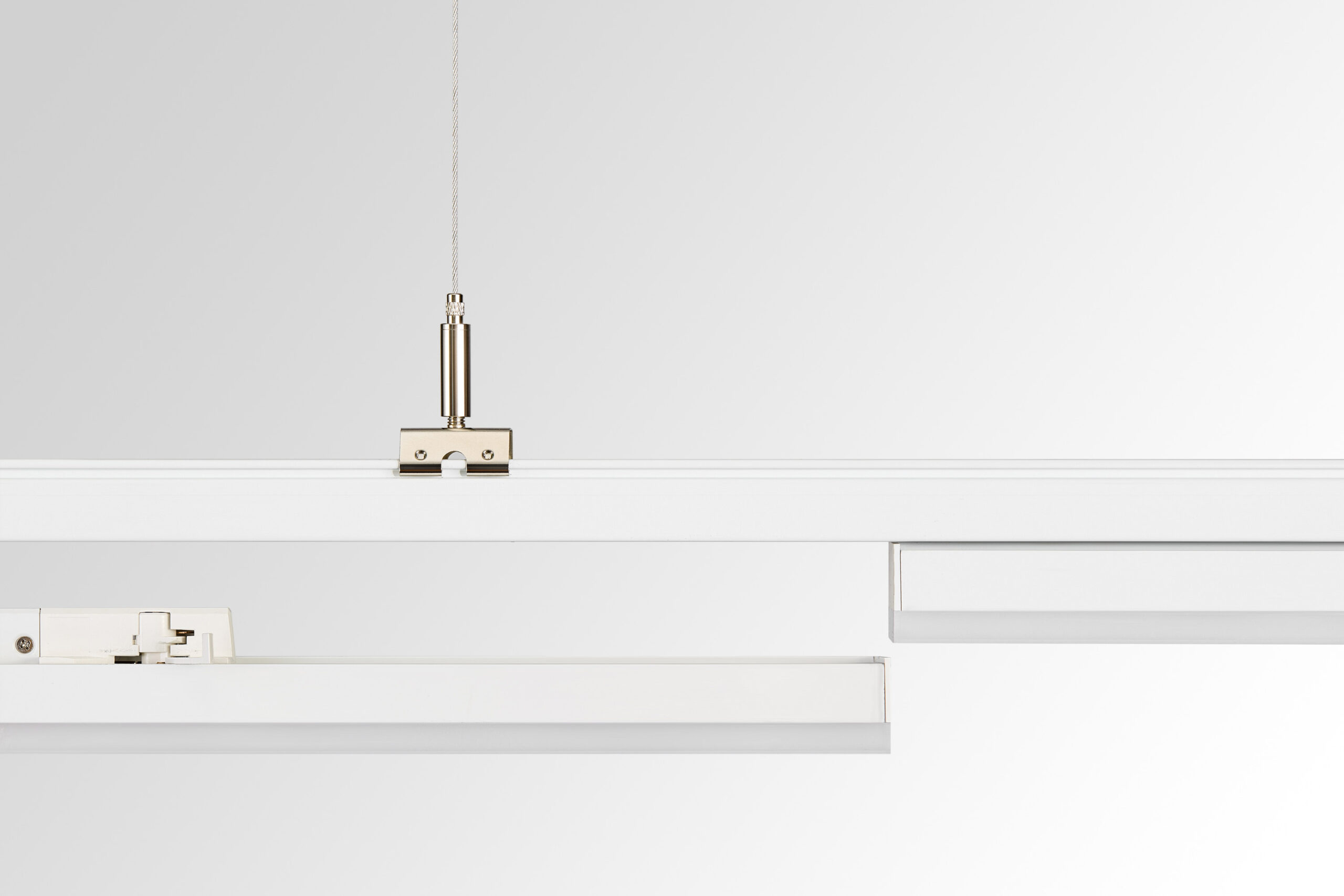

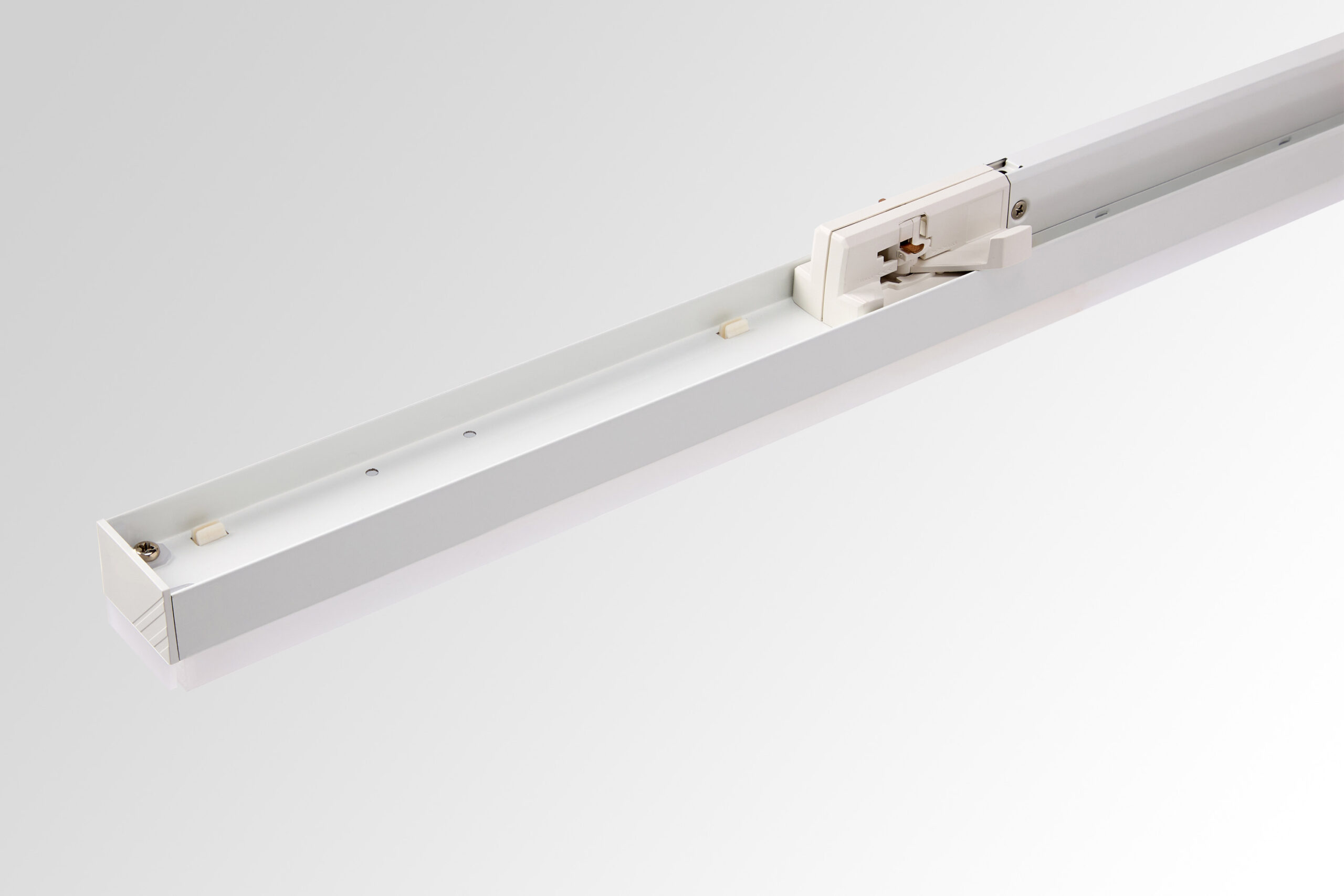

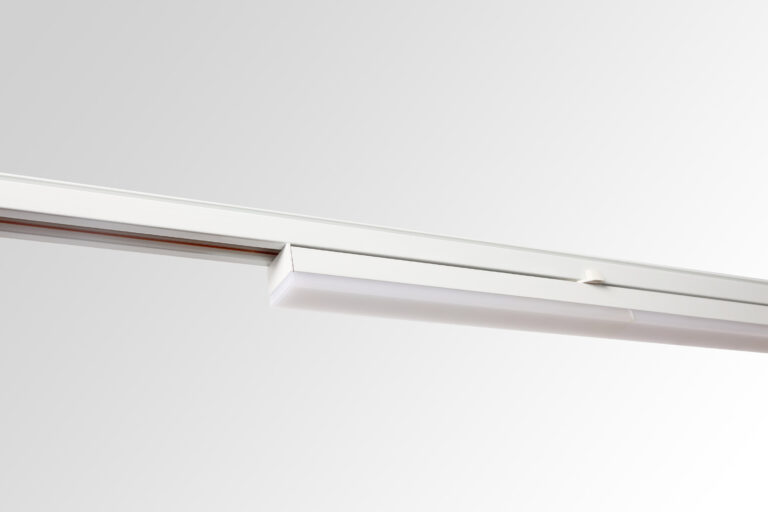

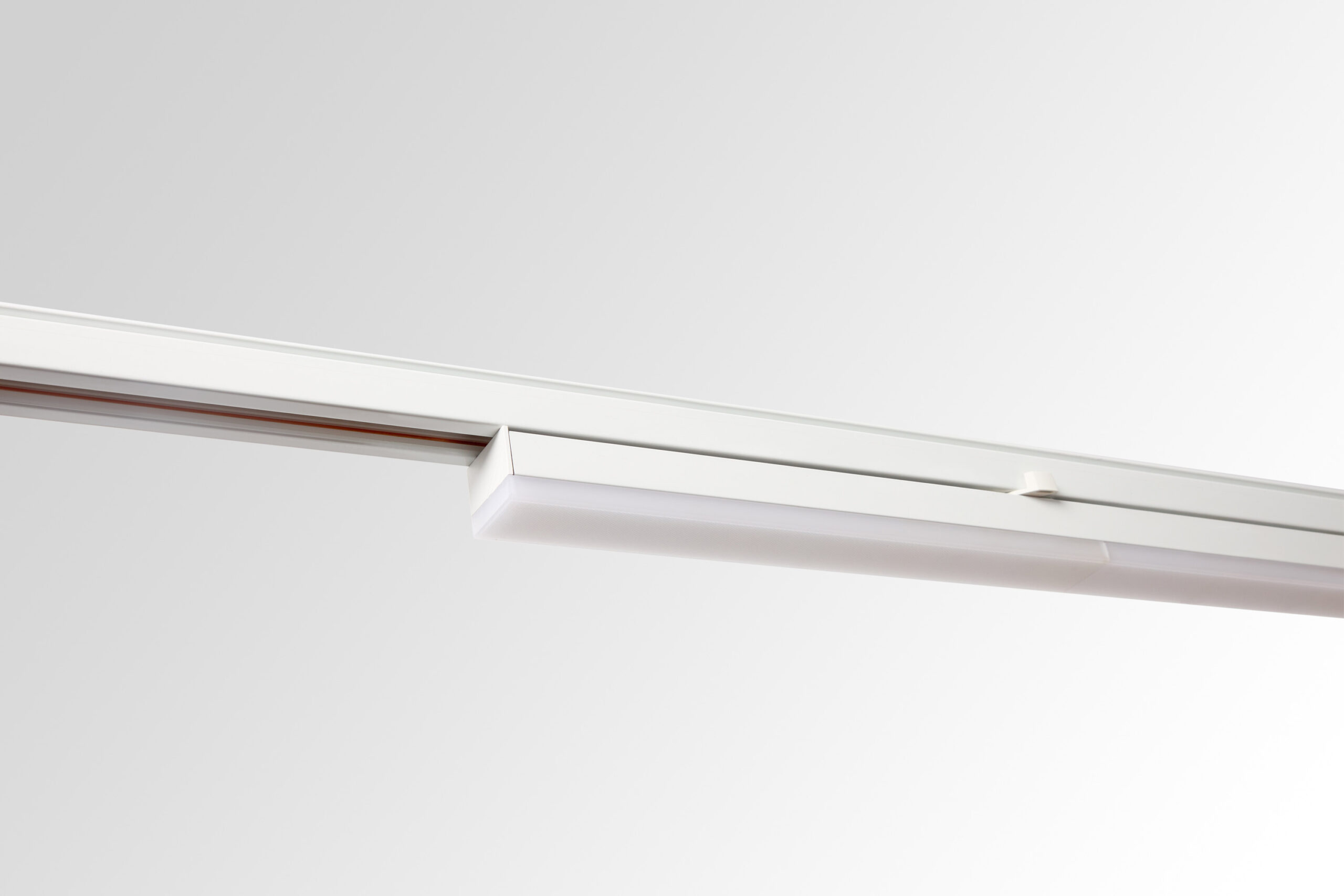

The LT868 LED Linear Track Light combines a slim 35 mm profile with advanced optical performance, creating a clean and elegant lighting solution for contemporary commercial spaces. The compact design enhances architectural aesthetics while maintaining excellent lighting output.
Featuring selectable power settings via DIP switch and up to 160 lm/W luminous efficacy, it delivers flexible, high-efficiency illumination for retail, hospitality, office, and commercial applications. Optimised for long operating hours, LT868 supports substantial energy savings and reduced maintenance costs.
| Code | Size (L/W/H) mm |
Power (W) |
CCT (K) |
Lumen (lm) |
Effi. (lm/W) |
PF | CRI | Beam Angle | DIM | IP | Energy Class | Model No. |
| 111365 | 1500/35/28 | 60/55/50/45 | 4000 | 9600 | 160 | ≥0.9 | 80 | FD 120° | No | IP20 | B | LT868-15-60W4K3W |
Show more ↓
Show less ↑
Optimize your building’s lighting with our complimentary Dialux EVO simulation service. Submit your DWG file (including detailed floor plans) for a customized illumination and energy efficiency analysis.
| Code | Related Accessories |

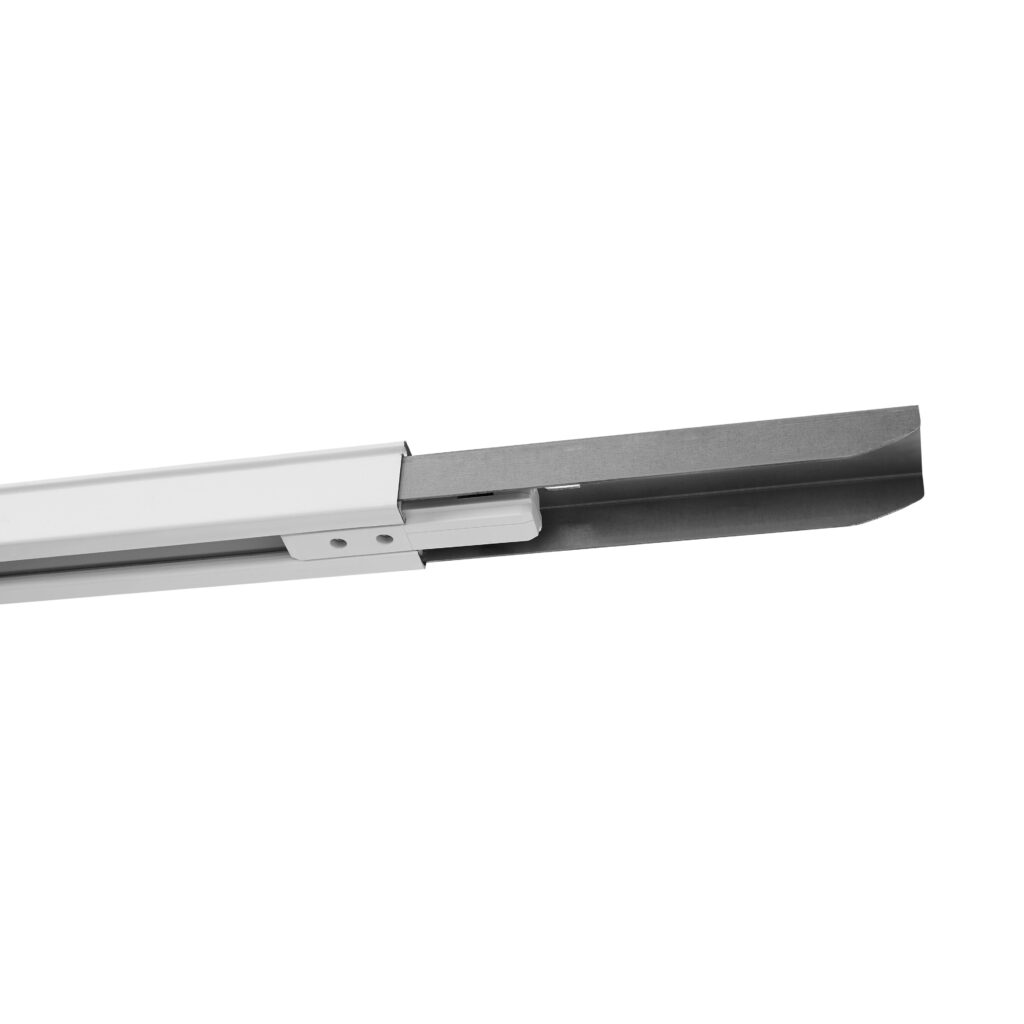

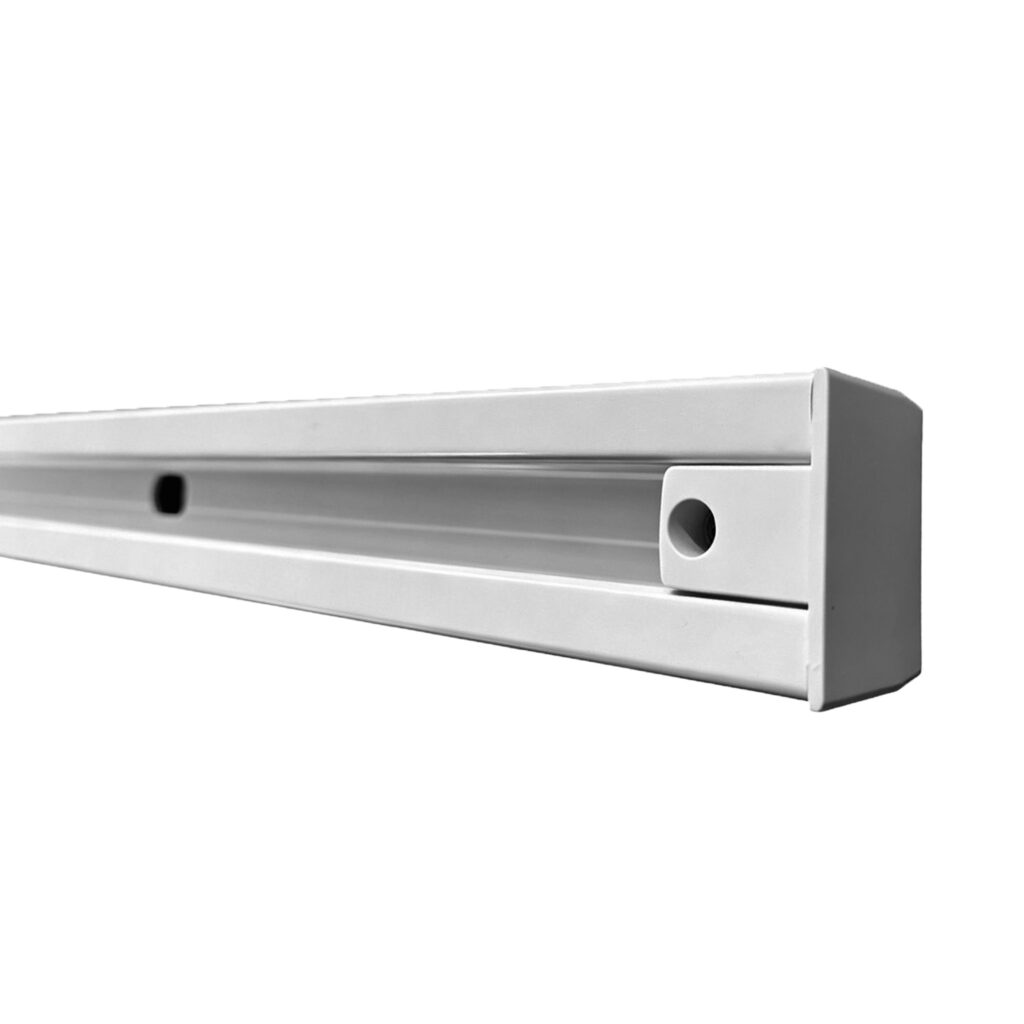

| 140201 | LT868 1.5M Normal Trunking Rail with Connector |
| 140202 | LT868 1.5M Terminal Trunking Rail |

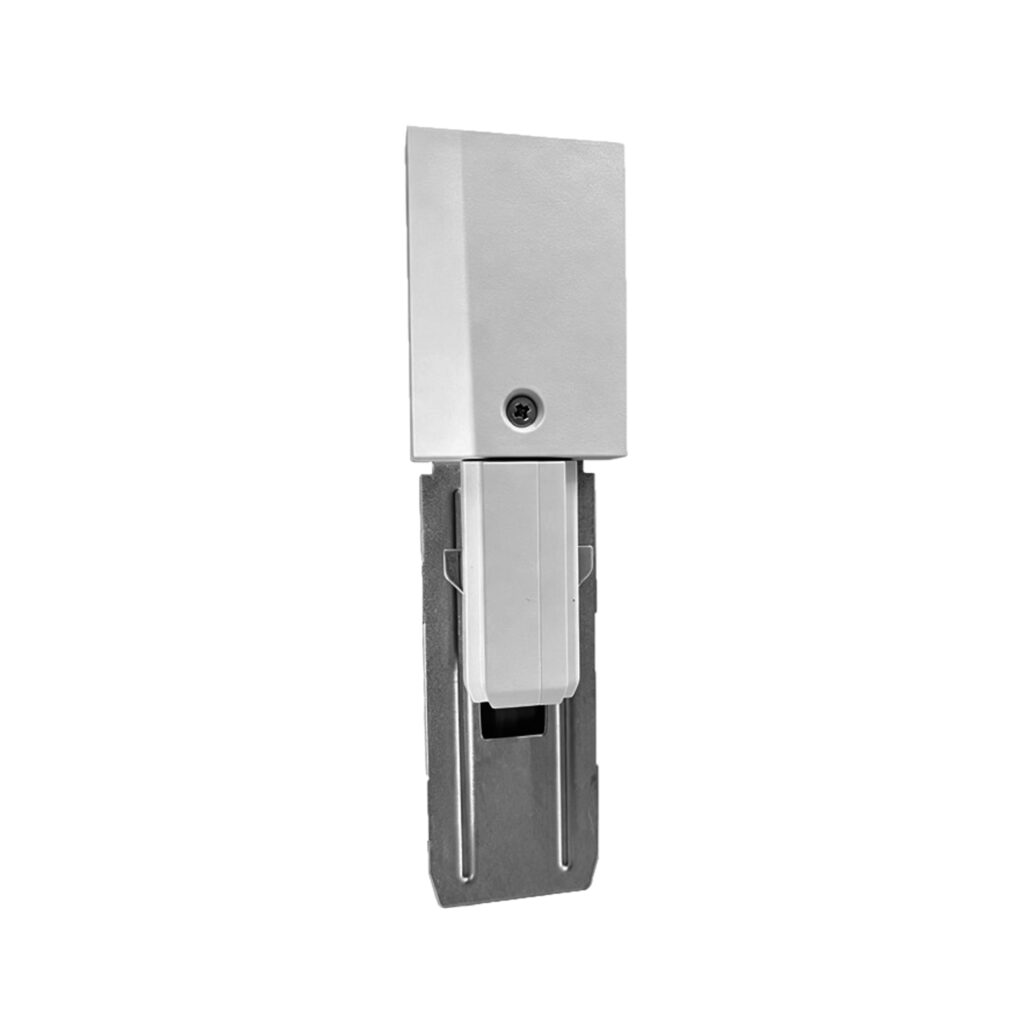

| 140203 | LT868 Feed In box 3 -Core |

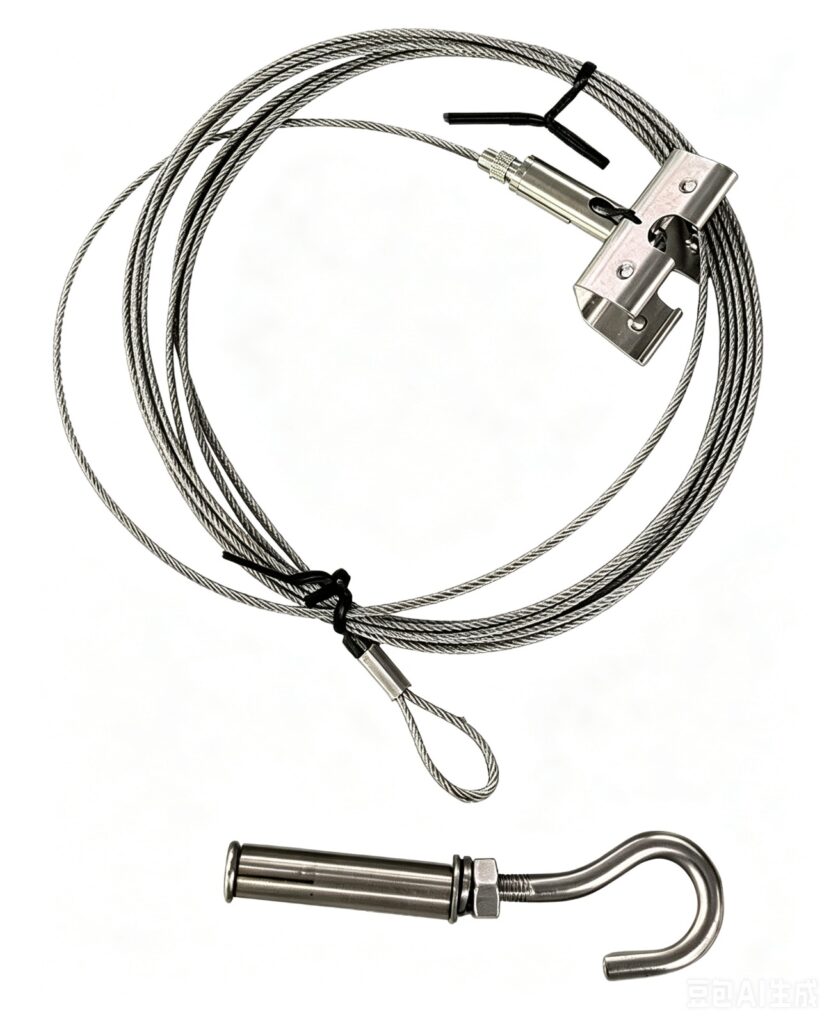

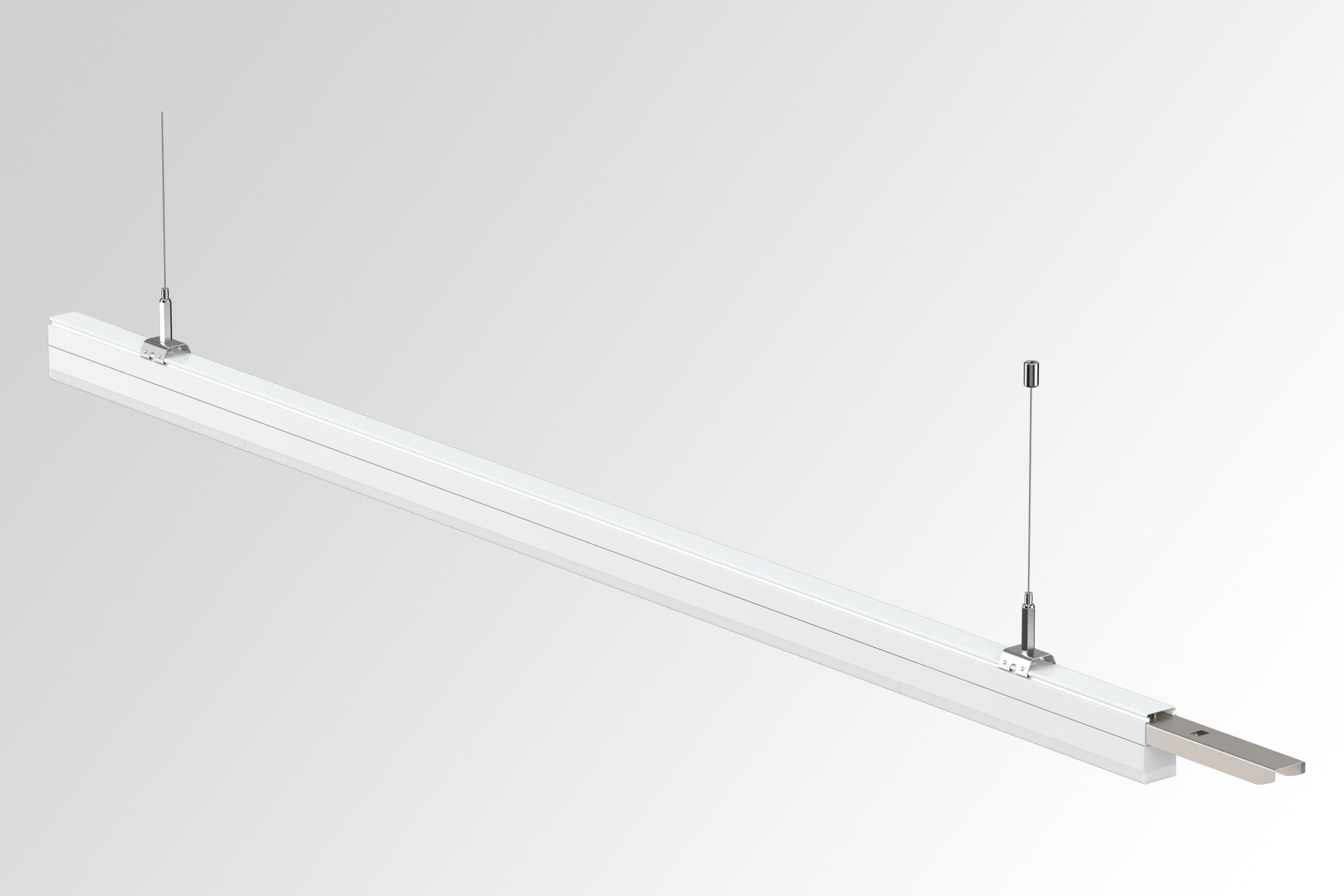

| 140204 | LT868 Suspension Cord |
