Adjustable Dual-Wing Linear Light
European standard 4-wires，3-phases, 30°×90° asymmetric optic
|
Light Source
|
SMD 2835 LED |
| Nominal Voltage | 220-240 V/AC |
| Mounting Type | Track mounted |
| Lumen Efficiency | Up to 180 lm/W |
| Power Selectable | 60/55/50/45 W |
| Lifetime | 50,000 h |
| Warranty | 5 years |
| Application | Supermarkets, retail spaces, offices, workspaces, warehouses and commercial environments |
Central Linear Light with Twin Wings Tilting extends the functionality of modern linear lighting systems, offering flexible and efficient illumination for large retail and commercial spaces.

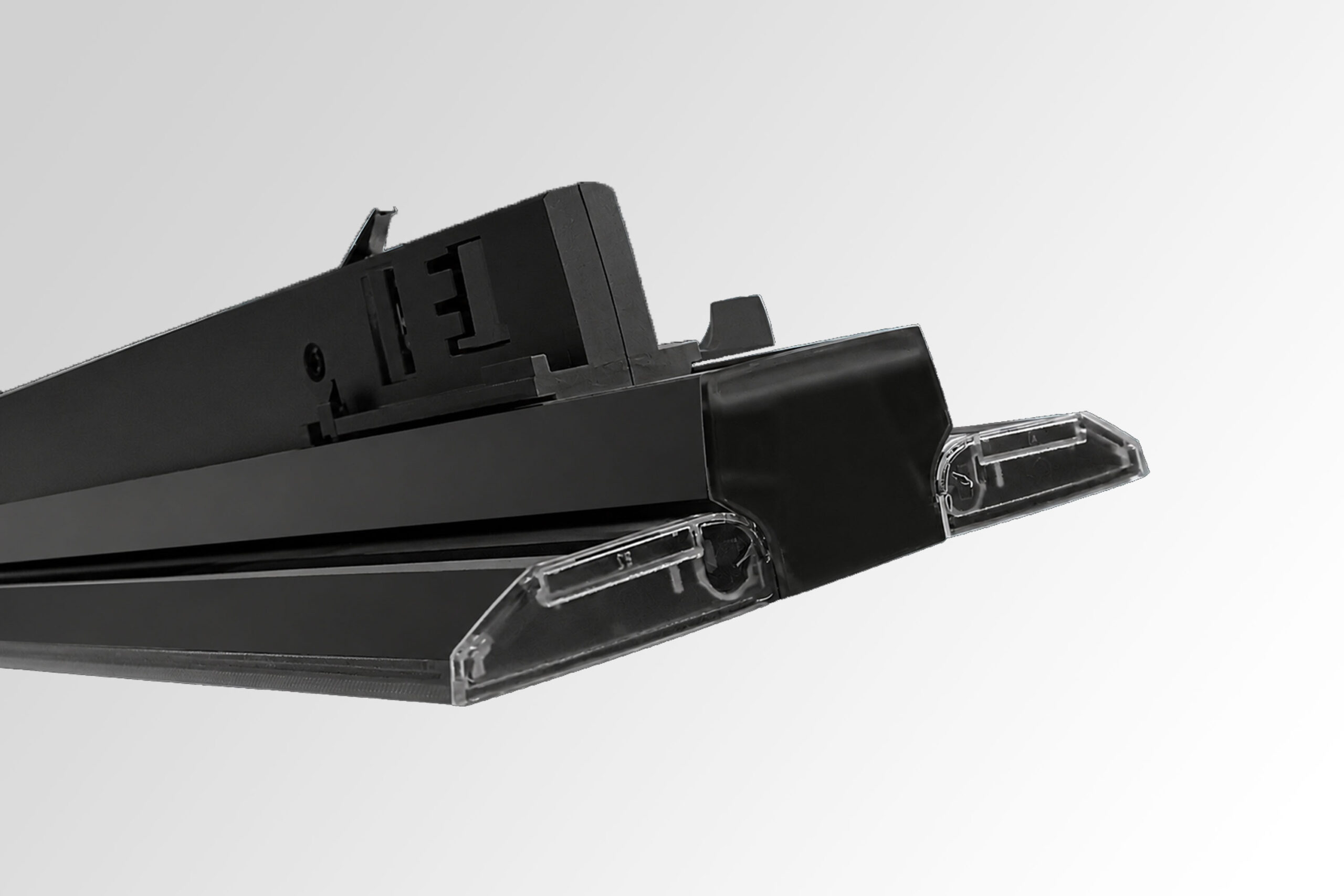

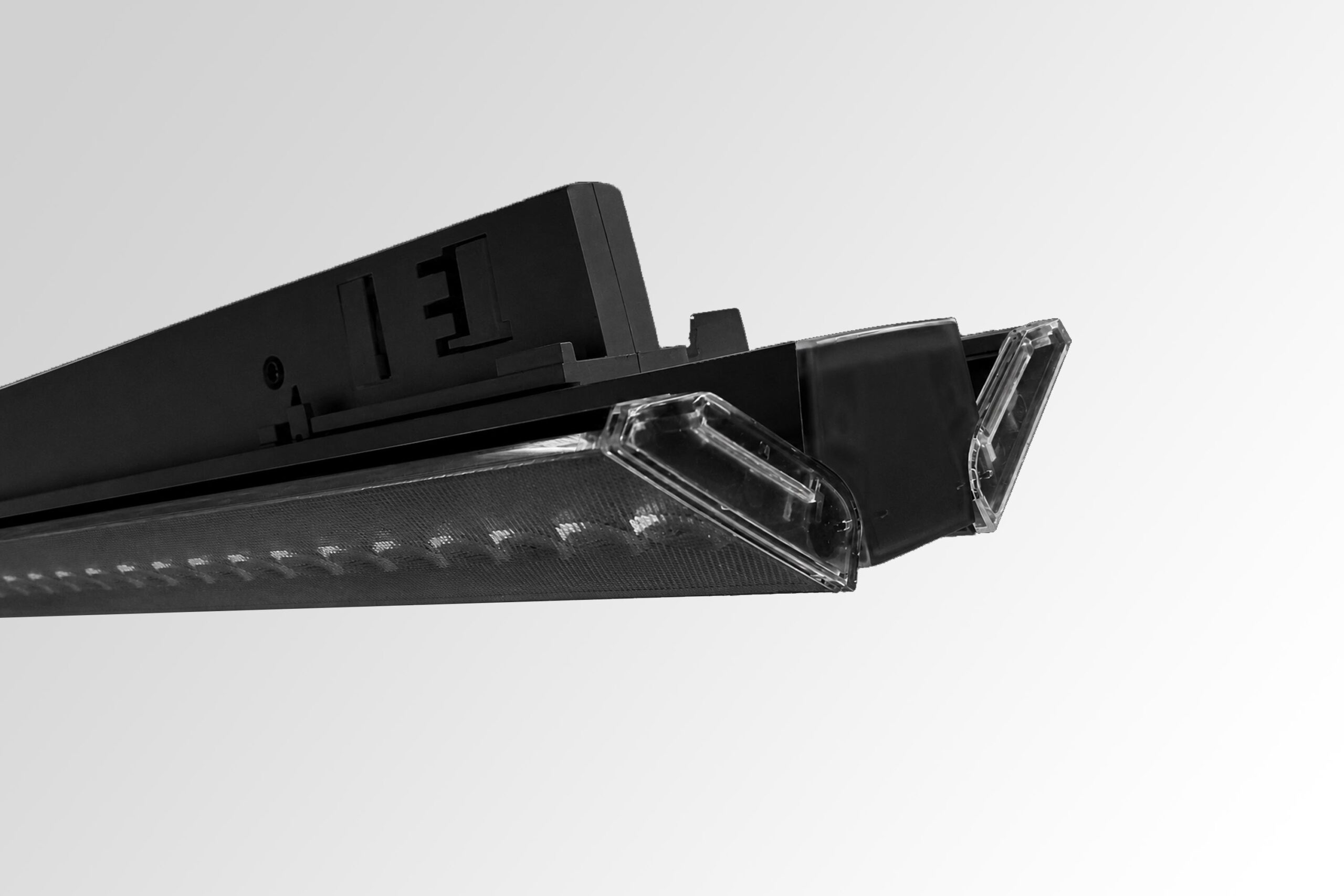

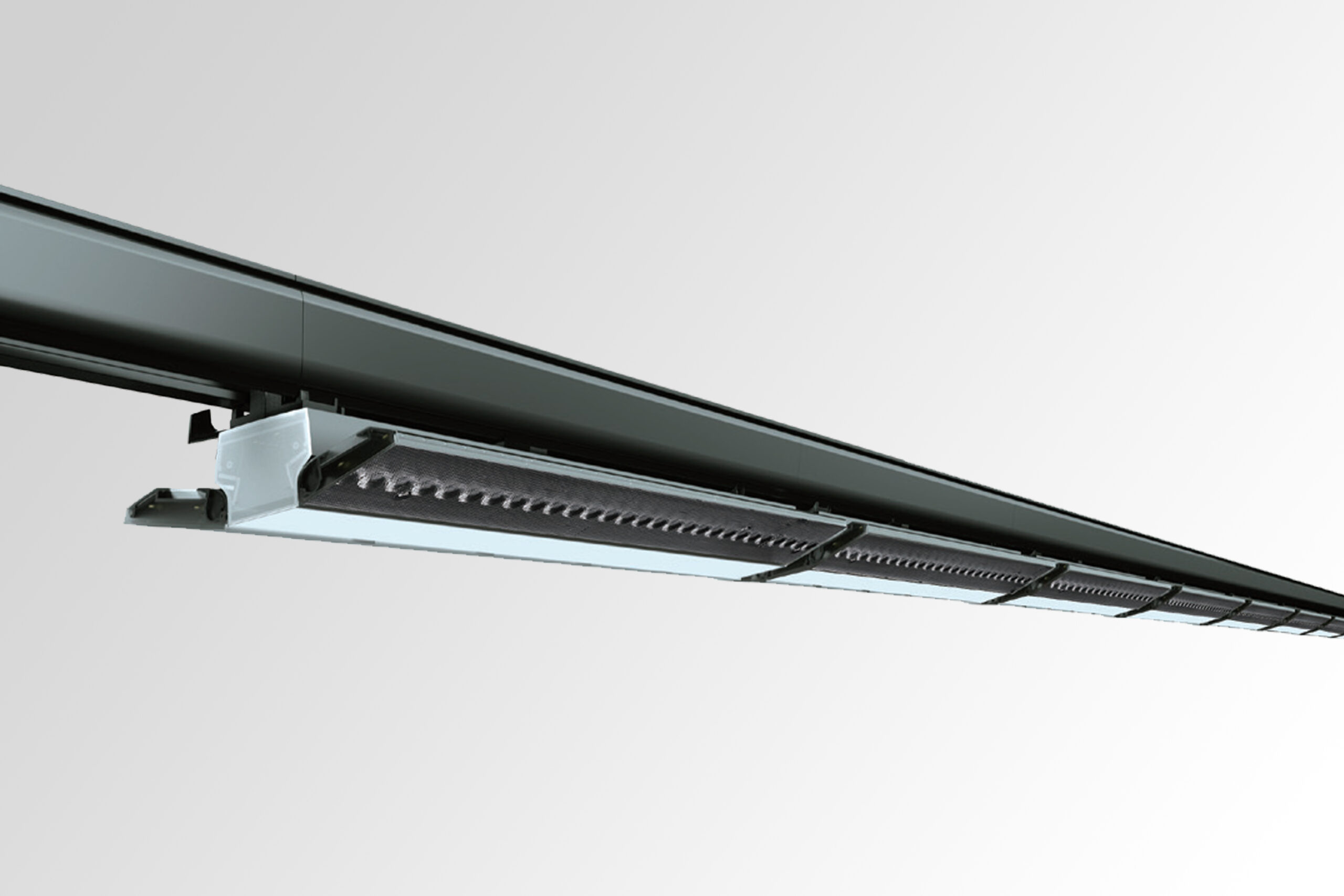

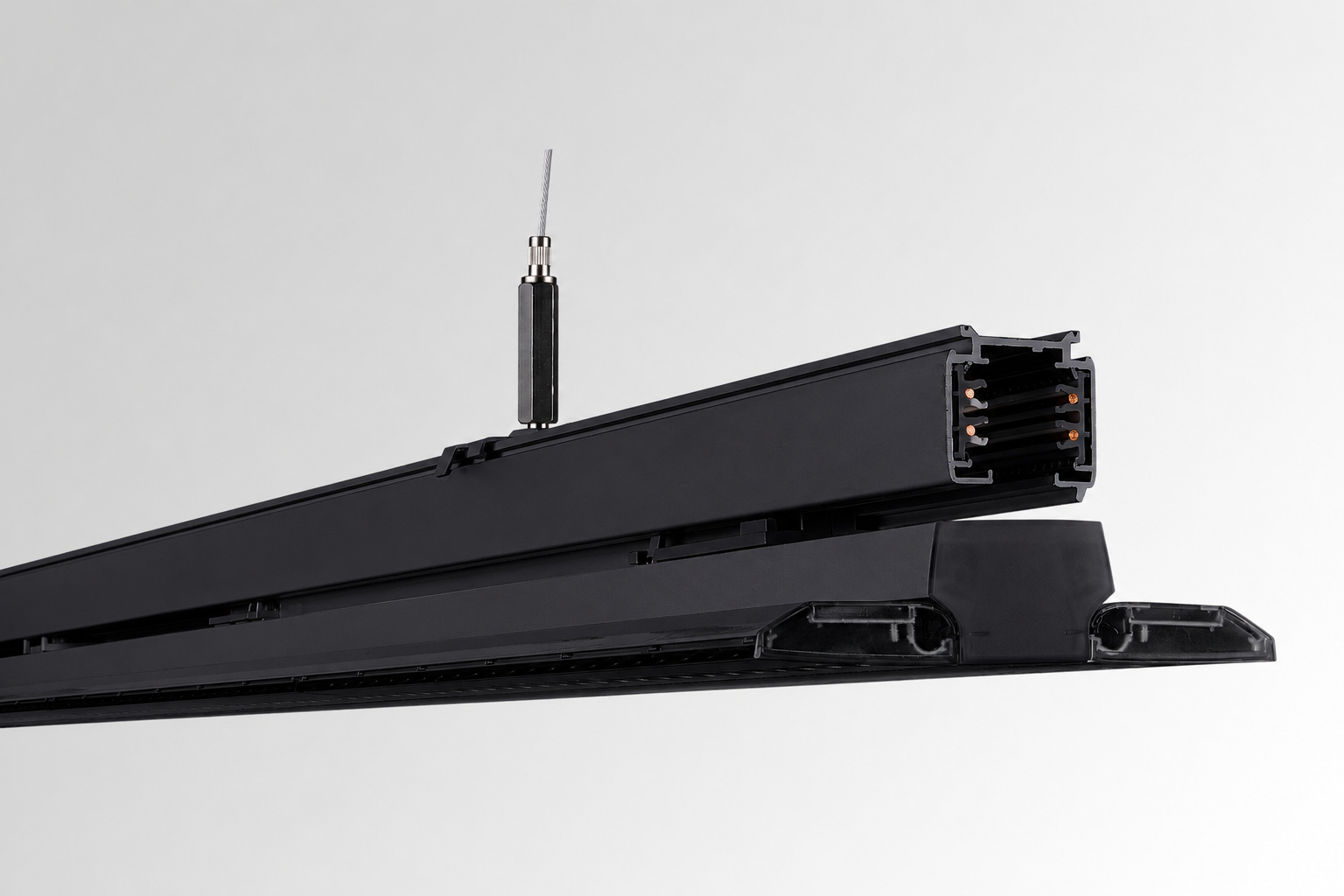

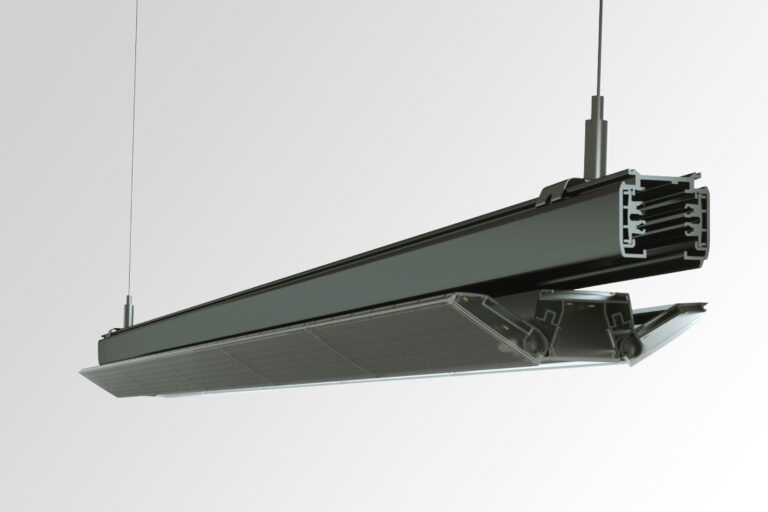

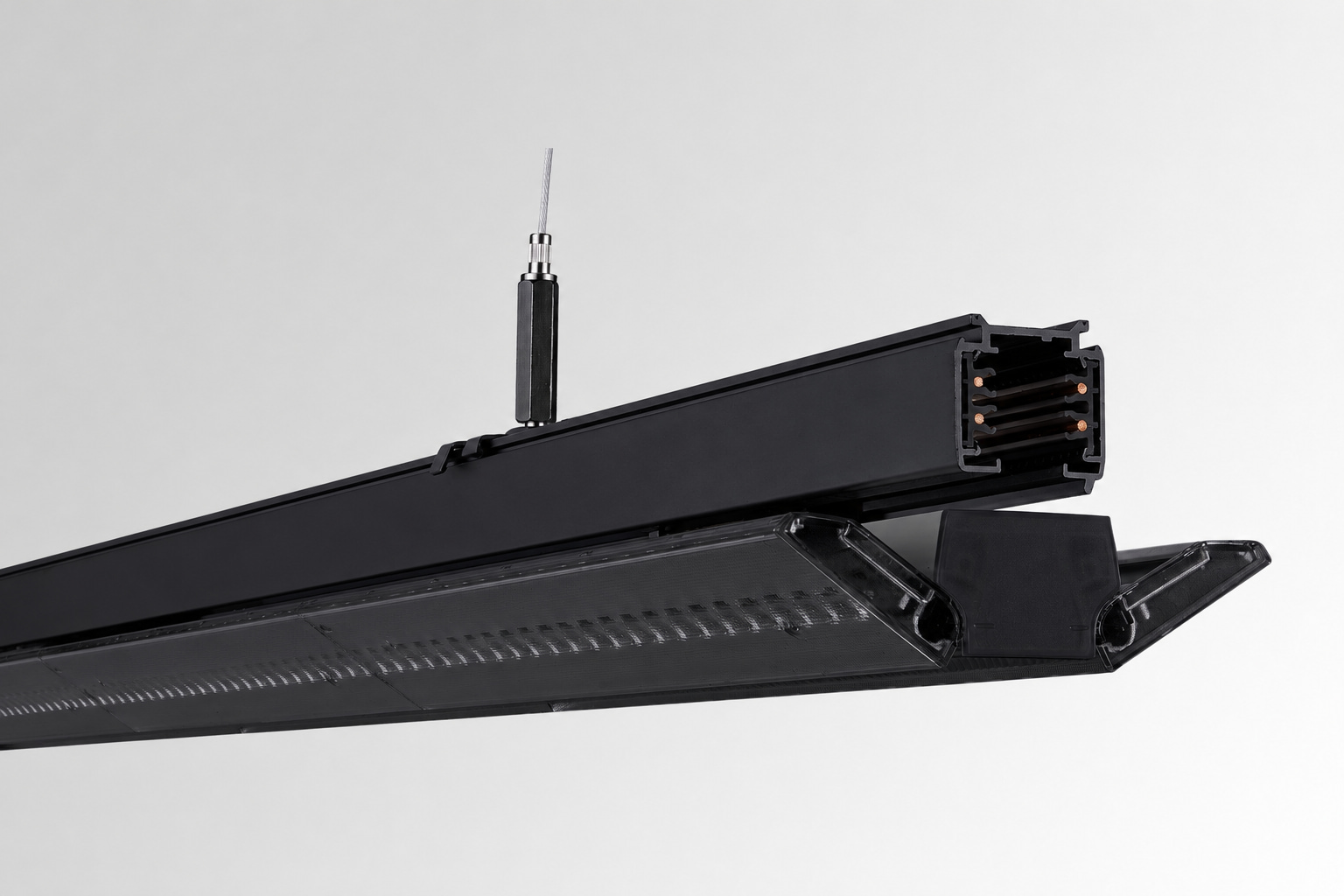

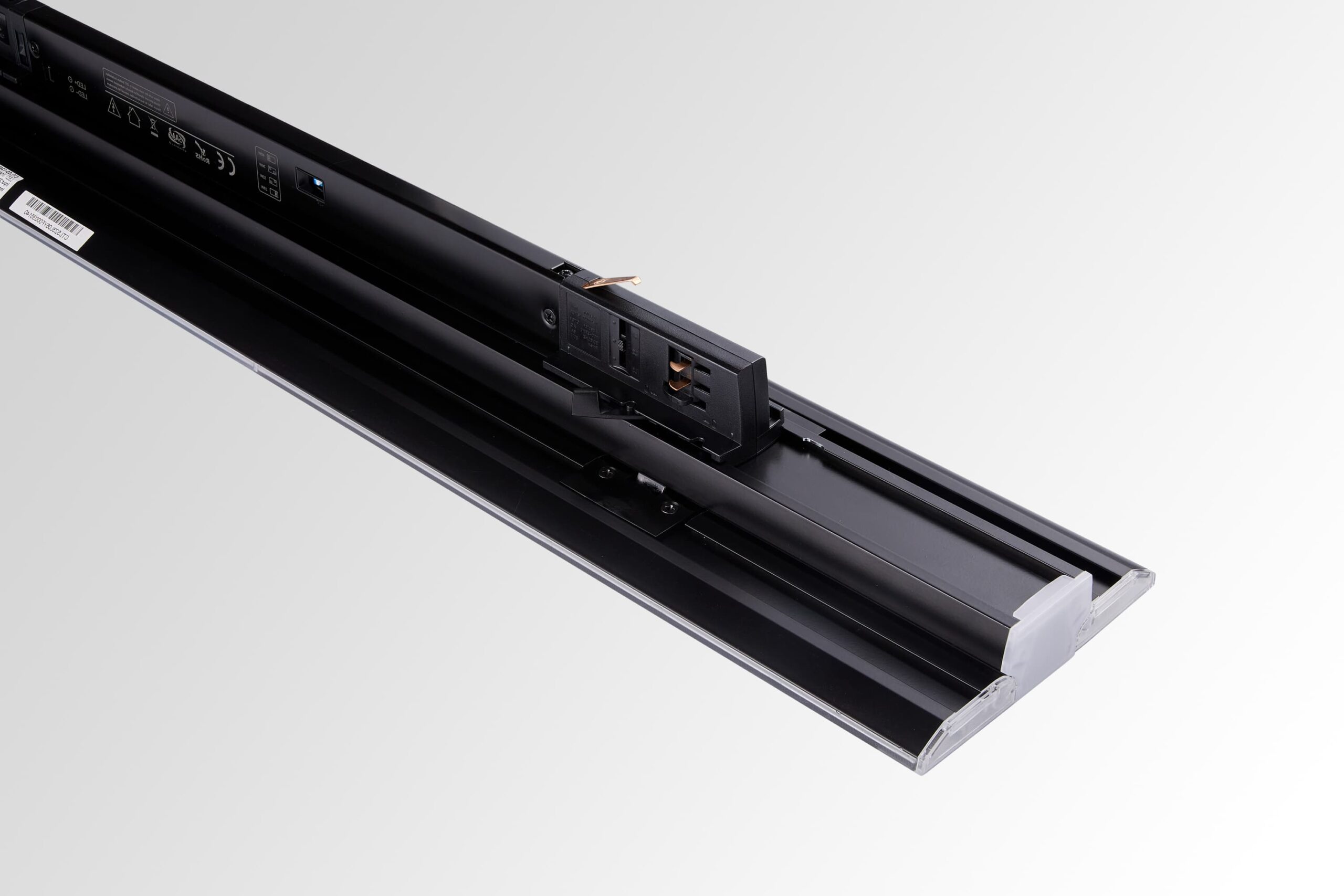

The luminaire features two tiltable side panels plus a central diffuser, with 30°×90° asymmetric optics and up to 160 lm/W high luminous efficiency. It supports four selectable power settings via DIP switch and allows flexible positioning by sliding left or right on the rail.
This results in maximum planning flexibility and significant cost savings while maintaining a clean, modern aesthetic ideal for contemporary retail lighting design.
| Code | Size (L/W/H) mm |
Power (W) |
CCT (K) |
Lumen (lm) |
Effi. (lm/W) |
PF | CRI | Beam Angle | Dimmable | IP | Energy Class | Model No. |
| 121355 | 1500/35/28 | 60/55/50/45 | 4000 | 10800 | 180 | ≥0.9 | 80 | 30°×90° | No | IP20 | B | LT858-15B-60W4K3W |
Show more ↓
Show less ↑
Optimize your building’s lighting with our complimentary Dialux EVO simulation service. Submit your DWG file (including detailed floor plans) for a customized illumination and energy efficiency analysis.
